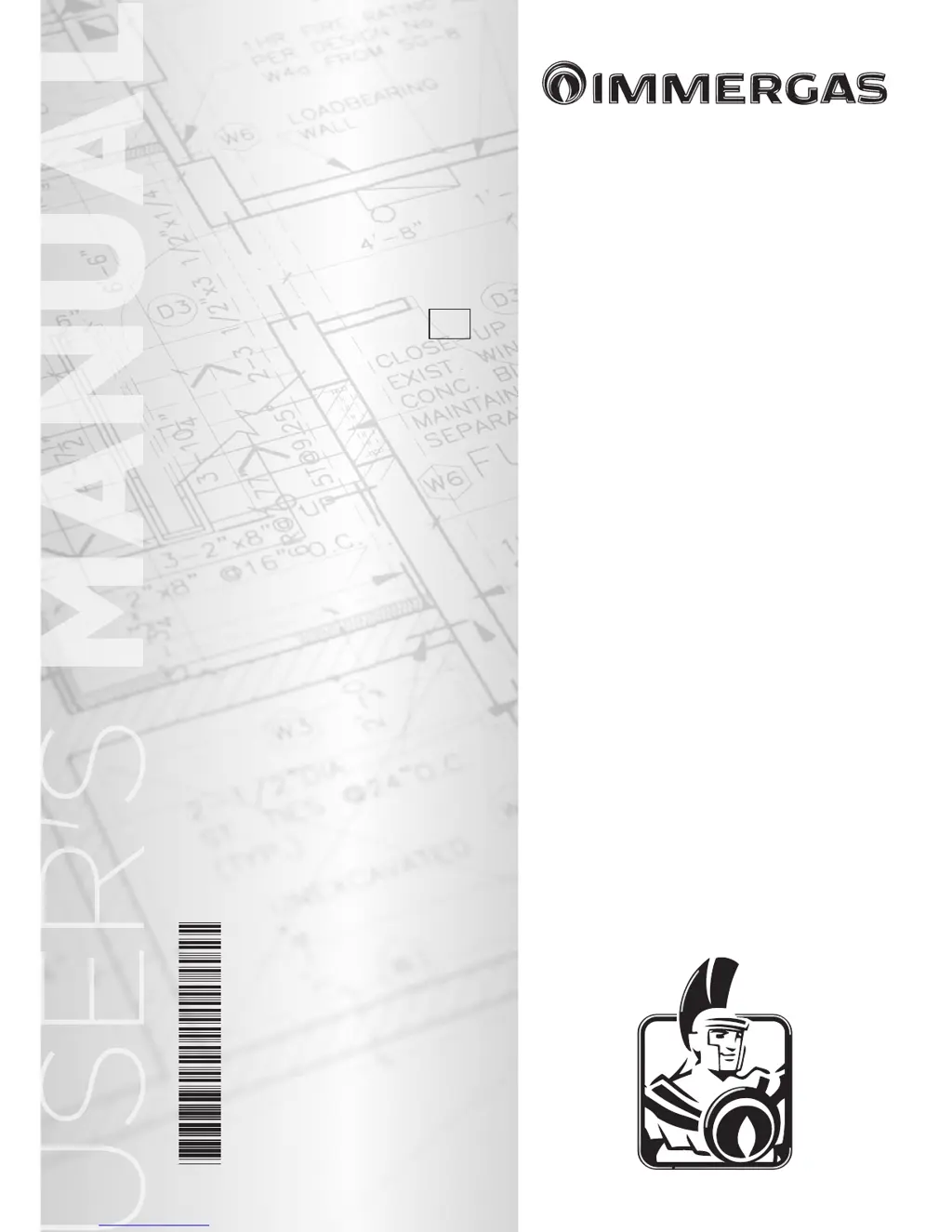

VICTRIX TERA

24 PLUS

Wall-hung condensing boilers

with sealed chamber (type C)

and fan assisted

or with open chamber (type B)

and fan assisted

which can be coupled

to separate storage tank unit

IE

Instruction booklet and

warning

Installer

User

Maintenance Technician

*1.040296ENG*

Table of Contents

Questions and Answers:

R
Richard PetersenJul 27, 2025
What to do if the safety thermostat function frequently intervenes in my Immergas VICTRIX TERA 24 PLUS Boiler?
- L
  lcarpenterJul 27, 2025
  If the safety thermostat function of your Immergas Boiler is frequently activated, it might be due to several reasons. First, ensure that the system pressure is within the established limits by checking the pressure gauge. Also, verify that the radiator valves are open to allow adequate water circulation. Finally, check the functionality of the pump to ensure it is not blocked.
M
Marc RamirezAug 1, 2025
How to stop the smell of gas from my Immergas Boiler?
- J
  James WalkerAug 1, 2025
  If you smell gas from your Immergas Boiler, it's likely due to a leakage from the gas circuit pipelines. Check the sealing efficiency of the gas intake circuit to resolve this issue.
J
James DanielsAug 6, 2025
Why does my Immergas Boiler have repeated ignition blocks?
- P
  Patrick WillisAug 6, 2025
  If your Immergas Boiler experiences repeated ignition blocks, it could be due to a couple of reasons. First, check that there is pressure in the network and that the gas adduction cock is open to ensure a gas supply. Second, the gas valve might be incorrectly calibrated, so verify the correct calibration of the gas valve.
E
Elizabeth CastroAug 11, 2025
How to fix irregular combustion or noisiness in my Immergas Boiler?
- A
  Ashley JordanAug 12, 2025
  If your Immergas Boiler exhibits irregular combustion or unusual noisiness, several factors could be at play. A dirty burner could be the cause, so cleaning the burner components is advised. Also, incorrect combustion parameters or a not correctly installed intake-exhaust terminal could be the cause. Check the correct setting of the gas valve (Off-Set setting) and correct percentage of CO2 in flue gas and ensure correct installation of the terminal.
T
Taylor Robertson MDAug 16, 2025
How to eliminate noise due to air in the system of my Immergas VICTRIX TERA 24 PLUS?
- C
  Christopher CervantesAug 16, 2025
  If you notice noise due to air in the system of your Immergas Boiler, check the opening of the special air vent valve cap. Make sure the system pressure and expansion vessel pre-charge values are within the set limits; The factory-set pressure values of the expansion vessel must be 1.0 bar, the value of system pressure must be between 1 and 1.2 bar.
E
Eddie WalkerAug 21, 2025
What to do if the heat exchanger in my Immergas VICTRIX TERA 24 PLUS Boiler is blocked?
- J
  josephrussoAug 21, 2025
  If the heat exchanger in your Immergas Boiler is blocked, it's likely due to the drain trap being blocked. Check, by means of the condensate drain cap, that there are no residues of material blocking the flow of condensate.

Immergas VICTRIX TERA 24 PLUS Specifications

General

Type	Condensing Boiler
Output Power	24 kW
Fuel Type	Natural Gas / LPG
Electrical Protection Rating	IPX5D
Operating Pressure	3 bar
NOx Class	Class 6

Summary

BOILER INSTALLATION

INSTALLATION RECOMMENDATIONS

Recommendations for safe, efficient, and comfortable installation of the boiler.

GAS CONNECTION

Guidelines for connecting the gas supply to the boiler.

ELECTRICAL CONNECTION

Details on safe electrical connection and earthing requirements.

IMMERGAS FLUE SYSTEMS

Guidance on Immergas flue systems, resistance factors, and equivalent lengths.

USE AND MAINTENANCE INSTRUCTIONS

GENERAL SAFETY WARNINGS

Important safety warnings for using the boiler.

CONTROL PANEL OVERVIEW

Explanation of the boiler's control panel buttons and indicators.

USING THE BOILER

Instructions on operating the boiler in various modes like summer, winter, and solar.

FAULT AND ANOMALY SIGNALS

Lists error codes, their causes, and troubleshooting solutions.

BOILER START-UP (INITIAL CHECK)

INITIAL COMMISSIONING AND CHECKS

Checklist for initial boiler commissioning and essential safety checks.

BOILER HYDRAULIC AND WIRING DIAGRAMS

Visual representations of the boiler's hydraulic and electrical systems.

TROUBLESHOOTING AND CALIBRATION

Guidance for common problems, conversions, and calibration procedures.

PROGRAMMING AND SPECIAL FUNCTIONS

Guide to accessing and using the PCB programming and special protected functions.
