VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU
11

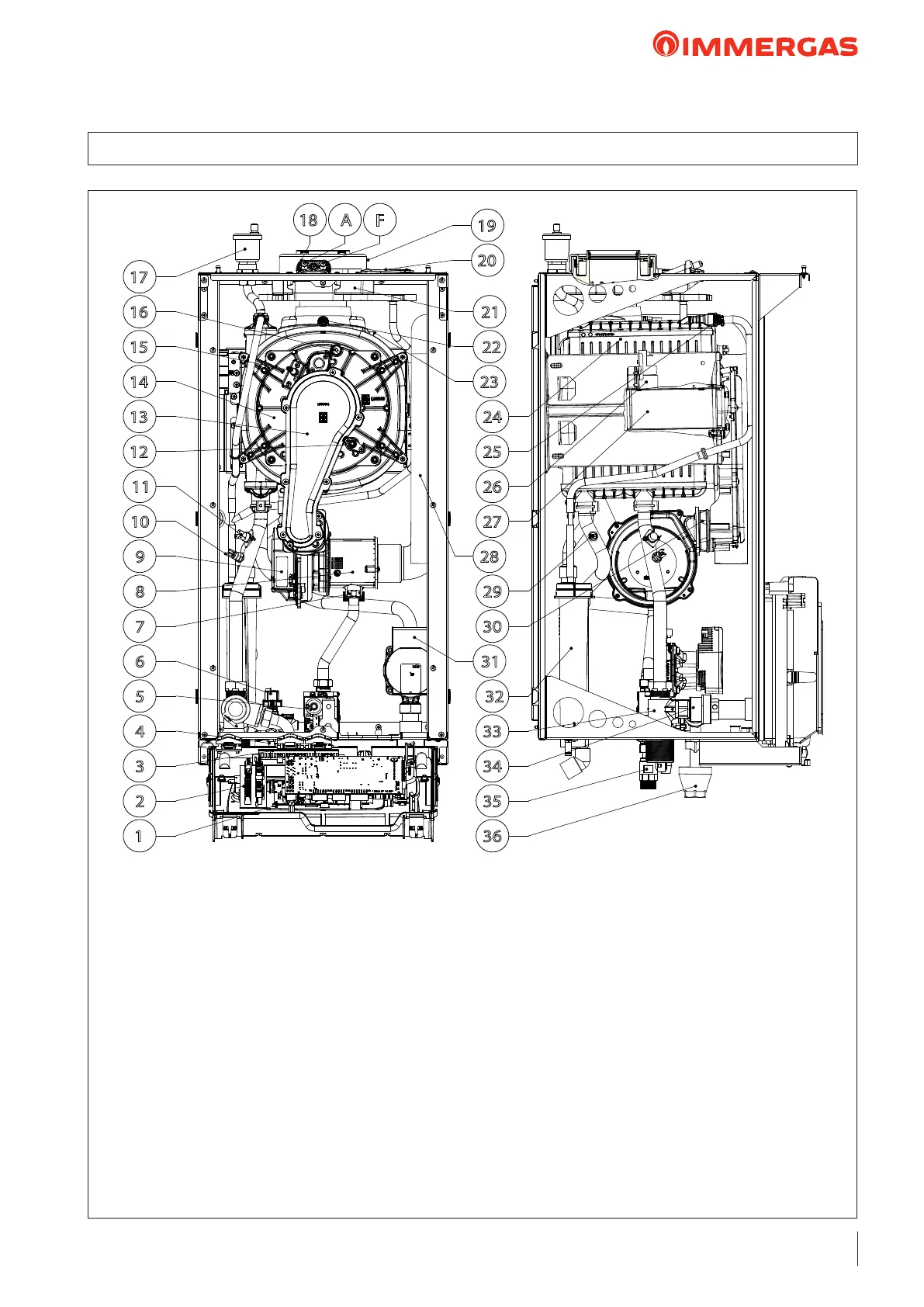

4 VICTRIX PRO V2 35  55  60  68  80 EU COMPONENTS
KEY:
1 - P.C.B.
2 - High power connection board
3 - Low power connection board
4 - Drain tting
5 - Gas valve
6 - Pressure transducer
7 - Gas nozzle
8 - Venturi
9 - Fan
10 - System ow adjustment NTC probe
11 - Overheating safety thermostat
12 - Detection electrode
13 - Gas manifold cover
14 - Gas manifold
15 - Ignition glow plug
16 - Klixon thermostat
17 - Air vent valve
18 - Sample points (air A) - (ue gases F)
19 - Concentric intake cap Ø 125
20 - Intake closing cap 80 Ø
21 - Flange with sample points
22 - Flue probe
23 - Heat exchanger safety thermofuse
24 - Condensation module
25 - Condensation module air vent valve
26 - Igniter
27 - Burner
28 - Air intake pipe
29 - System return adjustment NTC probe
30 - Fan adapter
31 - Pump
32 - Condensate siphon
33 - Flow manifold
34 - 4 bar safety valve
35 - Gas cock
36 - Draining funnel
20
17
21
22
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
A F18
23
24
25
26
27
28
30
29
31
34
33
32
35
36
19
