VICTRIX PRO V2 100 - 120 - 150 EU
12

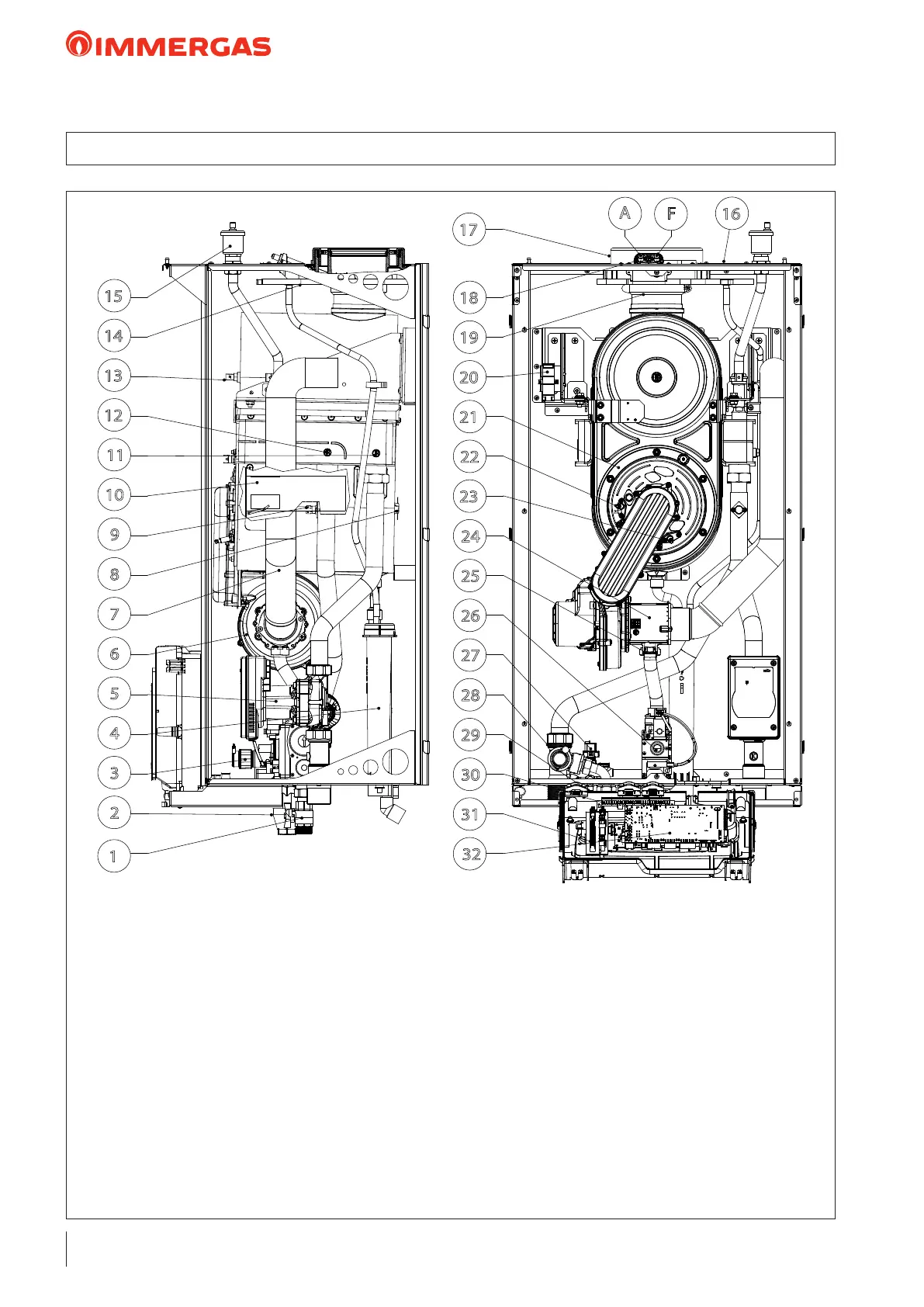

4.1 VICTRIX PRO V2 100  120 EU COMPONENTS
KEY:
1 - Gas cock
2 - Draining funnel
3 - 5.4 bar safety valve
4 - Condensate siphon
5 - Pump
6 - Fan
7 - Air intake pipe
8 - Heat exchanger safety thermofuse
9 - Overheating safety thermostat
10 - Burner
11 - System return adjustment NTC probe
12 - System ow adjustment NTC probe
13 - Flue probe with thermofuse
14 - Flange with sample points
15 - Automatic air vent valve
16 - Intake closing cap 100 Ø
17 - Concentric intake cap Ø 160
18 - Sample points (air A) - (ue gases F)
19 - Flange connection module-ue hood
20 - Igniter
21 - Combustion group
22 - Detection electrode
23 - Ignition glow plug
24 - Venturi
25 - Gas nozzle
26 - Gas valve
27 - Pressure transducer
28 - Flow hydraulic unit
29 - Drain tting
30 - Low power connection board
31 - High power connection board
32 - P.C.B.
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
18
32
31
28
29
30
27
25
26
24
23
22
21
20
19
17
F
A
16
