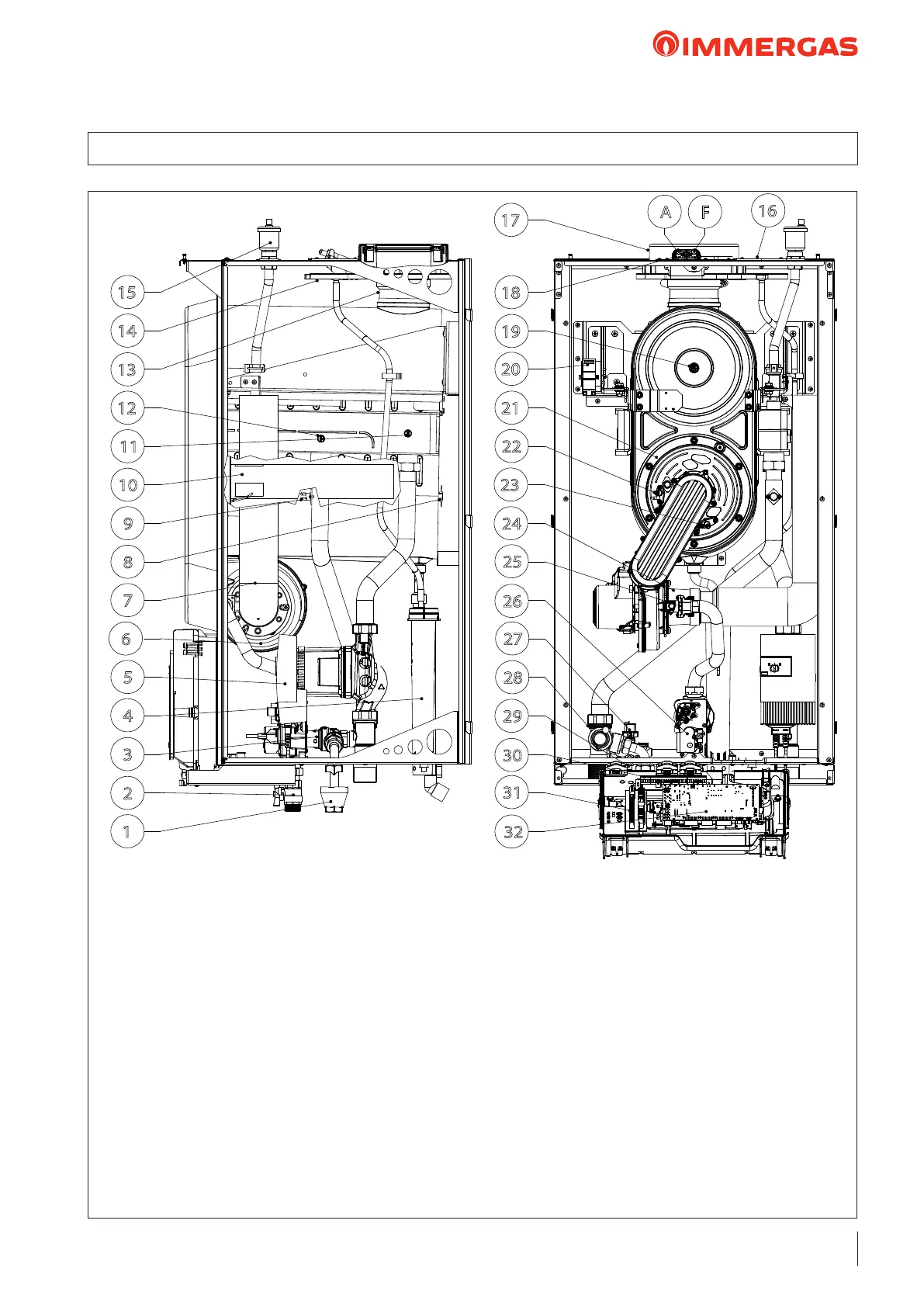

4.2 VICTRIX V2 PRO 150 EU COMPONENTS
KEY:
1 - Draining funnel
2 - Gas cock
3 - 5.4 bar safety valve
4 - Condensate siphon
5 - Pump
6 - Fan
7 - Air intake pipe
8 - Heat exchanger safety thermofuse
9 - Overheating safety thermostat
10 - Burner
11 - System return adjustment NTC probe
12 - System ow adjustment NTC probe
13 - Flange connection module-ue hood
14 - Flange with sample points
15 - Automatic air vent valve
16 - Intake closing cap 100 Ø
17 - Concentric intake cap Ø 160
18 - Sample points (air A) - (ue gases F)
19 - Flue probe with thermofuse
20 - Igniter
21 - Combustion group
22 - Detection electrode
23 - Ignition glow plug
24 - Venturi
25 - Gas nozzle
26 - Gas valve
27 - Pressure transducer
28 - Flow hydraulic unit
29 - Drain tting
30 - Low power connection board
31 - High power connection board
32 - P.C.B.
