VICTRIX PRO V2 180 EU
14

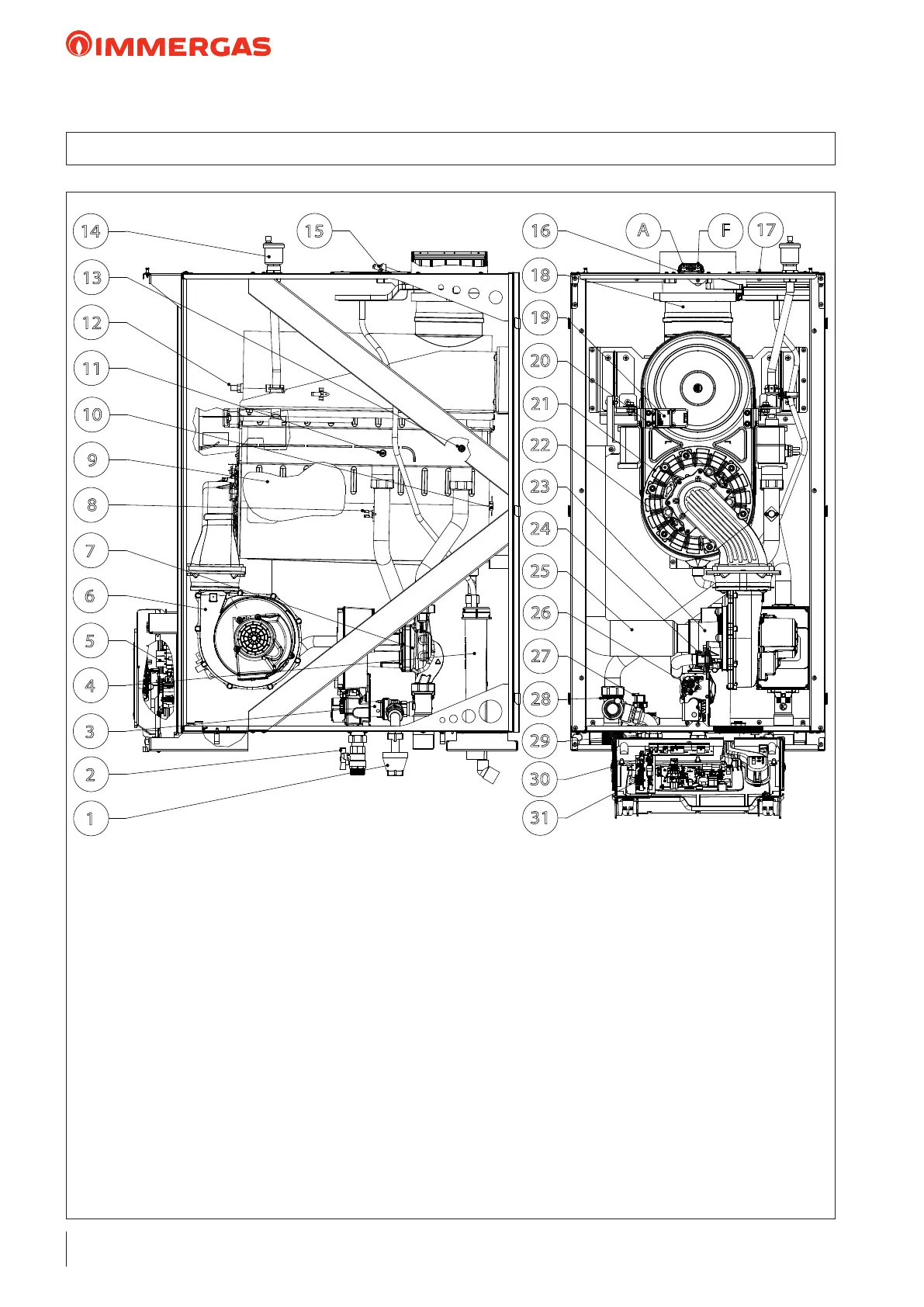

4.3 VICTRIX PRO V2 180 EU COMPONENTS
KEY:
1 - Draining funnel
2 - Gas cock
3 - 5.4 bar safety valve
4 - Condensate siphon
5 - P.C.B.
6 - Fan
7 - Pump
8 - Overheating safety thermostat
9 - Burner
10 - Heat exchanger safety thermofuse
11 - System ow adjustment NTC probe
12 - Flue probe with thermofuse
13 - System return adjustment NTC probe
14 - Automatic air vent valve
15 - Flange with sample points
16 - Sample points (air A) - (ue gases F)
17 - Intake closing cap 160 Ø
18 - Flange connection module-ue hood
19 - Igniter
20 - Ignition glow plug
21 - Combustion group
22 - Detection electrode
23 - Venturi
24 - Gas nozzle
25 - Air intake pipe
26 - Gas valve
27 - Pressure transducer
28 - Flow hydraulic unit
29 - Drain tting
30 - Low power connection board
31 - High power connection board
1
2
3
4
5
7
6
14
15
12
13
11
9
8
10
31
30
29
16
17
18
19
20
21
22
23
24
25
26
27
28
A
F
