VICTRIX PRO V2 EU
130
e zone manager (not traditional On/O) functions only
when coupled wit the cascade regulator and allows regulation
of the room temperature of one of the zones into which the
plant is divided (both in individual and cascade installation).
Also allows to adapt the system ow temperature to the actual
needs of the room being heated, in order to obtain the desired
room temperature with extreme precision.
e settings of the climatic zone of reference, done beforehand
on the cascade and zone regulator, can be modied.
e zone manager is powered directly by the cascade and zone
regulator via 2 BUS data cables.

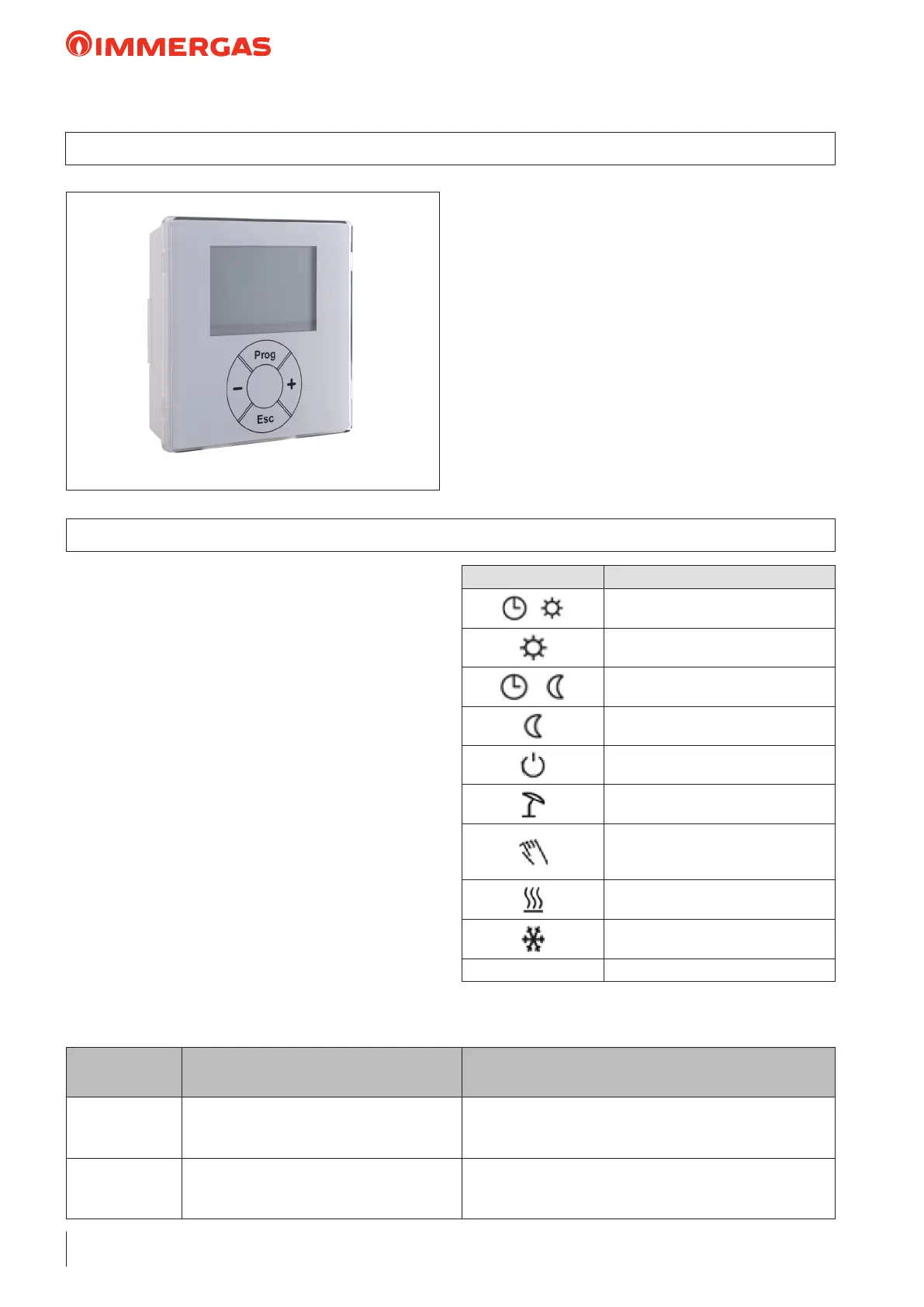

31 ZONE MANAGER KIT CODE 3.034120
31.1 FEATURES
Dimensions (H x L x P) mm 82 x 82 x 26
e connection to the cascade and zone regulator takes place
with 2 BUS data cables with maximum length of 100 metres
and allows to:
• manage a maximum of one zone;
• set two room temperature values, one for day (comfort
temperature) and one for night (reduced temperature);
• select the operation mode for heating the specic zone:
- comfort temperature functioning,
- reduced temperature functioning,
- adjustable anti-freeze temperature functioning;
• manage the boiler ow temperature depending on the ex-
ternal temperature and the room temperature with setting
of the climatic curve;
• obtain information regarding the system:
- system temperature,
- operating mode,
- counter data,
- timer program,
- pump operation status,
- operation and values of the variable inputs;
• set the operation parameters:
- functioning times,
- system mode,
- date and time;
Class
Contribution to room central heating
seasonal energy eciency
Combinations
VI +4%
VICTRIX PRO V2 EU cascade and zone regulator coupled
to VICTRIX PRO V2 EU zone manager kit and to external
temperature probe
VIII +5%
VICTRIX PRO V2 EU cascade and zone regulator coupled
to number 3 VICTRIX PRO V2 EU zone manager kit
Display Description
Heating in automatic mode, at comfort
or economy temperature.
Central heating (Party/Boost/Shower).
Automatic mode stop, based on stop
temperature.
Stop (start)
Standby mode (standby/holiday), no ad-
justment of the room setpoint possible.
Controlled summer switch o by weath-
er conditions.
Temporary manual adjustment of room
setpoint in automatic mode (magic
wand).
Central heating demand active, as long
as a power supply was selected.
Cooling demand active, as long as a
power supply was selected.
Error Error message.
