VICTRIX PRO V2 180 EU
25

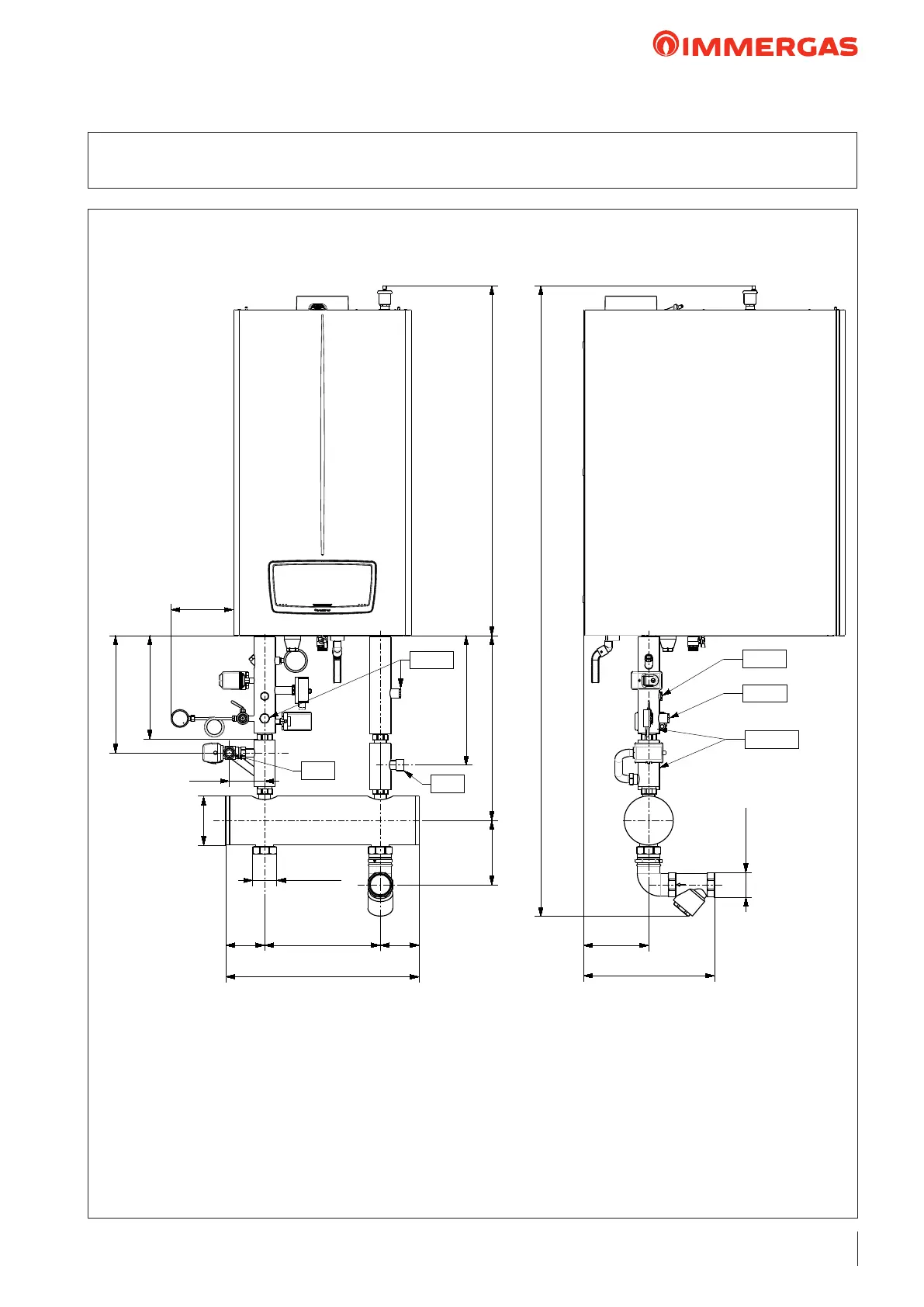

8.2 HYDRAULIC KIT DIMENSIONS AND CONNECTIONS OPTIONAL
WITH VICTRIX PRO V2 180 EU SINGLE BOILER
G 3/4"
G 1 1/2"
G 1"
M
R
G 3/4"
G 1/2"
G 1"
1179
623.5
436.5
216.5
= =390
652
G 2 1/2"
DN100
119
395.5
210
348.5
G 2 1/2"
220
442
2125
