KEY:
1 - Air vent valve
2 - Shut-o cock
3 - Probe tting (not supplied)
4 - Hydraulic separator (42 litre
capacity)
5 - Draining cock
KEY:
1 - Air vent valve
2 - Shut-o cock

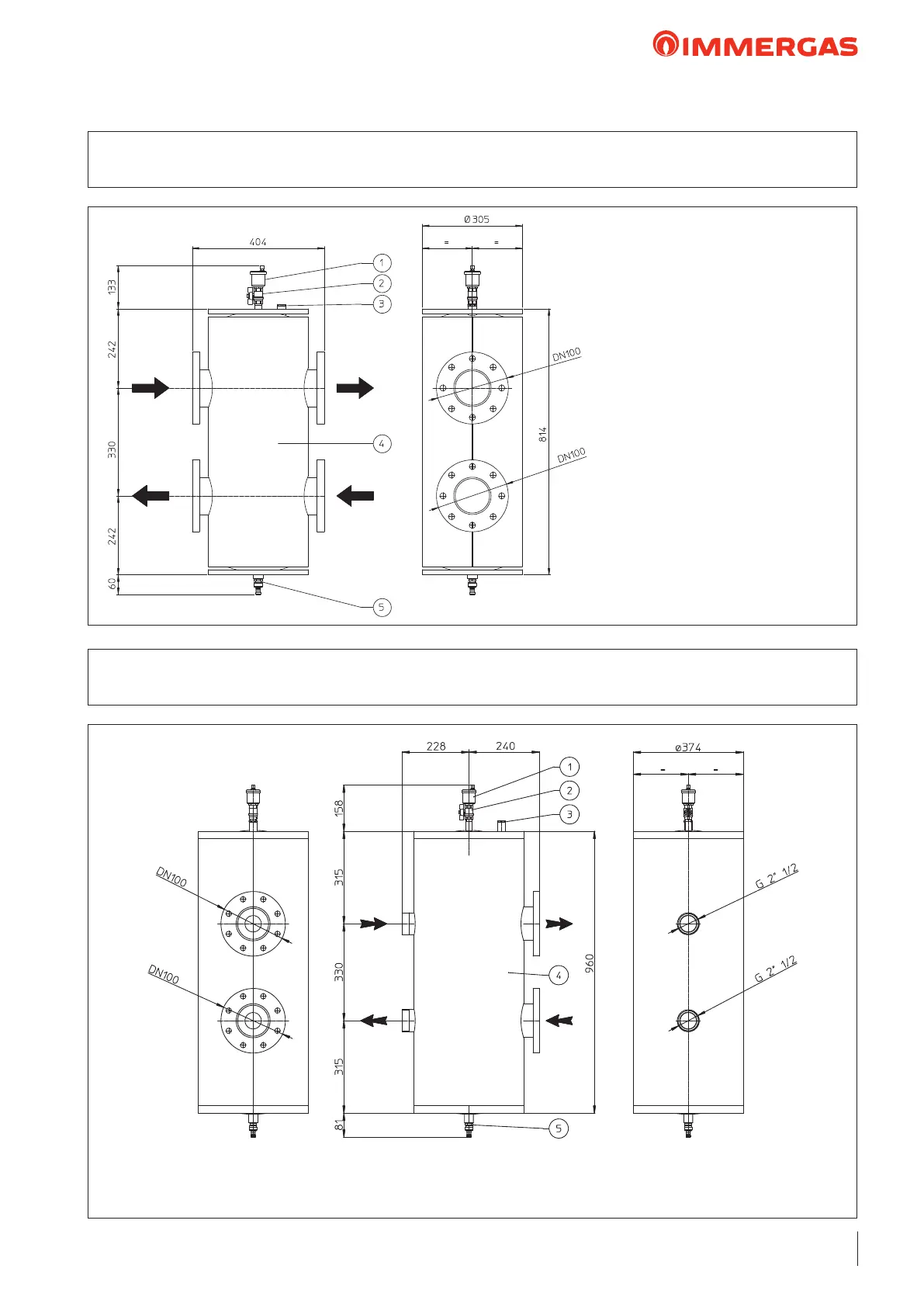

19.3 HYDRAULIC SEPARATOR KIT FOR MODULES IN SET CONFIGURATION UP TO
350 kW FLANGED CONNECTIONS DN 100 CODE: 3.023965
19.4 HYDRAULIC SEPARATOR KIT FOR MODULE IN SET CONFIGURATION UP TO
400 kW G 2 1/2"FLANGED CONNECTIONS  DN 100 CODE: 3.021378
3 - Probe tting (not supplied)
4 - Hydraulic separator (69 litre capacity)
5 - Draining cock
