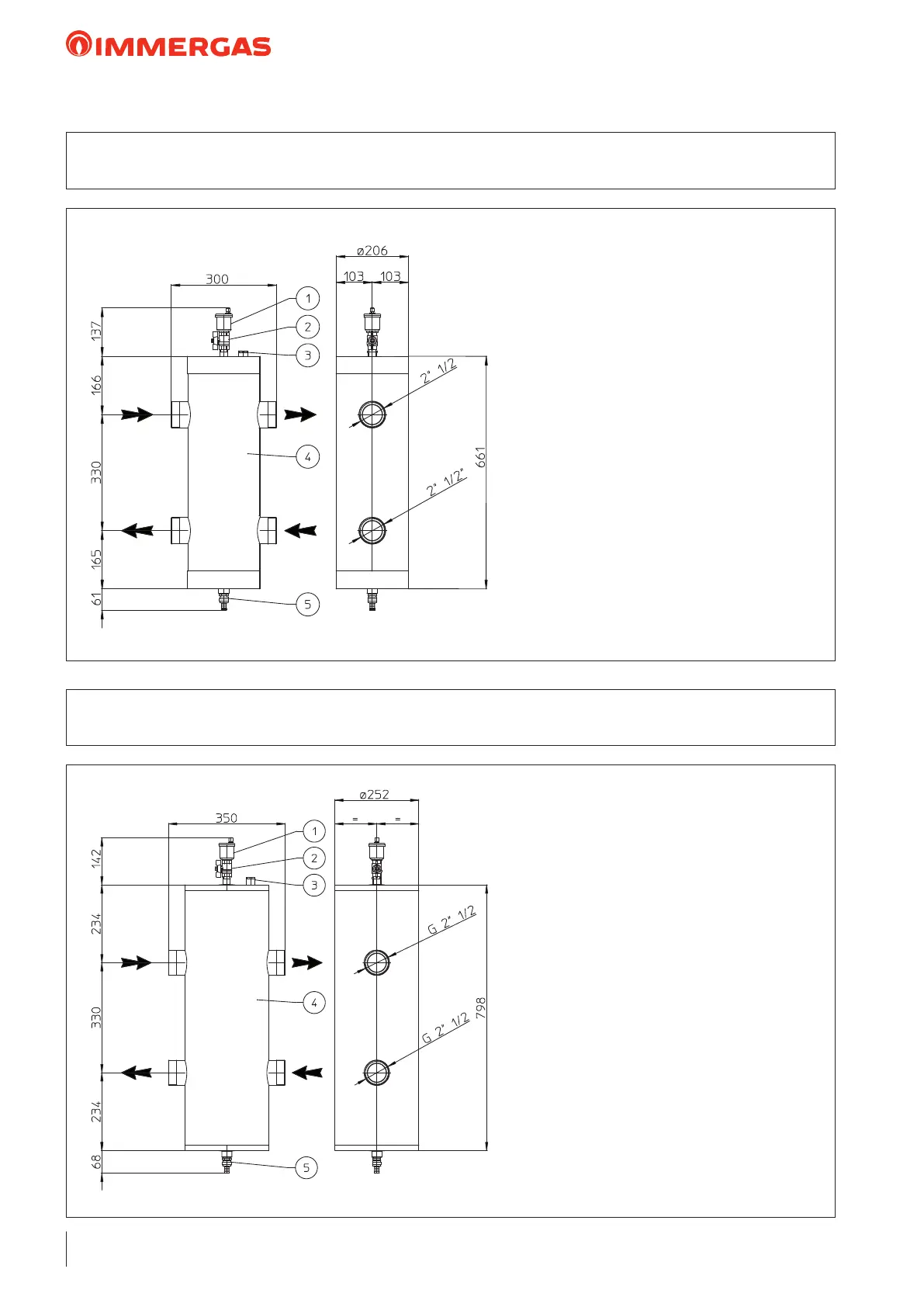

KEY:
1 - Air vent valve
2 - Shut-o cock
3 - Probe tting (not supplied)
4 - Hydraulic separator (12 litre
capacity)
5 - Draining cock
KEY:
1 - Air vent valve
2 - Shut-o cock
3 - Probe tting (not supplied)
4 - Hydraulic separator (25 litre
capacity)
5 - Draining cock
19.1 HYDRAULIC SEPARATOR KIT FOR MODULES UP TO 100 kW G 2 1/2"
THREADED CONNECTIONS CODE: 3.020839
19.2 HYDRAULIC SEPARATOR KIT FOR MODULES IN SET CONFIGURATION UP TO
200 kW G 2 1/2" THREADED CONNECTIONS CODE: 3.021377
