VICTRIX PRO V2 100 - 120 - 150 -180 EU
58
R
M
1
2
17
17
18
18
19
19
6
7
8
9
9
10
12
13
14
12
16
3
4
5
15
11
20
KEY:
1 - 4 HH screws 8x80
2 - 4 Plugs 12x60
3 - Brass plug Kramer G½" male
4 - O.R. 18x2 Nitrile 70 SH
5 - Automatic air vent valve ½" mini
6 - 100 Plate heat exchanger threaded
connections Ø 2" ½
7 - Flow manifold
8 - Return manifold
9 - 2 Gaskets
10 - Heat exchanger supporting bracket
11 - 4 Gaskets 75x55x2 mm in Fasit So RG
12 - 2 Gaskets 18.5x11.5x2 AFM 34/2
13 - Cock G½" MF with bar hold
14 - Hose union tting type Roma fem. G½" X15
15 - 3 Nuts M12
16 - Cap ½" F hex key 23 mm
17 - 16 HH screws M16x65
18 - 16 Hex nuts M16
19 - 16 Washers 17x30x3
20 - Modules in set conguration

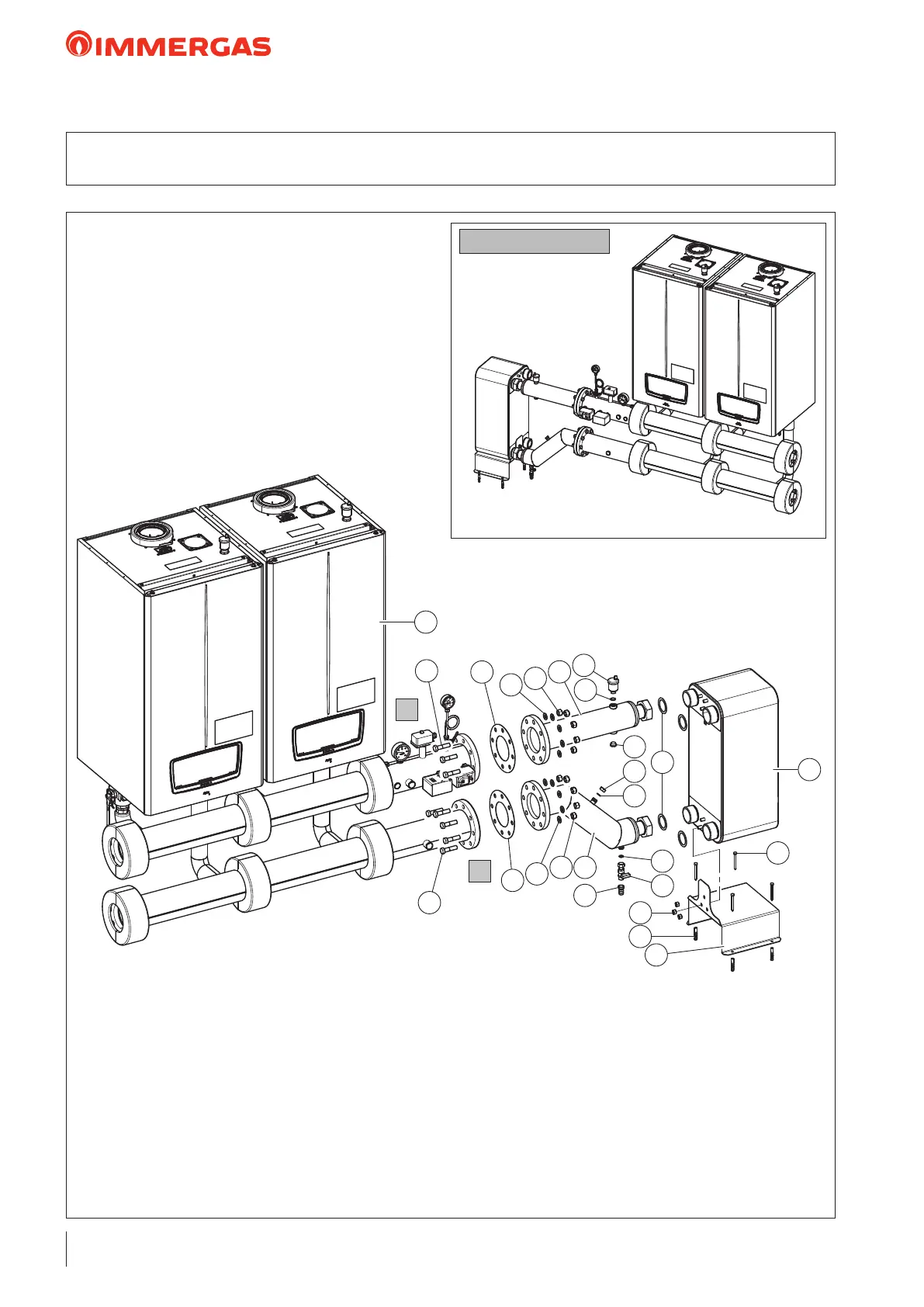

20.3 INSTALLATION OF RH/LH PLATE HEAT EXCHANGER KIT ON VICTRIX PRO V2
100  120  150  180 EU MODULES IN SET CONFIGURATION CODE: 3.033679
LEFT OUTLET
