VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU
65
KEY:
1 - 4 HH screws 8x80
2 - 4 Plugs 12x60
3 - 24 HH screws M16X65
4 - 24 Hex nuts M16
5 - 24 Washers 17x30x3
6 - Magnetic sludge remover
7 - Return manifold
8 - Flow manifold
9 - 3 Graphite gaskets
10 - Sludge remover support
11 - 2 Gaskets

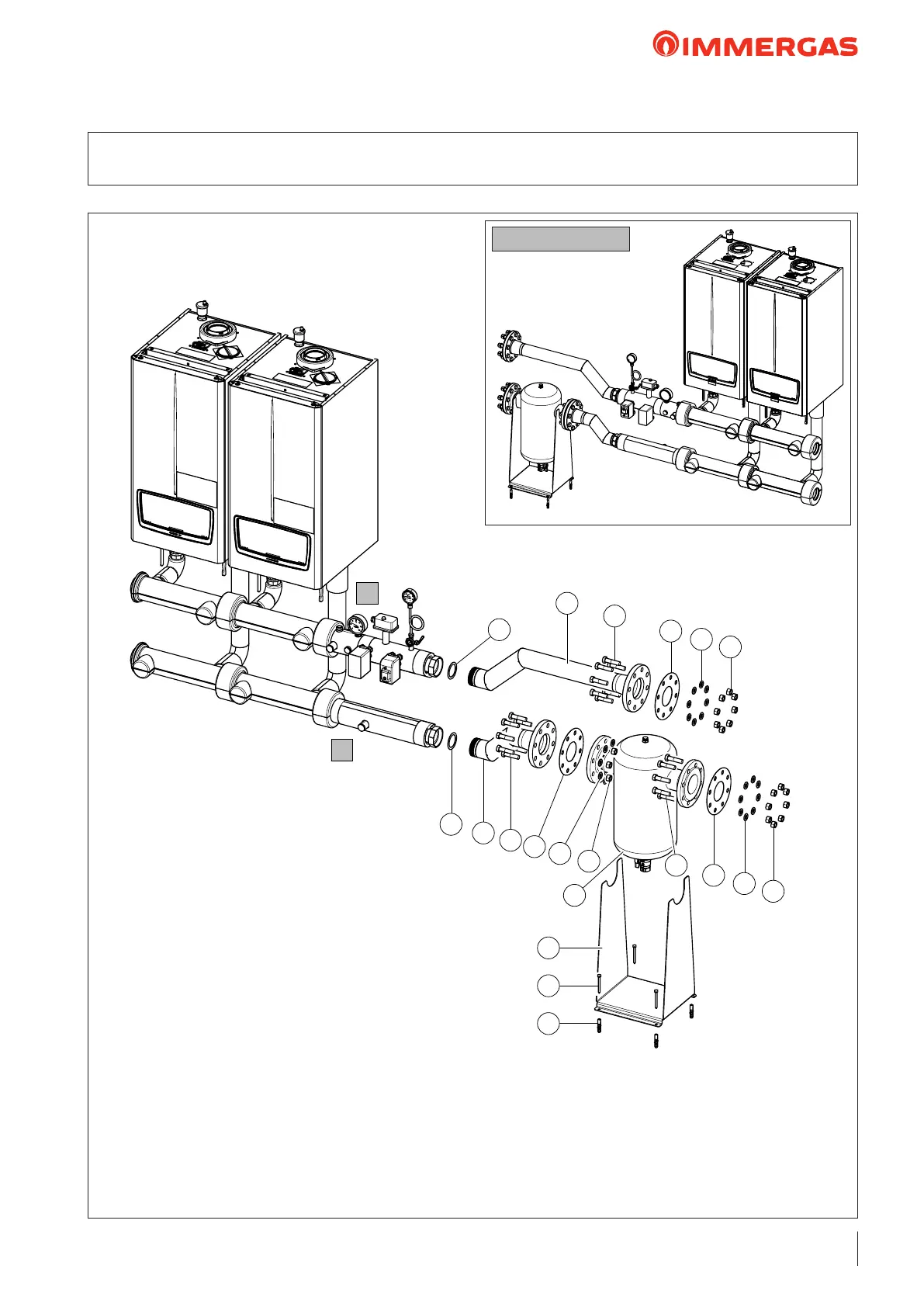

21.1 INSTALLATION OF RH/LH SLUDGE REMOVER KIT ON VICTRIX PRO V2
35  55  60  68  80 EU MODULES IN SET CONFIGURATION CODE: 3.033674
3
3
6
1
2
3
4
4
4
5
5
5
7
8
9
9
9
10
11
11
R
M
LEFT OUTLET
