VICTRIX PRO V2 100 - 120 - 150 -180 EU
66
1
2
3
3
3
3
3
4
5
4
5
4
5
9
4
4
5
6
8
9
9
5
9
7
9
10
R
M

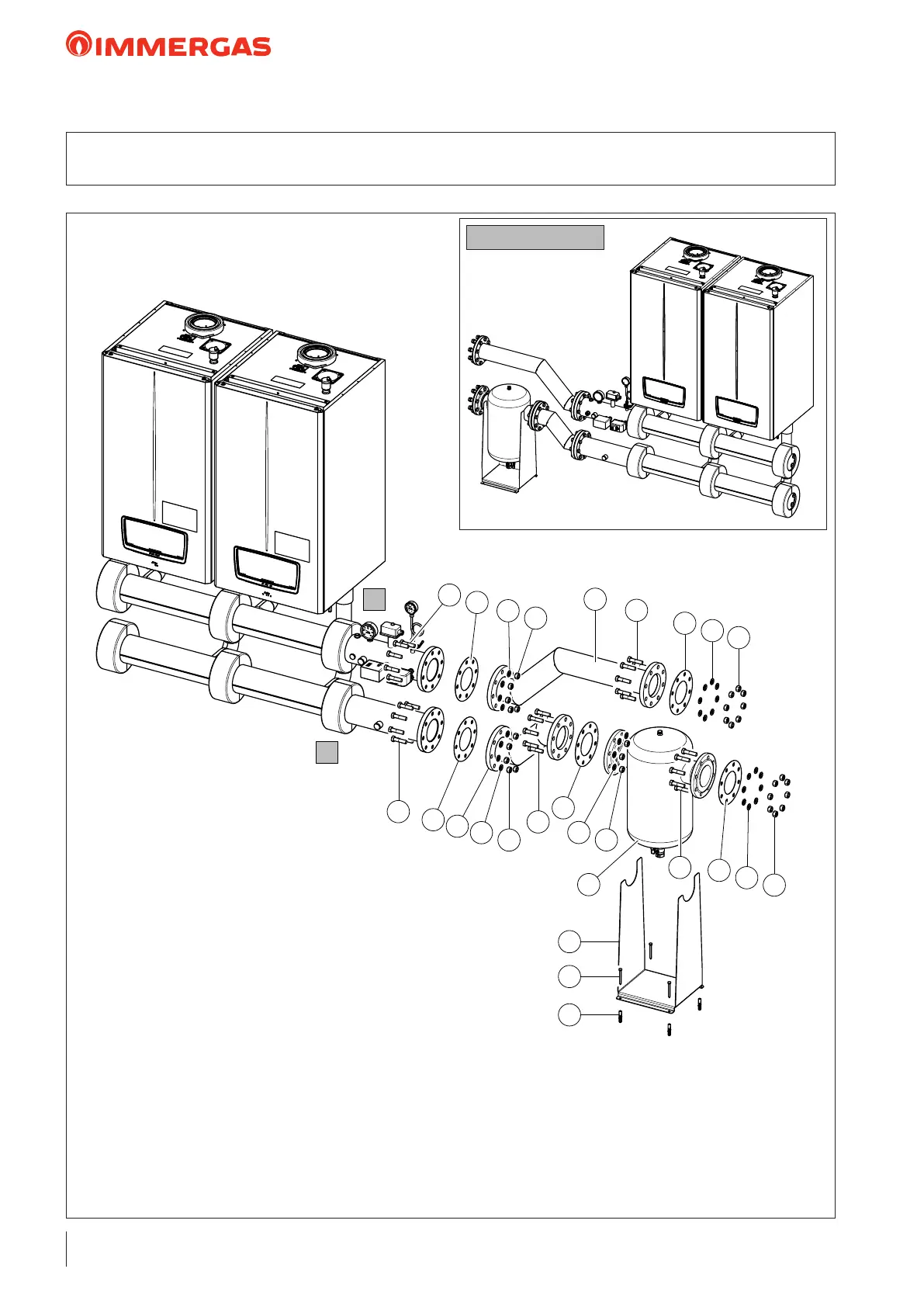

21.2 INSTALLATION OF RH/LH SLUDGE REMOVER KIT ON VICTRIX PRO V2
100  120  150  180 EU MODULES IN SET CONFIGURATION CODE: 3.033675
LEFT OUTLET
KEY:
1 - 4 HH screws 8x80
2 - 4 Plugs 12x60
3 - 40 HH screws M16X65
4 - 40 Hex nuts M16
5 - 40 Washers 17x30x3
6 - Magnetic sludge remover
7 - Return manifold
8 - Flow manifold
9 - 5 Graphite gaskets
10 - Sludge remover support
