VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU
7

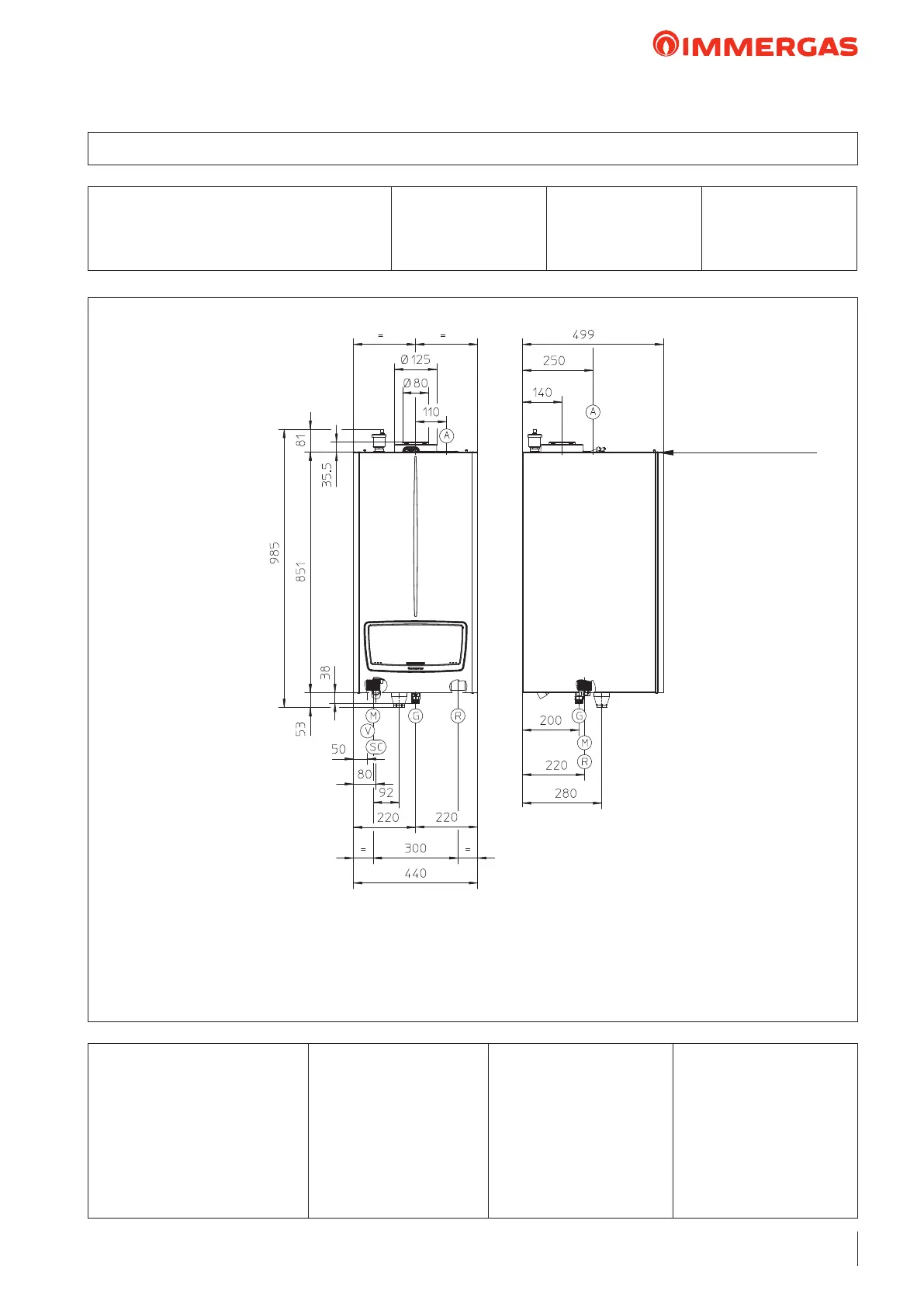

3 VICTRIX PRO V2 35  55  60  68  80 EU MAIN DIMENSIONS
Model
VICTRIX PRO V2 35 EU
VICTRIX PRO V2 55 EU
VICTRIX PRO V2 60 EU
VICTRIX PRO V2 68 EU
VICTRIX PRO V2 80 EU
System ow
M
1" 1/2
1" 1/2
1" 1/2
1" 1/2
1" 1/2
System return
R
1" 1/2
1" 1/2
1" 1/2
1" 1/2
1" 1/2
Gas Supply
G
3/4"
3/4"
3/4"
3/4"
3/4"
Model
VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU
Height mm
851 (985)
Width mm
440
Depth mm
499
SC = Condensate drain Ø 25 mm
Cover upper line
