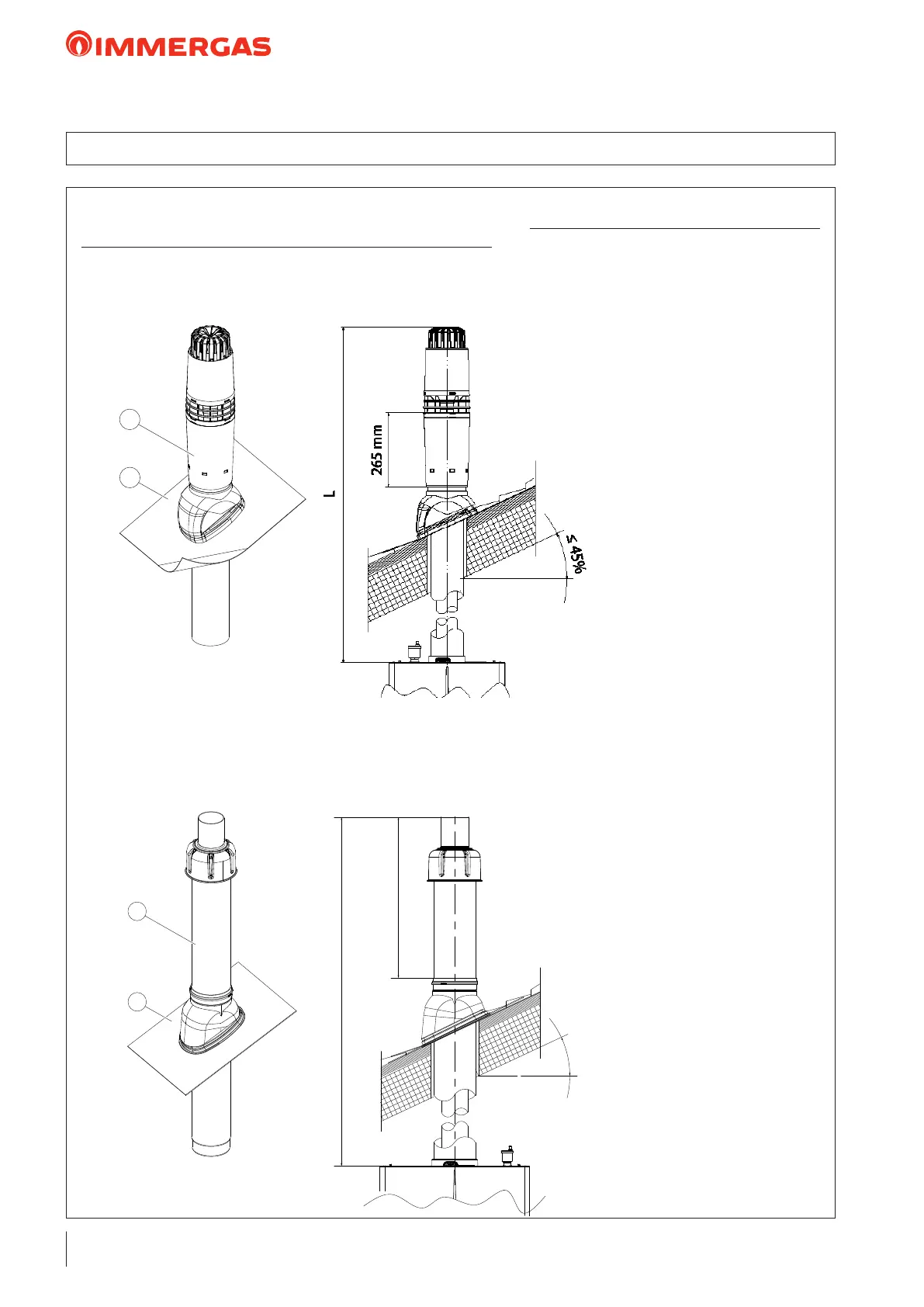

24.3 VERTICAL CONCENTRIC KIT
2
1
800
L
≤
45%
Key:
1 - n. 1 aluminium valley gutter Ø 80 or Ø 110
2 - n. 1 concentric intake/exhaust terminal Ø 80/125 or Ø 110/160
Ø 80/125 VERTICAL CONCENTRIC
KIT CODE: 3.033786
Models:
VICTRIX PRO V2 35 EU
VICTRIX PRO V2 55 EU
VICTRIX PRO V2 60 EU
VICTRIX PRO V2 68 EU
VICTRIX PRO V2 80 EU
Ø 110/160 VERTICAL CONCENTRIC
KIT CODE: 3.033790
Models:
VICTRIX PRO V2 100 EU
VICTRIX PRO V2 120 EU
VICTRIX PRO V2 150 EU
To calculate the length of the ue, simply add the corresponding “length equivalent to 1 m of pipe” value for each component
to be used until the maximum allowed length for each product is reached. ese data are provided in the specic technical
documentation supplied with each “Use and maintenance booklet”.
e maximum length that can be travelled"L" are displayed in the summary tables on pages 88 and 89.
