24.8 HORIZONTAL CHIMNEY FLUE EXHAUST KIT
FLUE EXHAUST KIT
Ø 80  CODE: 3.015254
Models:
VICTRIX PRO V2 35 EU
VICTRIX PRO V2 55 EU
VICTRIX PRO V2 60 EU
VICTRIX PRO V2 68 EU
VICTRIX PRO V2 80 EU
To calculate the length of the ue, simply add the corresponding “length equivalent to 1 m of pipe” value for each component
to be used until the maximum allowed length for each product is reached. ese data are provided in the specic technical
documentation supplied with each “Use and maintenance booklet”.
e maximum length that can be travelled"L" are displayed in the summary tables on pages 88 and 89.
X = Minimum gradient 5%
Key:

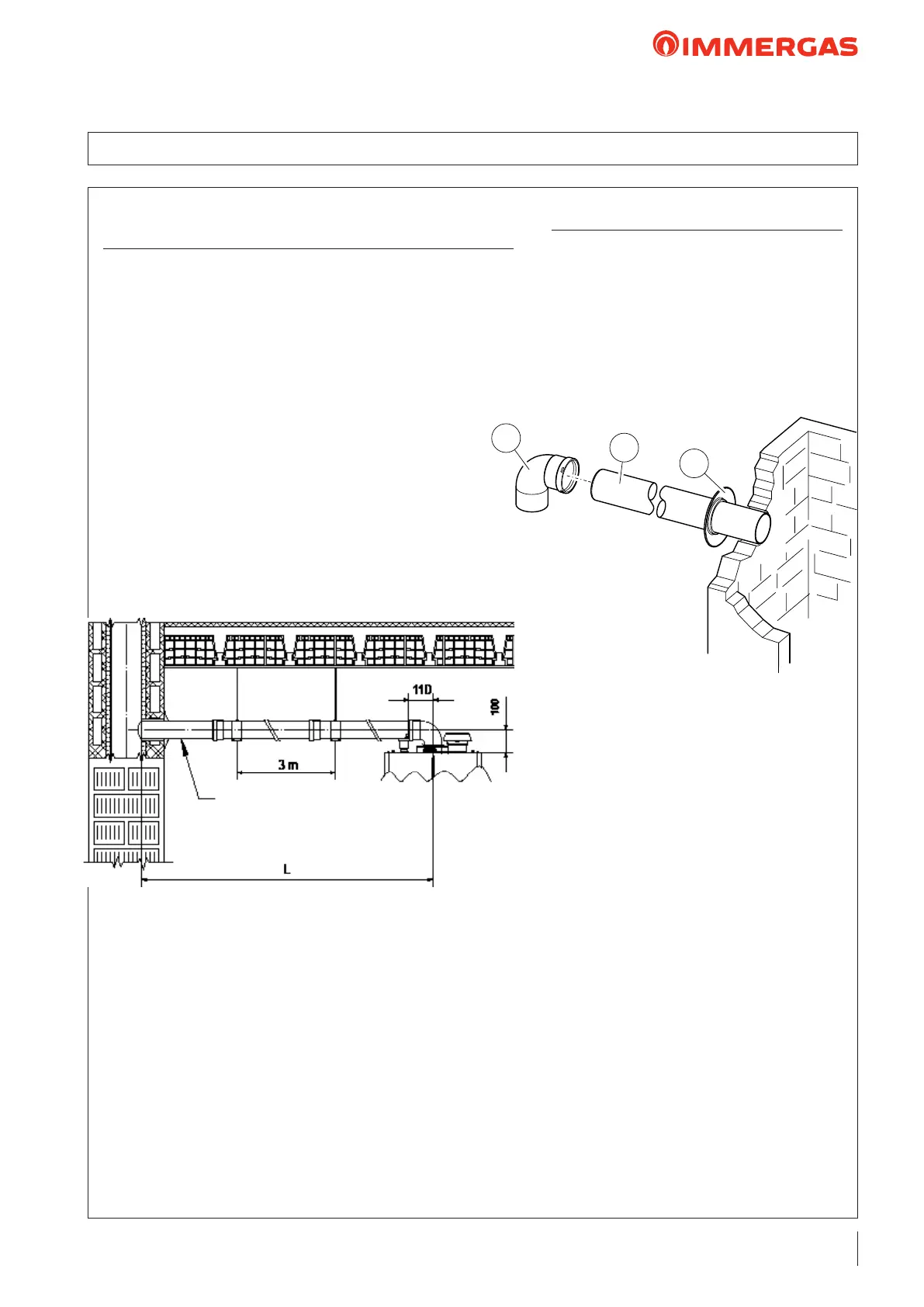

1 - n. 1 bend 90° Ø 80
2 - n. 1 drain pipe Ø 80
3 - n. 1 internal silicone wall sealing plate
