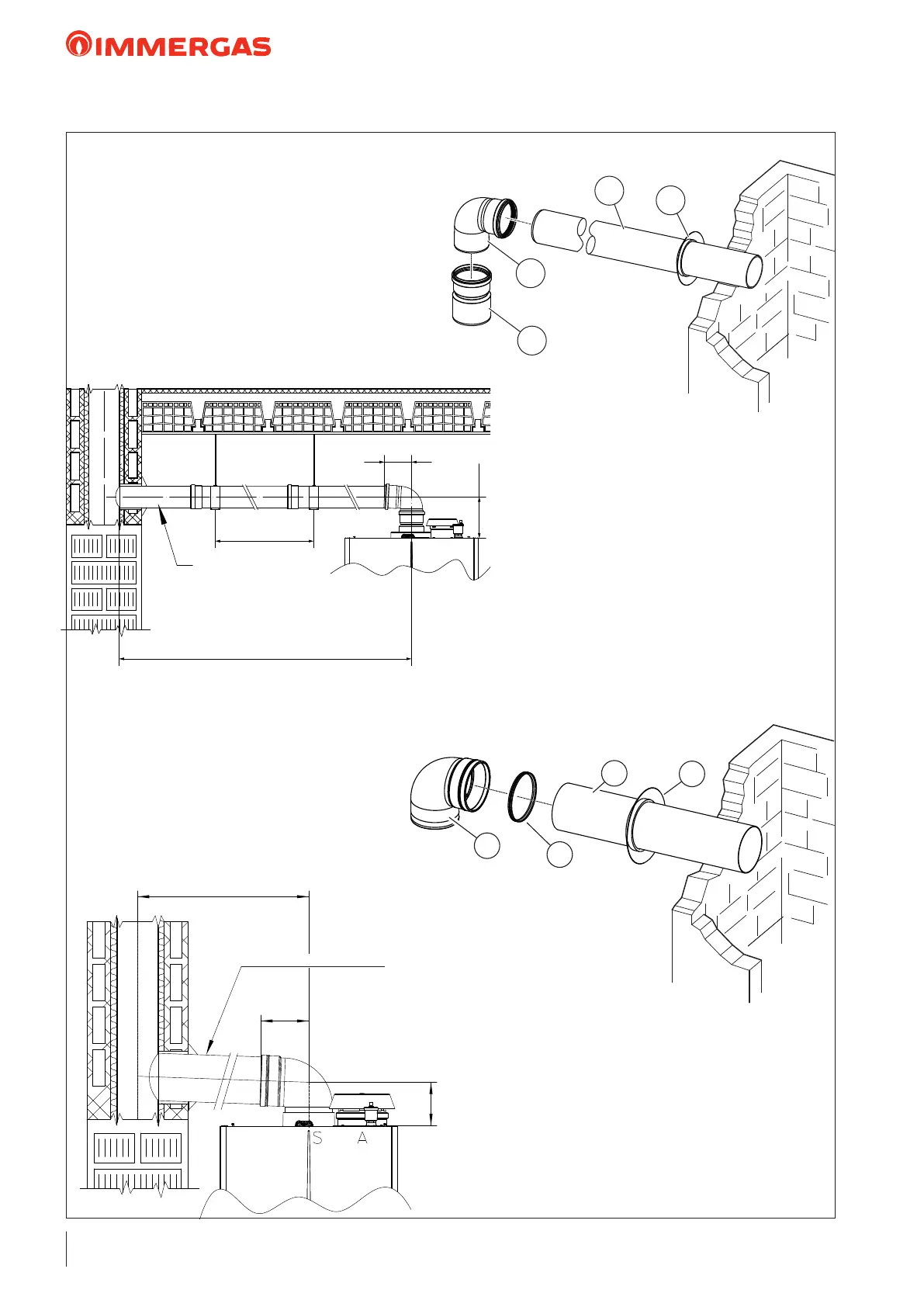

FLUE EXHAUST KIT
Ø 160  CODE: 3.034556
Model:
VICTRIX PRO V2 180 EU
FLUE EXHAUST KIT
Ø 100  CODE: 3.032715
Models:
VICTRIX PRO V2 100 EU
VICTRIX PRO V2 120 EU
VICTRIX PRO V2 150 EU
1
2
3
4
X
120
185
3 m
L
X = Pendenza minima 5%
Key:
1 - n. 1 bend 90° Ø 160
2 - n. 1 gasket
3 - n. 1 drain pipe Ø 160
4 - n. 1 internal silicone wall sealing plate
Key:
1 - n. 1 reduction Ø 110 - Ø 100
2 - n. 1 bend 90° Ø 100
3 - n. 1 drain pipe Ø 100
4 - n. 1 internal silicone wall sealing plate
1
2
3
4
L
162
147
X
X = Pendenza minima 5%
