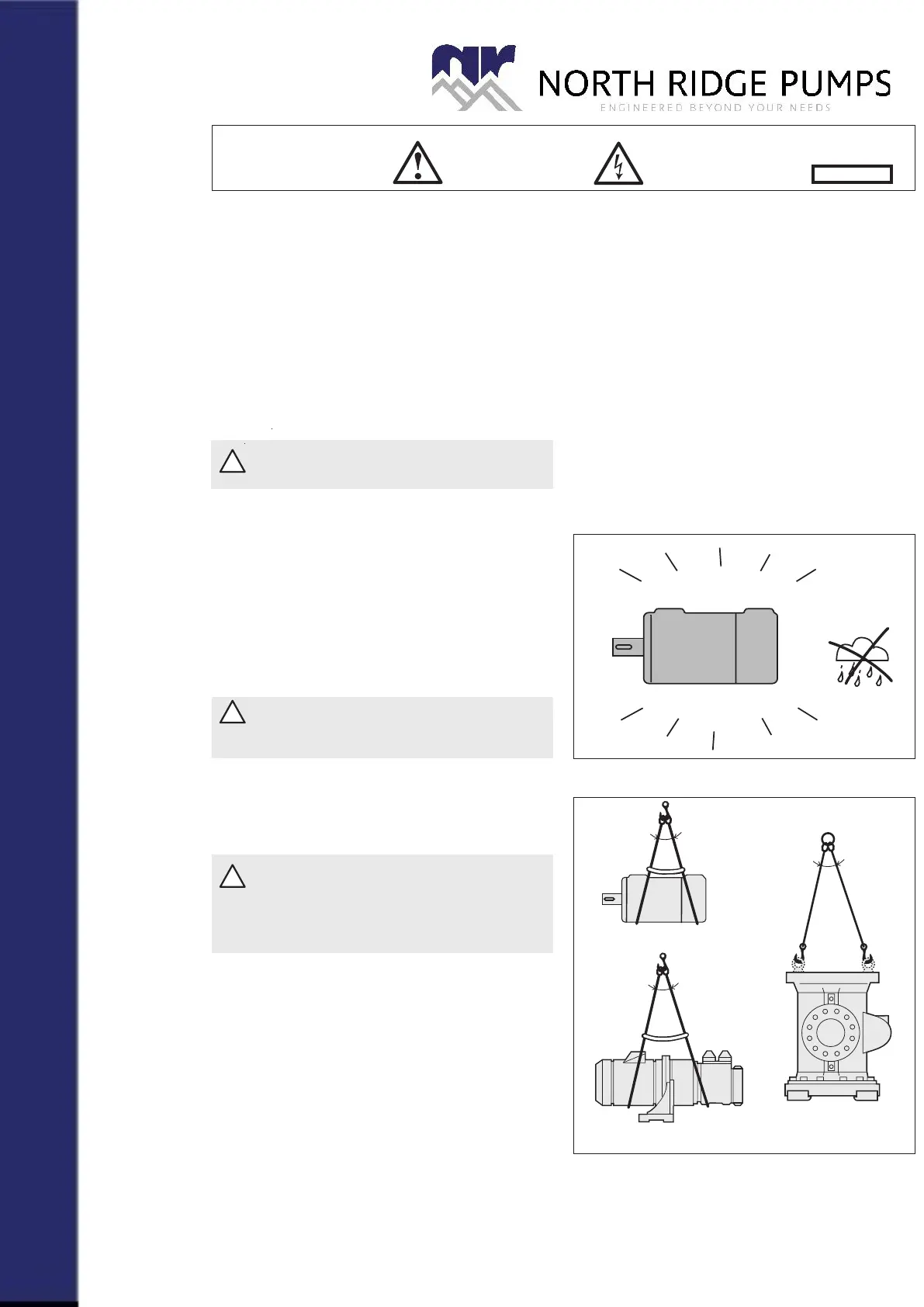

IMO ACE3 Series - Installation; Transport and storage; Lifting of pump

Fig. 2 Lifting of pump
max 90°
min 60°
PD[
PLQ
!
Failure to comply with these instructions
may cause damage and personal injury!
Transport and storage
Always protect the pump against ingress of water
and other impurities. Store the pump in a clean,
dry and warm environment. The pump is delivered
with the internals oiled and with protective covers
over the pipe connections and drain openings.
These covers should remain in place for as long
as possible during the mounting and installation
procedure but must be removed before start up.
!
All work carried out on the pump has to
be performed in such a manner that risks
for personal injury are observed!
Lifting of pump
!
All pumps should be lifted with straps
securely attached to the pump or pump
unit, so that the center of gravity is
located between the straps in order to
avoid tipping of the pump.
Use two eye bolts (M 20) securely fastened to the
front cover for pump LPQ. Pump and connecting
frame are lifted together using two eye bolts
securely fastened to the top of the connecting frame.
(Thread dimension is M 16, except for frame size
600, where it is M 20).
Identification of safety instructions
Non compliance of saf
ety instructions
identified
by the following symbol -
could aff
ect safety for persons.
Safety instructions where
electrical safety is in
vo
lved,
are identified by:
Safety instructions which shall be considered fo
r
reasons of safe operation of the pump or pump
unit and/or protection of the pump or pump unit
itself are marked by the sign:
ATTENTION
PD[
PLQ
Fig. 1 Clean and dry environment.
Installation
BEFORE COMMENCING ANY WORK, READ THIS INSTRUCTION CAREFULLY!
Design limitations and technical data for each pump are found in the Product description.
Installation of IMO AB low pressure pumps does not require special skills. However, these instructions
presume that the work is carried out by experienced tters.
Maintenance and service instructions, which are specic for each pump are presented after the
installation instructions.
