imperialsystemsinc.com 10 Imperial Systems Inc.
4. UNLOADING EQUIPMENT
4.1 RECOMMENDED TOOLS AND EQUIPMENT
• Screw Pin Clevis
• Crane or Forklift
• Drift Pins
• Drill and Drill Bits
• Wrenches
• Large Crescent Wrench
• Lifting Slings and Chains
• Pipe Sealant
• Pipe Wrenches
• Screwdrivers
• Socket Wrenches
• Spreader Bar
• Impact Wrench
• Impact Sockets
4.2 RIGGING INSTRUCTIONS
1. Use all lifting points provided on the unit.
2. Use screw pin clevises, not hooks on lifting slings.
3. Use spreader bars to prevent damage to the unit’sframe.
4. Refer to certified drawings for the weight and dimensions of
the unit, subassemblies, and accessories to ensure adequate
crane capacity.
5. Only qualified personnel should be allowed to lift or
rig the equipment.
6. Refer to applicable OSHA regulations and local
codes when using cranes, forklifts, and other lifting equipment.
7. Lift the unit and accessories separately, and
assemble after the unit is in place.
8. Use drift pins to align holes during assembly.
5. ASSEMBLY & INSTALLATION
5.1 ASSEMBLY

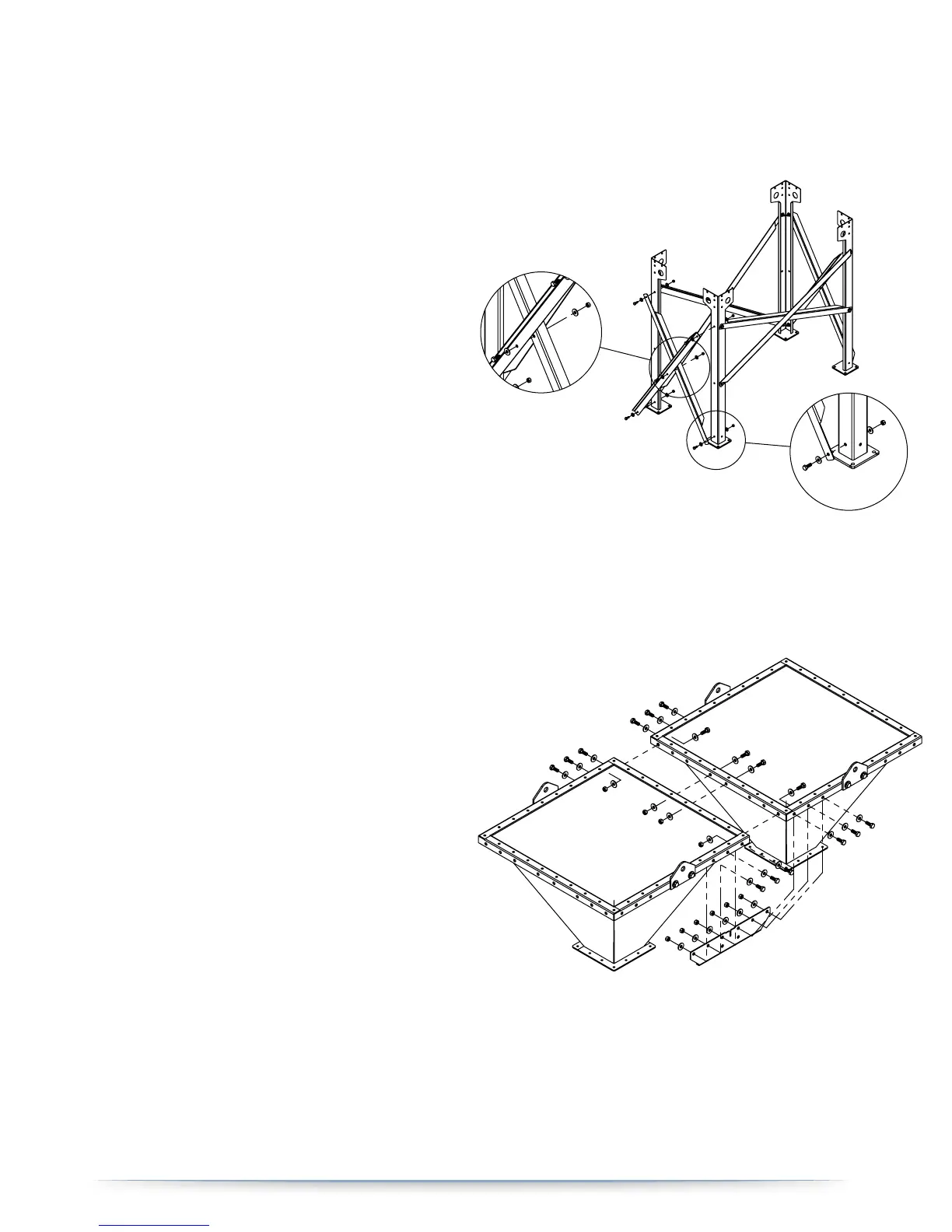

1. Locate and assemble the support structurer according to the
assembly drawing that came with your CMAXX. Leave all of the
hardware loose at this time.
2. If your CMAXX is equipped with multiple hoppers orientate the
hoppers per the assembly drawing ensuring that the alignment
stickers are in the proper location. bolt the hoppers together using
supplied hardware, and gusset brackets.
