Impex GD-810 - Step 5: Final Assembly and Tightening

Step 5 (See Diagram 5)
A.) You should have five Blue Frames (#1) left by now.
B.) Connect the five Blue Frames (#1) horizontally to the opening holes on the 6-hole Brackets
on the top.
C.) Now set the entire unit firmly on the ground and align all the frames. Make adjustment if
necessary.
D.) Securely tighten all Nuts and Bolts previously installed.
E.) Cover all the Nuts (#8) with Nut Covers (#9).

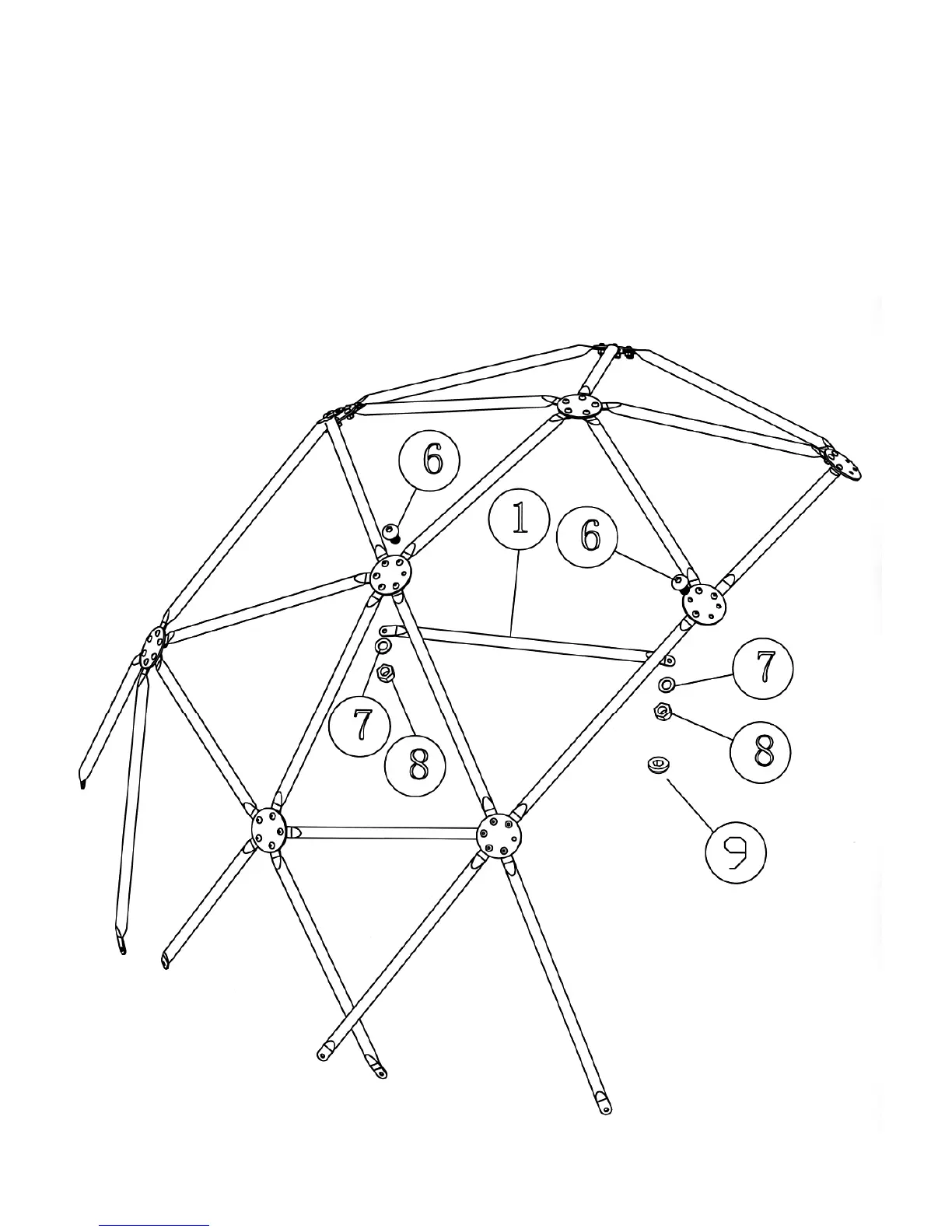

DIAGRAM 5
