ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: One Adjustable Wrench and one Allen Wrench
NOTE: It is strongly recommended two or more people assembling this equipment to avoid
possible injury.
STEP 1 (See Diagram 1)
A.) Attach two Blue Frames (#1) to the upper two holes on a 6-hole Bracket (#5). Attach two Blue
Frames to the lower two holes on the same 6-hole Bracket. Make sure the Frames are behind the
Bracket as shown in Diagram-1 below.
B.) Secure each Frame to the Bracket with one M8 x 5/8” Allen Bolt (#6), Ø 5/8” Washer (#7), and M8
Aircraft Nut (#8). Do not tighten the Nut and Bolt yet.
C.) Repeat Procedures A & B above to assemble four more sets (Total five sets) and let’s call it
“Frame A” for easier identification.

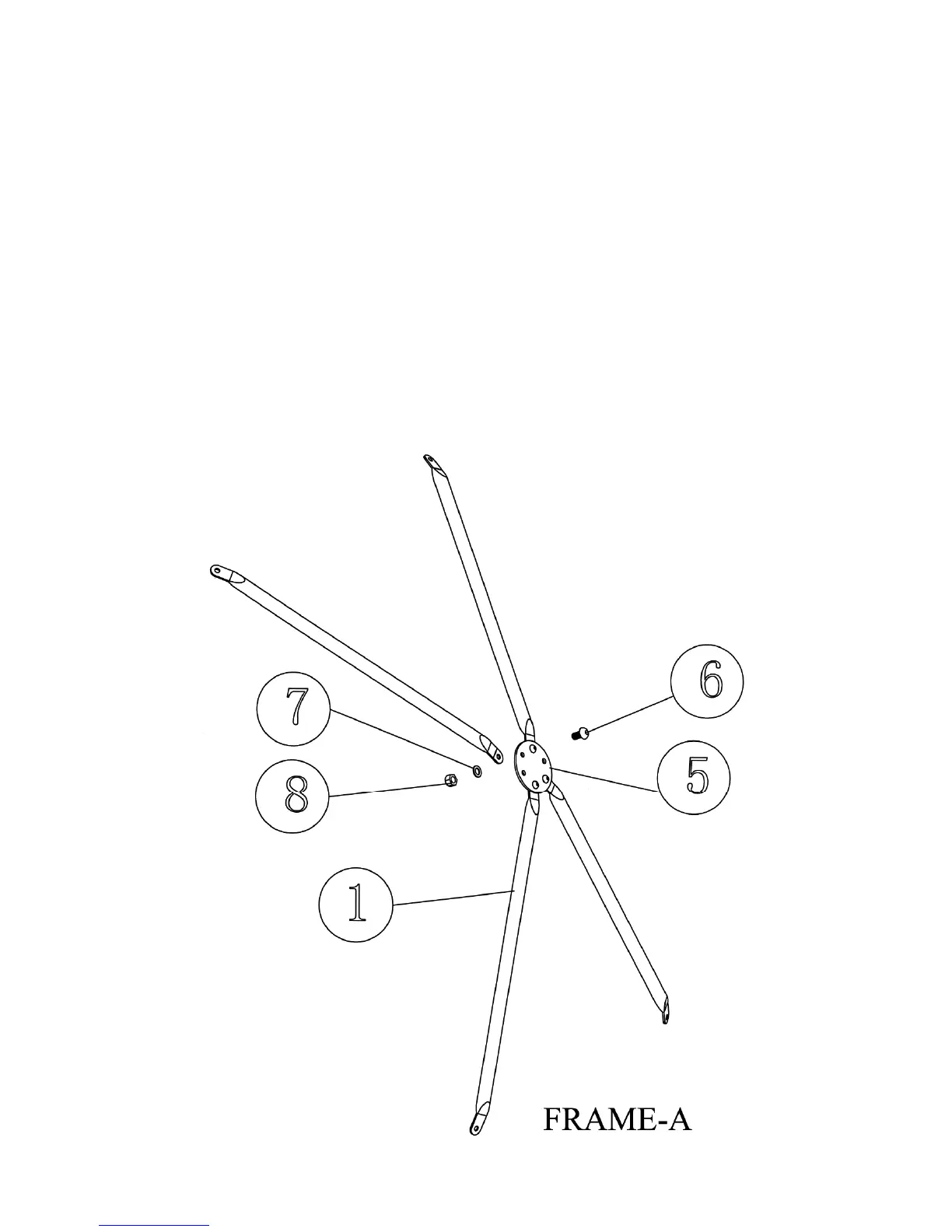

DIAGRAM 1
6
