Step 2 (See Diagram 2)
A.) Attach five Yellow Frames (#2) to a 5-hole Bracket (#4).
B.) Secure each Yellow Frame to the Bracket with one M8 x 5/8” Allen Bolt (#6), Ø 5/8” Washer
(#7), and M8 Aircraft Nut (#8).
C.) Do not tighten the Nut and Bolt yet.
D.) Repeat Procedures A & B above to assemble five more Frame-B (Total six sets).

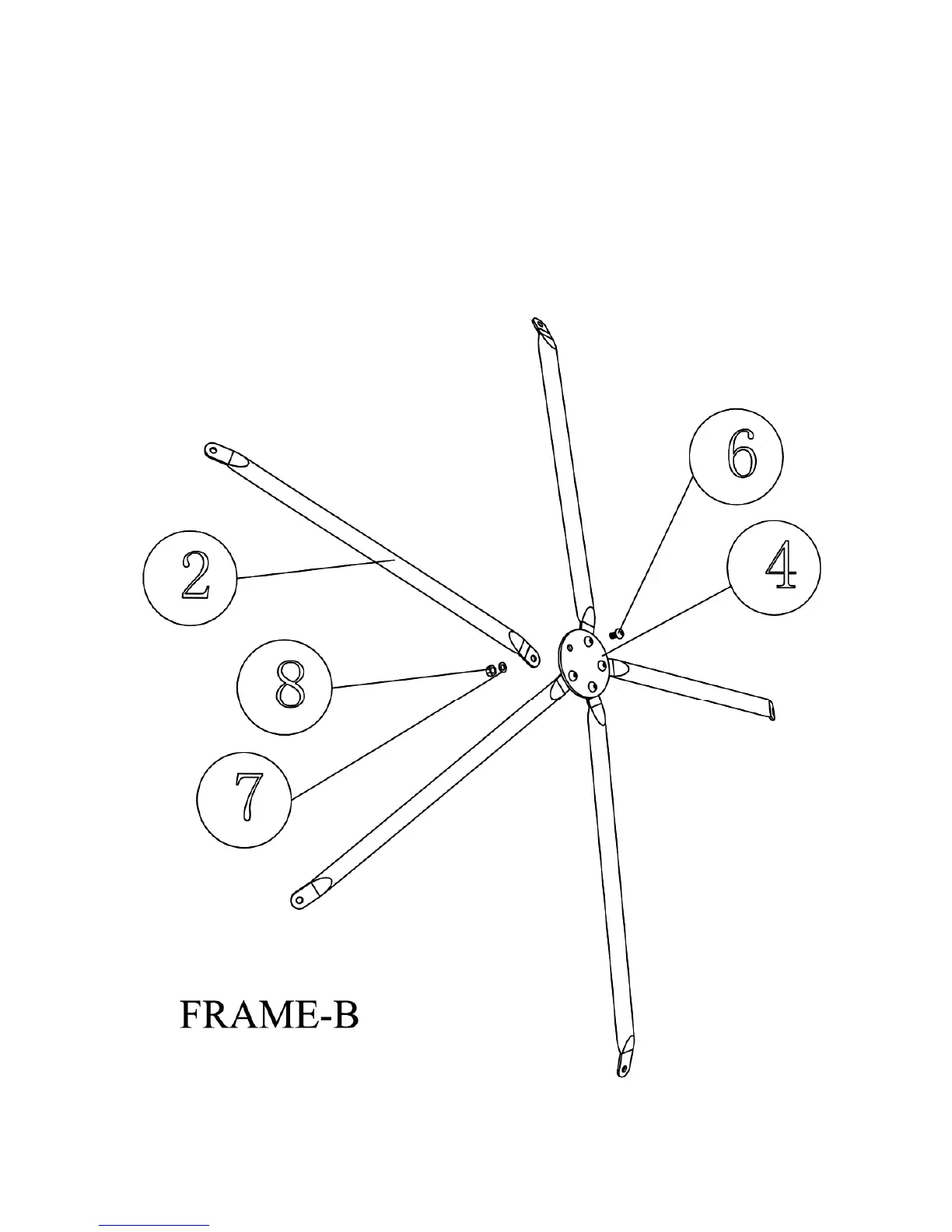

DIAGRAM 2
7
