Impex GD-810 - Step 3: Assemble Frame C

Step 3 (See Diagram 3)
A.) Connect a Blue Frame (#1) to a 4-hole Bracket (#3) and secure them with one M8 x 5/8”
Allen Bolt (#6), Ø 5/8” Washer (#7), and M8 Aircraft Nut (#8). Do not tighten the Nut and
Bolt yet.
B.) Connect ten Blue Frames (#1) together to form a big circle (Frame C) using ten 4-hole
Brackets (#3).

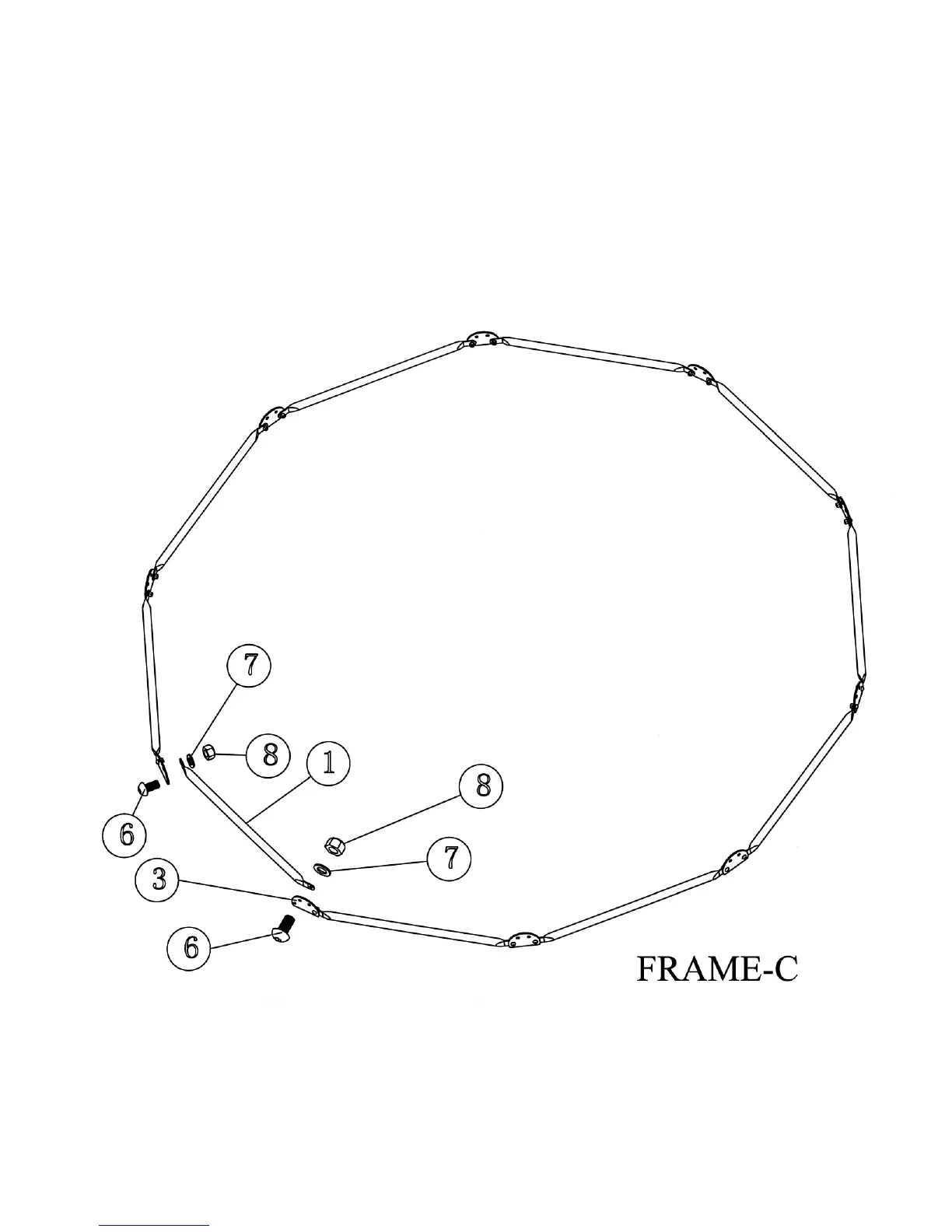

DIAGRAM 3
8
