STEP 5 (See Diagram 5)
A.) Place the Seat Pad (#8) onto the Seat Bracket (#5). Secure it with four M8 x 1 5/8” Allen
Bolts (#46) and Ø 5/8” Washers (#38).
B.) Attach the Backrest Board (#9) to the Backrest Supports (#10). Secure it with four M8 x 1
5/8” Allen Bolts (#46) and Ø 5/8” Washers (#38).
C.) Attach the Arm Curl Pad (#11) to the Arm Curl Bracket (#23). Secure it with two M8 x 5/8”
Allen Bolts (#41) and ∅ 5/8” Washers (#38).
D.) Attach the Arm Curl Bracket to the bracket on the Arm Curl Stand (#6). Insert the M8 x 3 ½”
Allen Bolt (#45) through the open track on the Arm Curl Stand and the holes on the Arm Curl
Bracket and secure the Bolt with two Ø 5/8” Washers (#38) and one M8 Aircraft Nut (#51).
Do not over tighten the Nut and Bolt. The Bolt needs to be able to slide on the track freely.

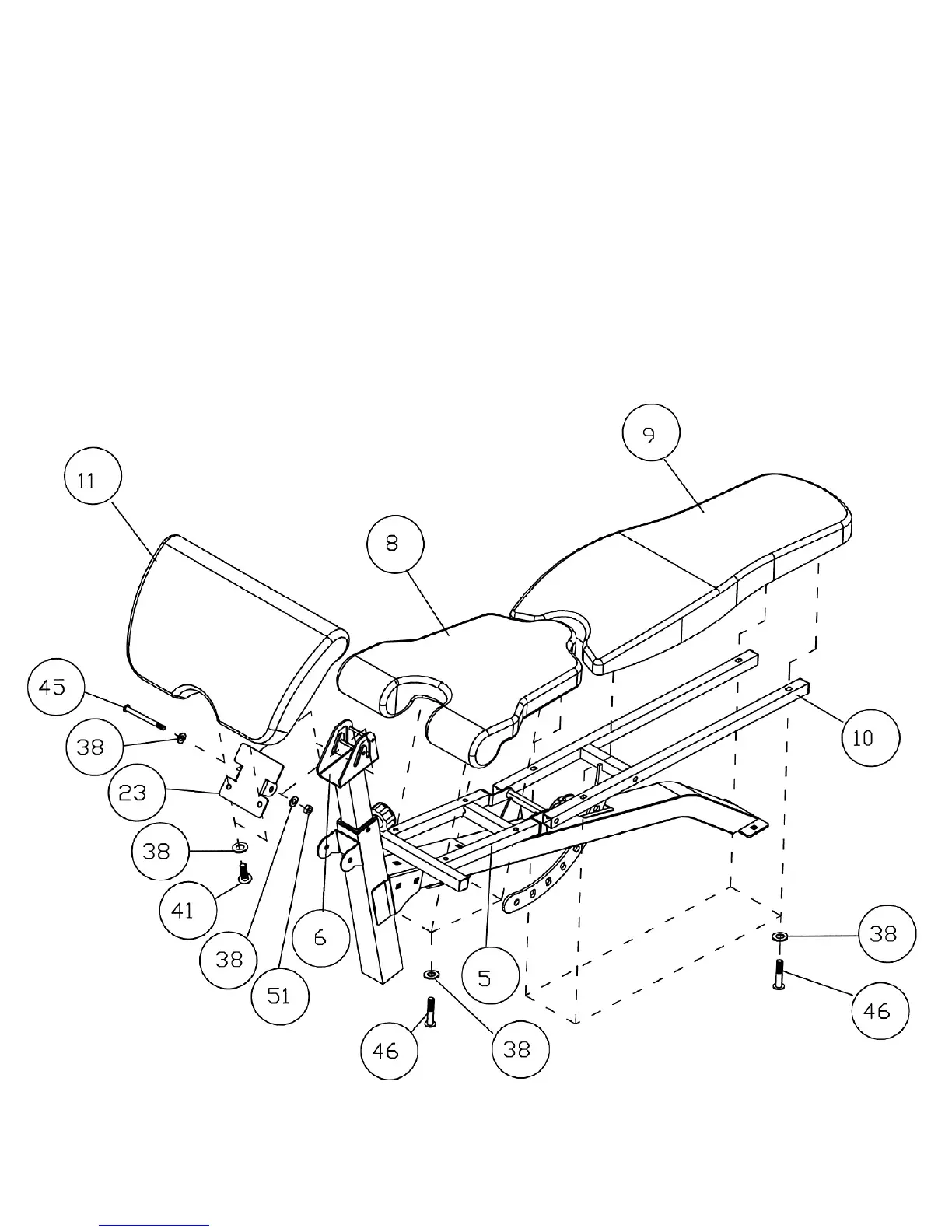

DIAGRAM 5
