Impex Marcy ME-708 - Step 4: Attaching Seat and Seat Post

STEP 4 (See Diagram 4)
A.) Remove the three Ø 5/8” Washers (#12), three Ø 3/8” Lock Washers (#13),
and three M8 Aircraft Nuts (#14) from the Seat (#8).
B.) Attach the Seat to the Seat Post (#7). Secure it with three Ø 5/8” Washers
(#12), three Ø 3/8” Lock Washers (#13), and three M8 Aircraft Nuts (#14).
C.) Insert the Seat Post into the opening on Main Frame (#1). Thread the Lock
Knob (#11) through the hole on Seat Post to securely lock it at desired
height.

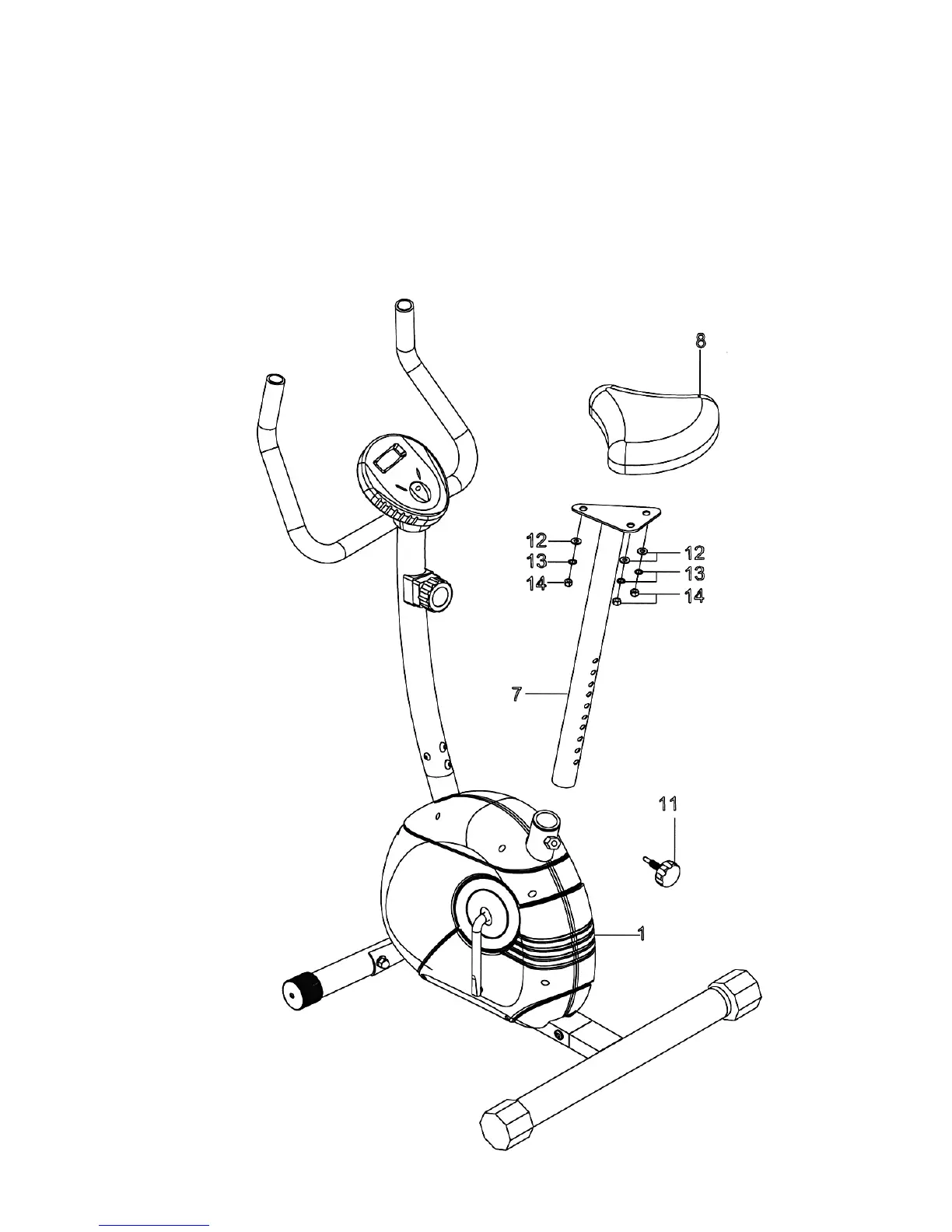

DIAGRAM 4
