ASSEMBLY INSTRUCTION
NOTE: It is strongly recommended that two or more people assemble this machine to
avoid possible injury.
STEP 1 (See Diagram1)
A.) Do not tighten Nuts and Bolts until instructed to do so.
B.) Attach the Front Stabilizer (#2) to the Main Frame (#1). Secure it with two M8 x 2 ½”
Carriage Bolts (#15), two 7/8” Curved Washers (#16), and two M8 Acorn Nuts (#17).
C.) Attach the Rear Stabilizer (#3) to the Main Frame. Secure it with two M8 x 5/8” Allen Bolts
(#18) and two Ø 1” Flat Washers (#19) from the bottom. Secure it with two M8 x 5/8” Allen
Bolts (#18) and two Ø 5/8” Washers (#12) from the sides.
D.) Securely tighten all Nuts and Bolts.

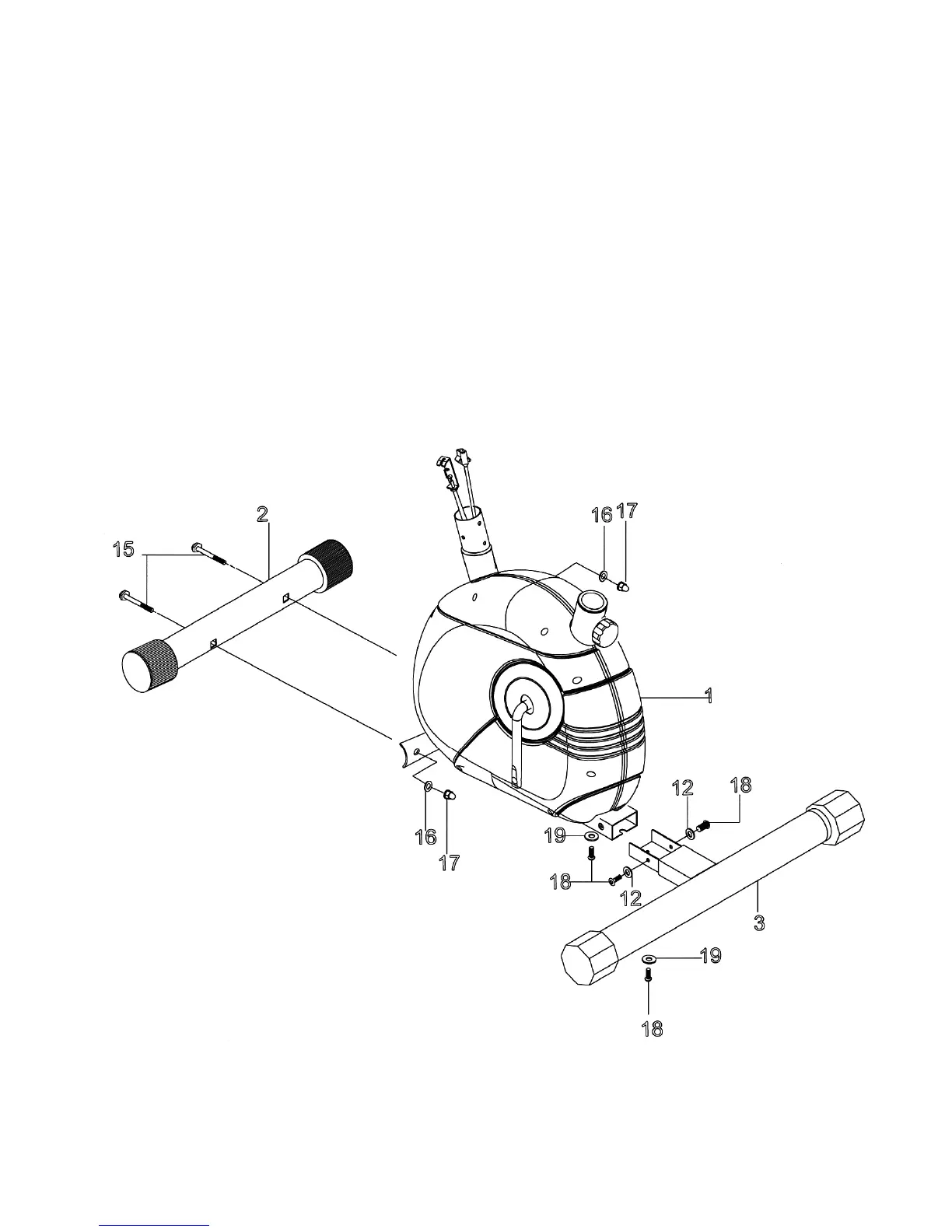

DIAGRAM 1
6
