STEP 11 (See Diagram 11)
A.) Attach the Seat (#28) to the Seat Support (#12). Secure it with two M8 x 2 ½” Allen Bolts
(#103) and ∅ 5/8” Washers (#115).
B.) Attach the Backrest Pad (#29) to the Front vertical Beam (#3). Secure it with two M8 x 2”
Allen Bolts (#104) and ∅ 5/8” Washers (#115).
C.) Attach the Arm Curl Pad (#50) to the Arm Curl Stand (#14). Secure it with two M8 x 5/8”
Allen Bolts (#105) and ∅ 5/8” Washers (#115). Insert the Arm Curl Stand into the opening in
front of the Seat. Secure it with a Lock Knob (#80) underneath the Seat.
D.) Insert two Foam Roll Tubes (#25) halfway through the holes on the Leg Developer (#13) and
Leg Developer Holder (#118). Push four Foam Rolls (#73) onto the Tubes from both sides.
E.) Attach the Arm Curl Handle (#18) to the Long Chain (#39) with a Clip (#81). Then attach the
Chain to the Lower Cable (#31). Remove the Chain when using the Leg Developer.
F.) Attach the Lat Bar (#17) to the Short Chain (#89) with a Clip (#81). Then attach the Chain to
the Upper Cable (#30).

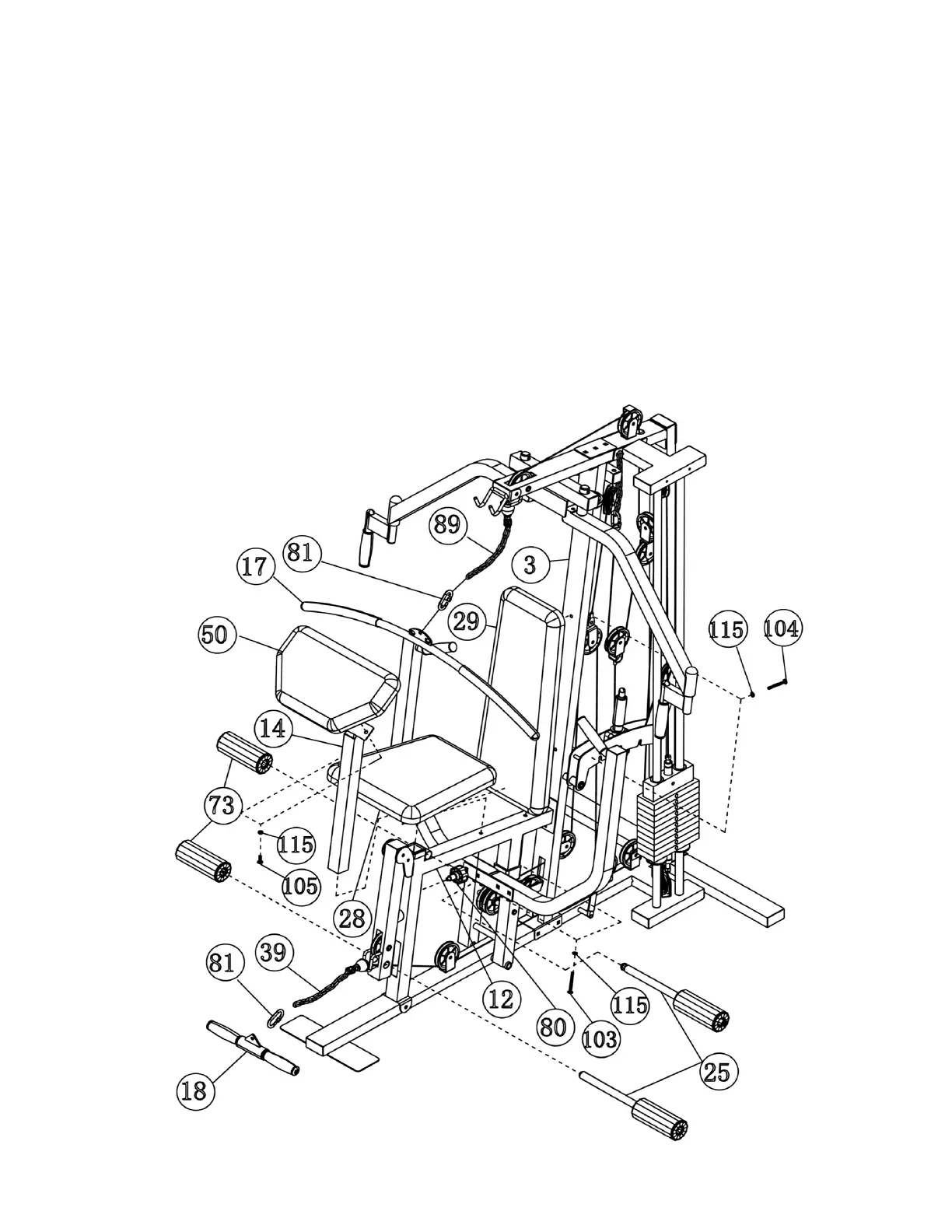

DIAGRAM 11
16
