ISC304-0-0-GB-06
April 2011
Page 11
Connecting the IXP20 Controller

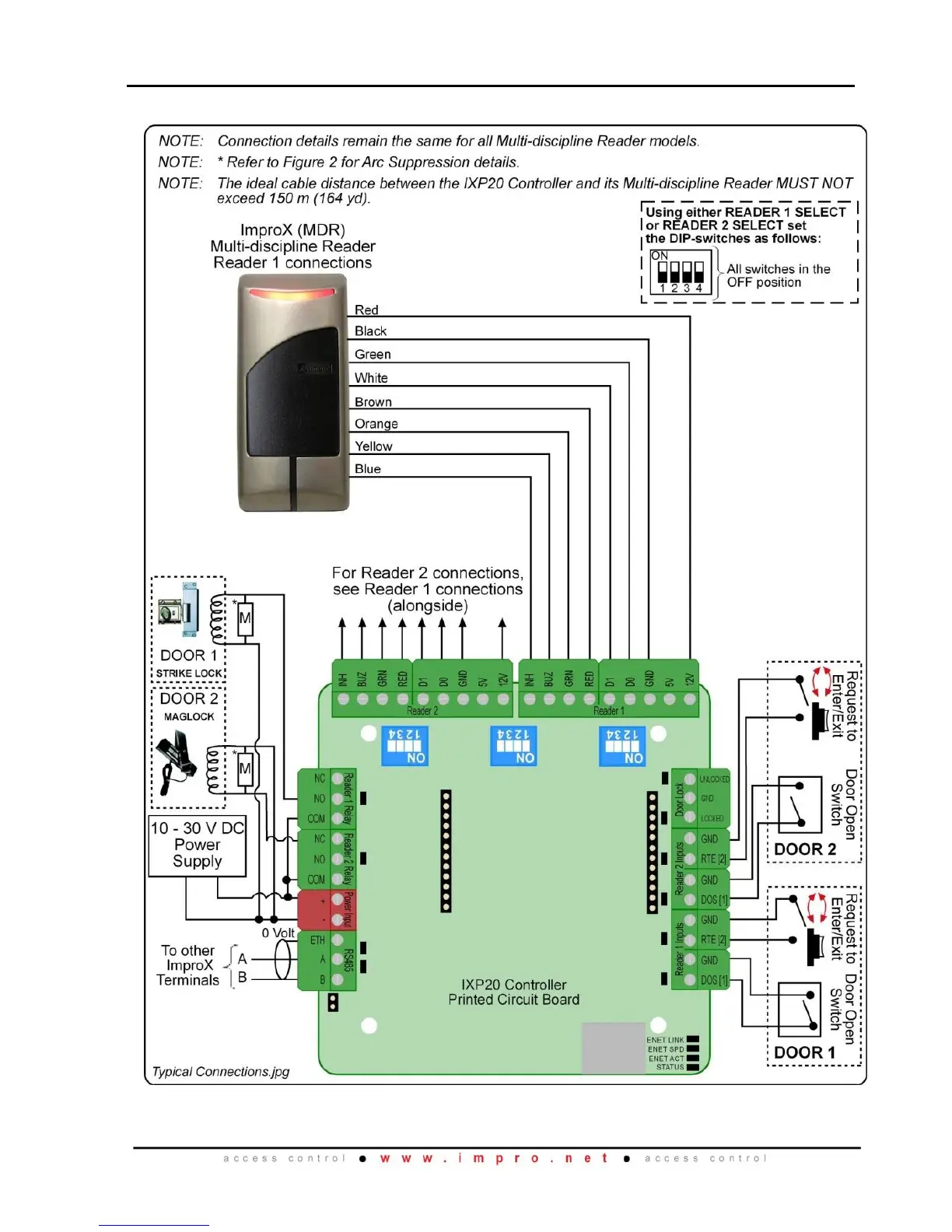

Figure 4 shows a typical electrical connection diagram for the IXP20 Controller.
Figure 4: Typical IXP20 Controller Electrical Connections
