Assembly
18

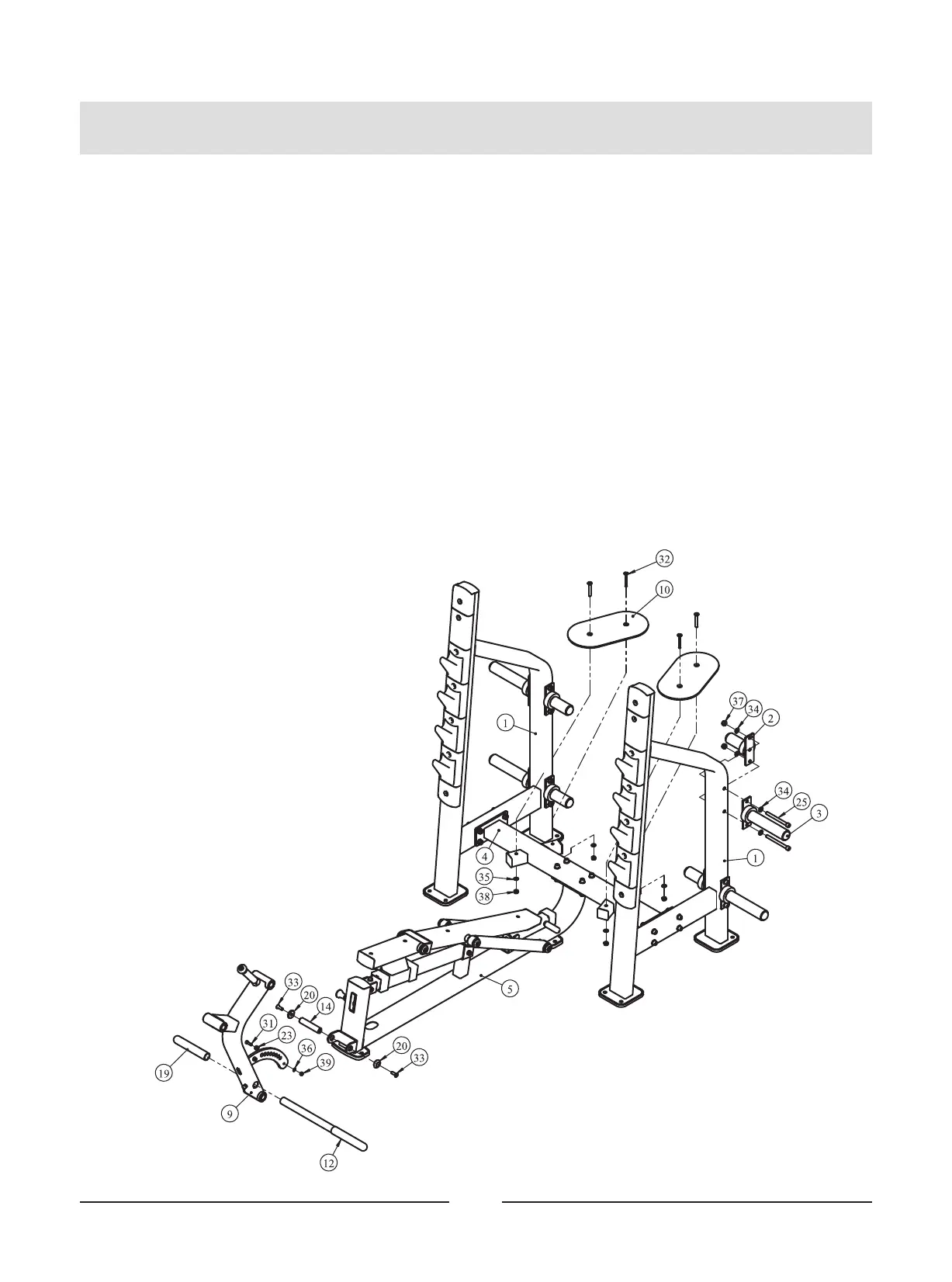

STEP 3
1. Attach the Swing Frame ASSY (#9) to the Main Frame ASSY (#5) using:
two M10*30 FHCS (#33) two Cap Φ38*Φ10.5*8 (#20)
one shaft Φ25.4*120 (#14) one M8*25 SHCS (#31)
one Rubber Sleeve Φ17*10.5 (#23) one Φ9*Φ16*1.6 Flat Washer (#36)
one M8 Nylon Lock Nut (#39)
2. Attach two Foot Panels (#10) to the Cross Connection Frame ASSY (#4) using:
four M10*70 FHCS (#32) four Φ11*Φ20*2 Flat Washer (#35)
four M10 Nylon Lock Nut (#38)
3. Attach four Short Weight Storage ASSYS (#2) and four Weight Storage ASSYS (#3) to
two Back Frame ASSYS (#1) using:
eight M12*130 SHCS (#25) sixteen Φ13*Φ24*2.5 Flat Washer (#34)
eight M12 Nylon Lock Nut (#37)
Note: Wrench Tighten Bolts and Nylon Lock Nuts.
To Next Page
