In the total of four configuration displays it is possible to configure the numerical dis-
plays. Here it is possible to change the measurement parameters and the associated
units of measurement for all four numerical displays.
2
3
4
5 6
1

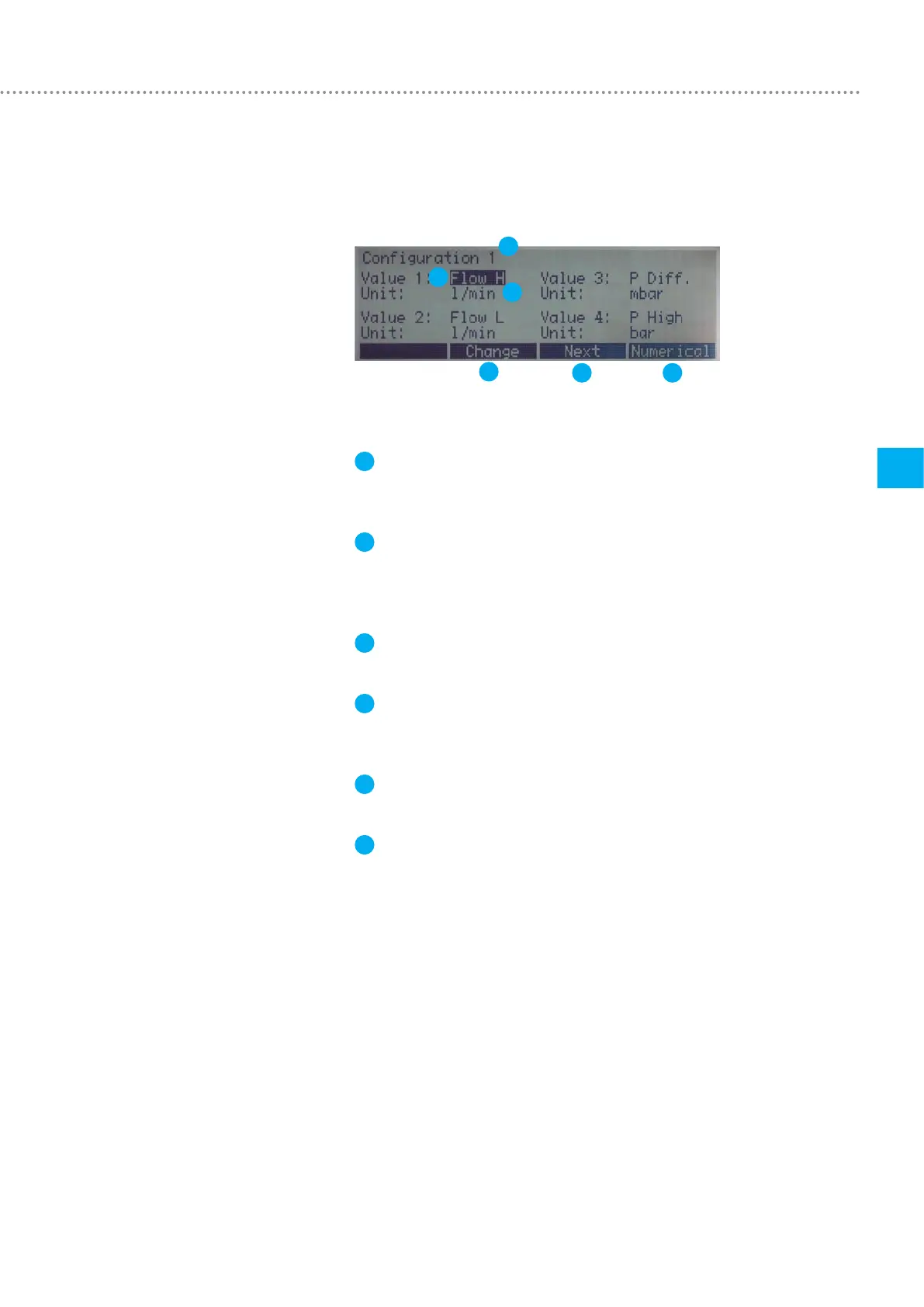

6.7.1 Specification of the configuration display
1
Number of the configuration display. It is possible to switch between four
different configuration displays. The number of the configuration display is the
same as the number of the corresponding numerical display.
2
Measurement parameter that is currently being shown on the numerical
display (13 Appendix: Measurement parameters and units). Every value on
the display can be marked by pressing the arrow buttons. A red LED draws
attention to the corresponding mechanical port.
3
Unit of measurement in which the measurement parameter is shown on the
numerical display (13 Appendix: Measurement parameters and units)
4
Change. With the associated button you can access edit mode in order to
change the relevant measurement parameter or unit of measurement. With
Save the new value is applied.
5
Next. With the button assigned you can switch between the four configuration
displays.
6
Numerical. By pressing the associated button you exit the configuration dis-
play and the numerical display reappears.
6.7 Configuration display
