Operation
28
6
IMT Analytics AG
In the total of four statistics displays the current values, min, max and average val-
ues of the measurement parameters are shown. The measurement parameters on
the statistics display correspond to the measurement parameters on the numerical
display.
2
3
4 5 6
1
10
7 8 9

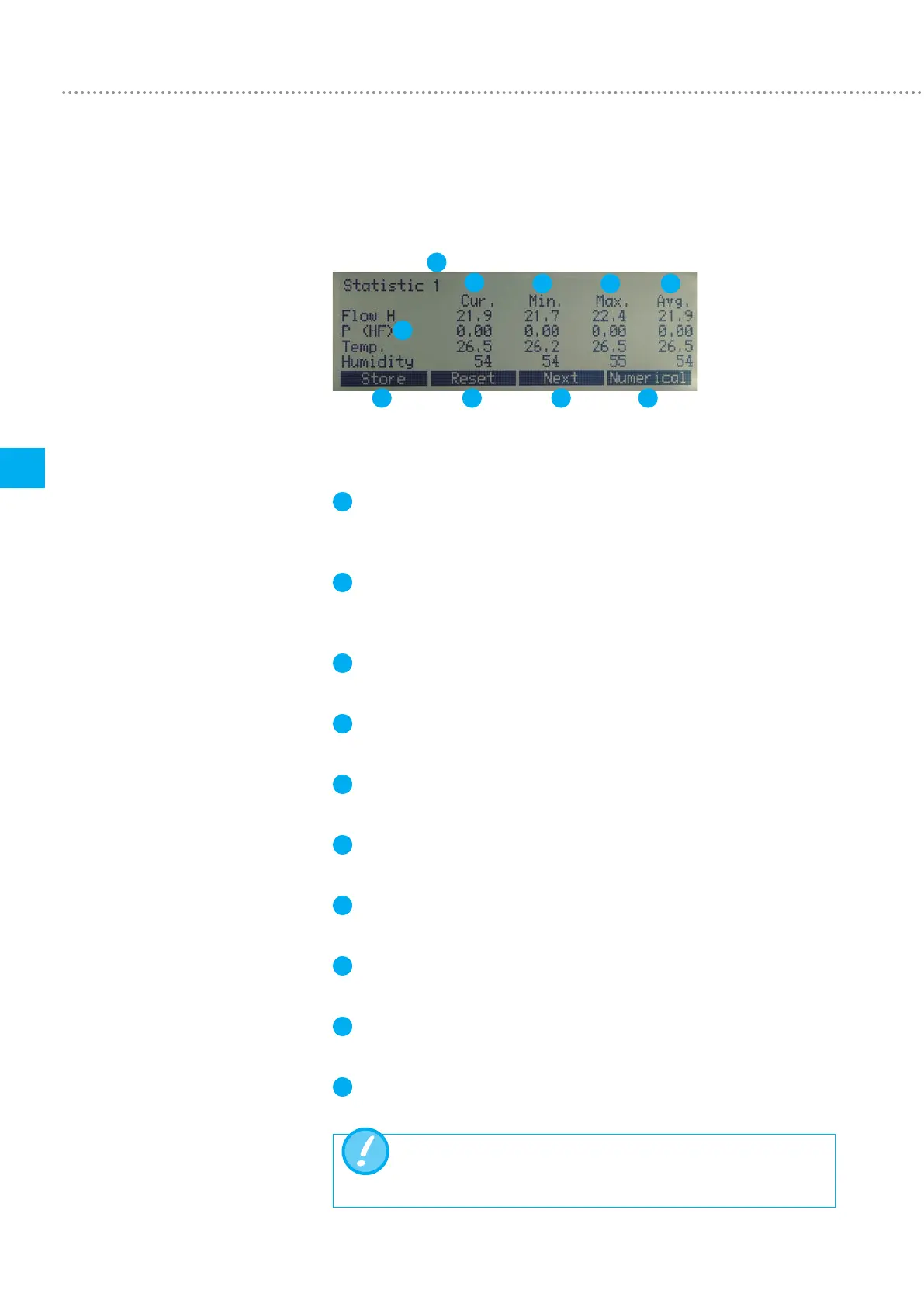

6.8.1 Specification of the statistics display
1
Number of the statistics display. It is possible to switch between four different
statistics displays. The number of the statistics display is the same as the
number of the corresponding numerical display.
2
Measurement parameter. Indicates the measurement parameter currently
selected. Measurement parameters can be changed in configuration (7.7.1
Specification of the configuration display).
3
Current value. Shows the current reading in the same unit of measurement
as on the numerical display.
4
Min. This value shows the smallest reading that was measured since the last
reset.
5
Max. This value shows the largest reading that was measured since the last
reset.
6
Avg. This value shows the arithmetic mean of all the readings since the last
reset. After one minute a sliding average of one minute is shown.
7
Reset. Pressing the associated button sets the statistical readings to zero. At
the same time all the ventilation parameters are reset to "No Tr".
8
Next. With the button assigned you can switch between the four statistics
displays.
9
Numerical. By pressing the associated button you exit the statistics display
and the numerical display reappears.
10
Store. Press this button to save measurement parameters.
On the statistics display the units of measurement are the same as
on the numerical display!
