MultiGasAnalyser OR-703
45
7
IMT Analytics AG

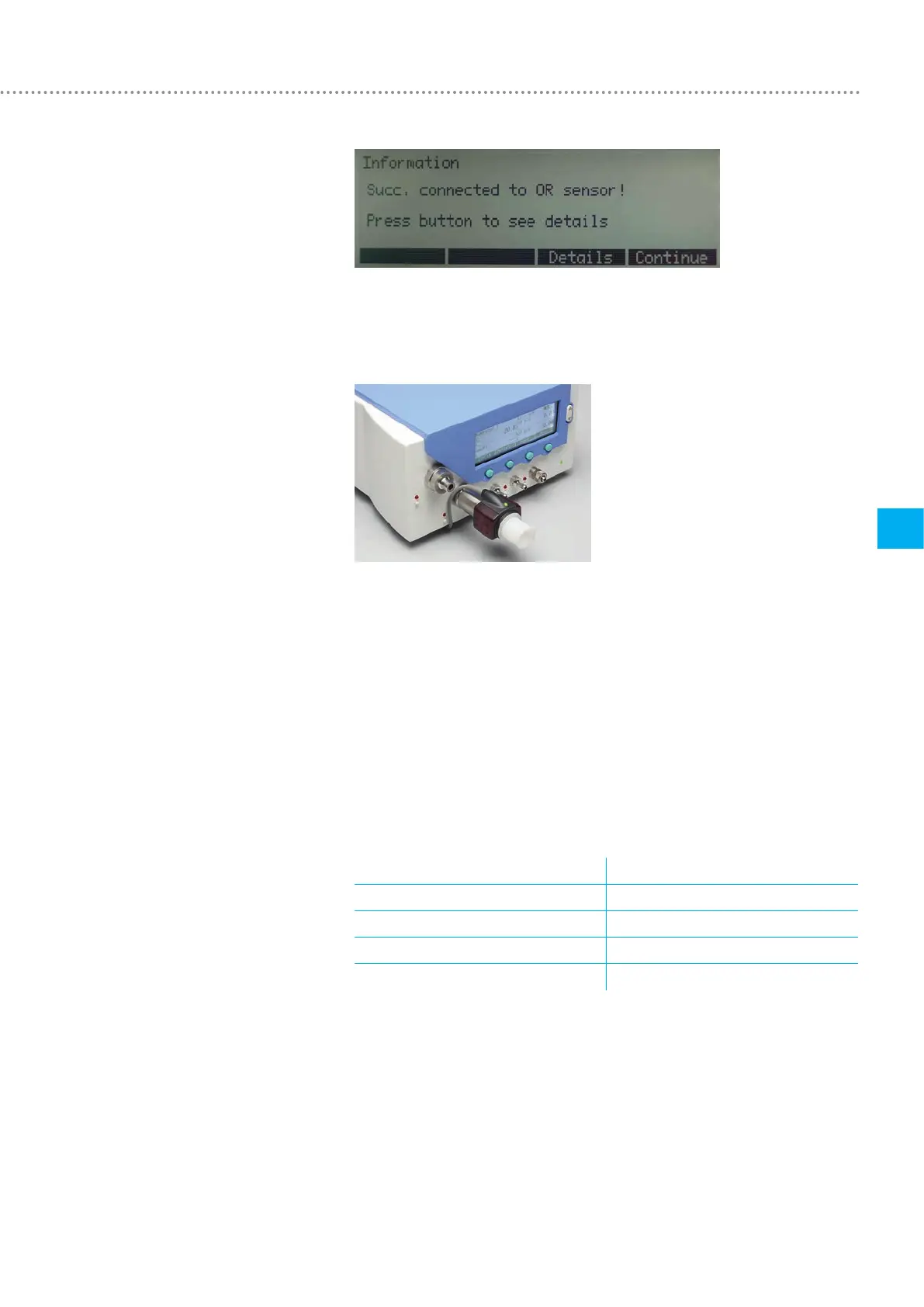

This screen information indicates that a connection between FlowAnalyser and the
OR sensor has been successfully established.
Details lists all the technical details concerning the sensor.
The sensor must always be operated with the LED facing up.
MultiGasAnalyser must be placed between the gas source and
FlowAnalyser.
Depending on the direction of flow, MultiGasAnalyser can be operated at the front or
rear flow channel port of FlowAnalyser.
The LED located on the sensor head of MultiGasAnalyser indicates the following
status information:
Continuous green light System OK
Continuous blue light Anaesthetic agent exists
Continuous red light Sensor error
Flashing red light Please check the adapter
Flashing green light Calibration of the OR sensor
7.6 LED signal
