PLP2 Platform Hydraulics
Depending on the model, there are 2 type of PLP2 hydraulics.
"L" column type:
The "L" column system is similar to the classic two basket layout, similar to current Dishwasher
layouts, with the top basket lowered by a few centimetres and changes made to the "lift up" system
"C" column type:
Machines with this hydraulic system have three baskets: the two conventional baskets plus a third,
at the top, used for washing cutlery.
A third spray outlet referred to as the Showerhead washes items in the third basket.
Machines with this arrangement also have an alternating wash motor with three delivery outlets and
a relative three-ported sump.
Third Basket - Cutlery Tray
Some PLP models have a third Upper Cutlery
Tray with a shower Head in the Roof. Fig. 3.
shows the Water Circuit.

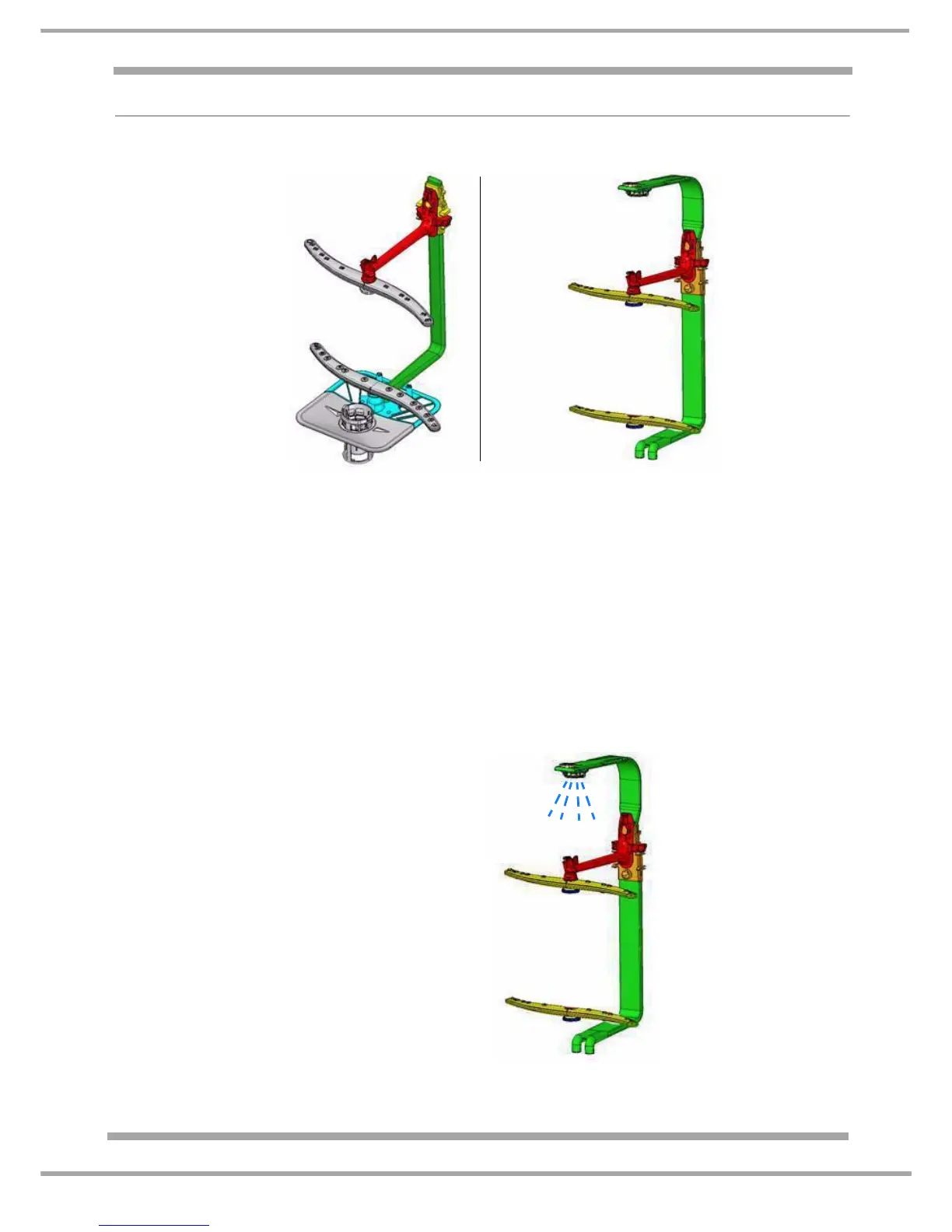

Fig.1
"L" column type
Fig. 2
"C" column type
Fig. 3
