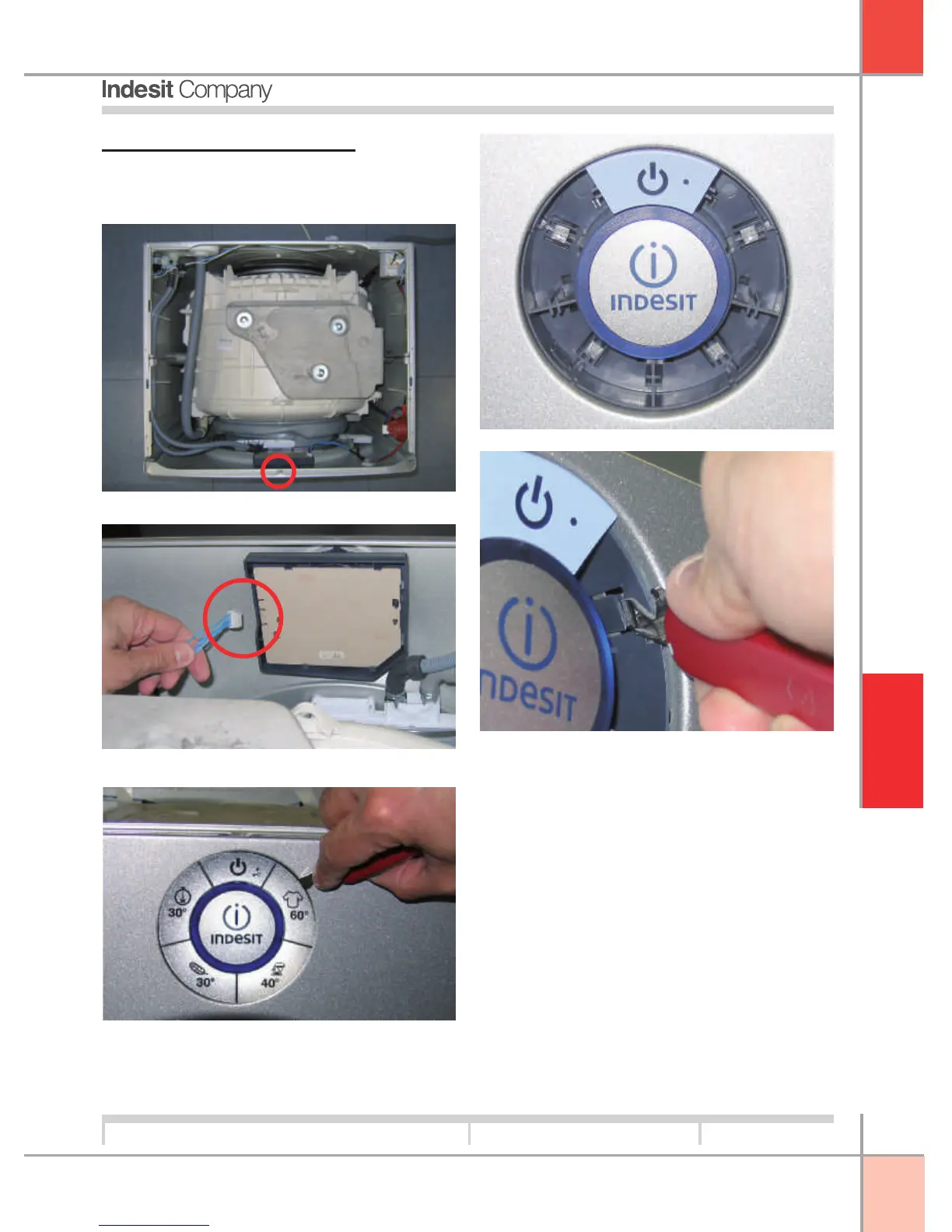

Dismantling the display PCB
1. Unplug the appliance from the mains power
supply and remove the top panel from the
washing machine.
3. Disconnect the connector from the display PCB.
4. With the aid of a small fl at blade screwdriver, remove
the programme buttons, taking care not to damage
or scratch the panel or the buttons themselves.
5. Using the same screwdriver, prise the tabs
securing the display PCB to the front, pushing
the central disc to remove it.
2. Remove the screw securing the control panel
