THE CONTROLS
STAND-BY MODE
NOTE: - Models produced from 10 December 2009 comply with the requirements of the latest
European Directive on the limitation of power consumption of the stand-by mode.
If no operations are carried out for a period of 2 minutes after the residual heat indicator lights turn off
and the fan stops and the appliance automatically switches to the 'off' mode.
The appliance resumes the operating mode once the ON/OFF button is pressed.
• INCREASE POWER button switches on the
hotplate and controls the power.
• REDUCE POWER button controls the power
and switches off the hotplate.
• COOKING ZONE SELECTOR indicator light
shows a particular cooking zone has been
selected and therefore various adjustments
are possible.
• COOKING ZONE SELECTOR button is used
to select the desired cooking zone.
• POWER indicator provides a visual display for
the current heat level.
• ON/OFF button switches the appliance on
and off.
• ON/OFF indicator light shows whether the
appliance is on or off.
• CONTROL PANEL LOCK button prevents
accidental changes to the hob settings.
• CONTROL PANEL LOCK indicator lights
shows that the control panel has been locked.

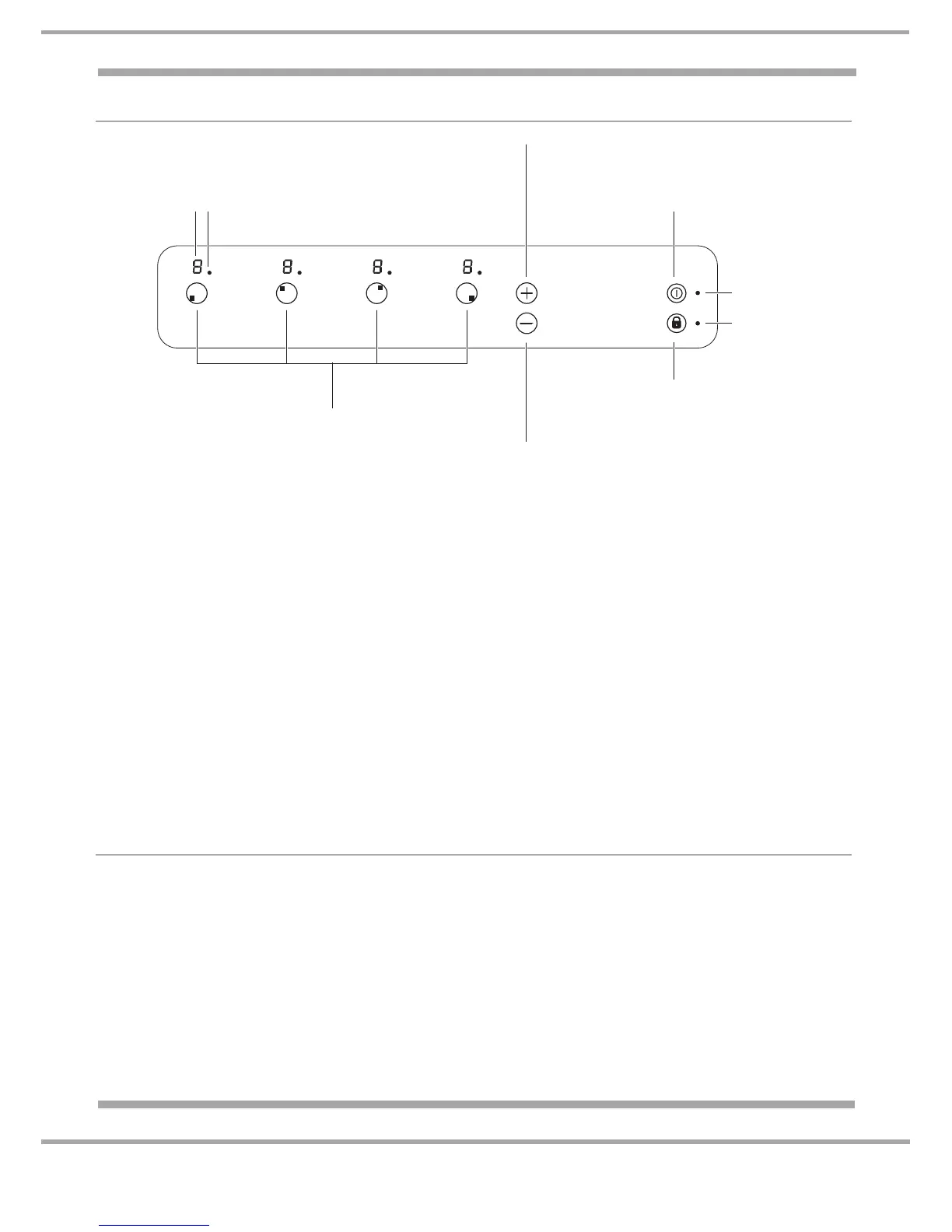

ON/OFF
indicator light
CONTROLS LOCKED
indicator light
CONTROL PANEL
LOCK button
INCREASE
POWER button
COOKING ZONE
SELECTOR buttons
REDUCE POWER
button
COOKING ZONE
SELECTED indicator light
POWER and
RESIDUAL HEAT
indicators
ON/OFF
button
