ELECTRICAL CONNECTION
The electrical connection for the hob and for any built -in oven must be carried out separately, both for
safety purposes and to make extracting the oven easier.
Single-Phase Connection
The hob is equipped with a pre-connected electricity supply cable, which is designed for single-phase
connection.

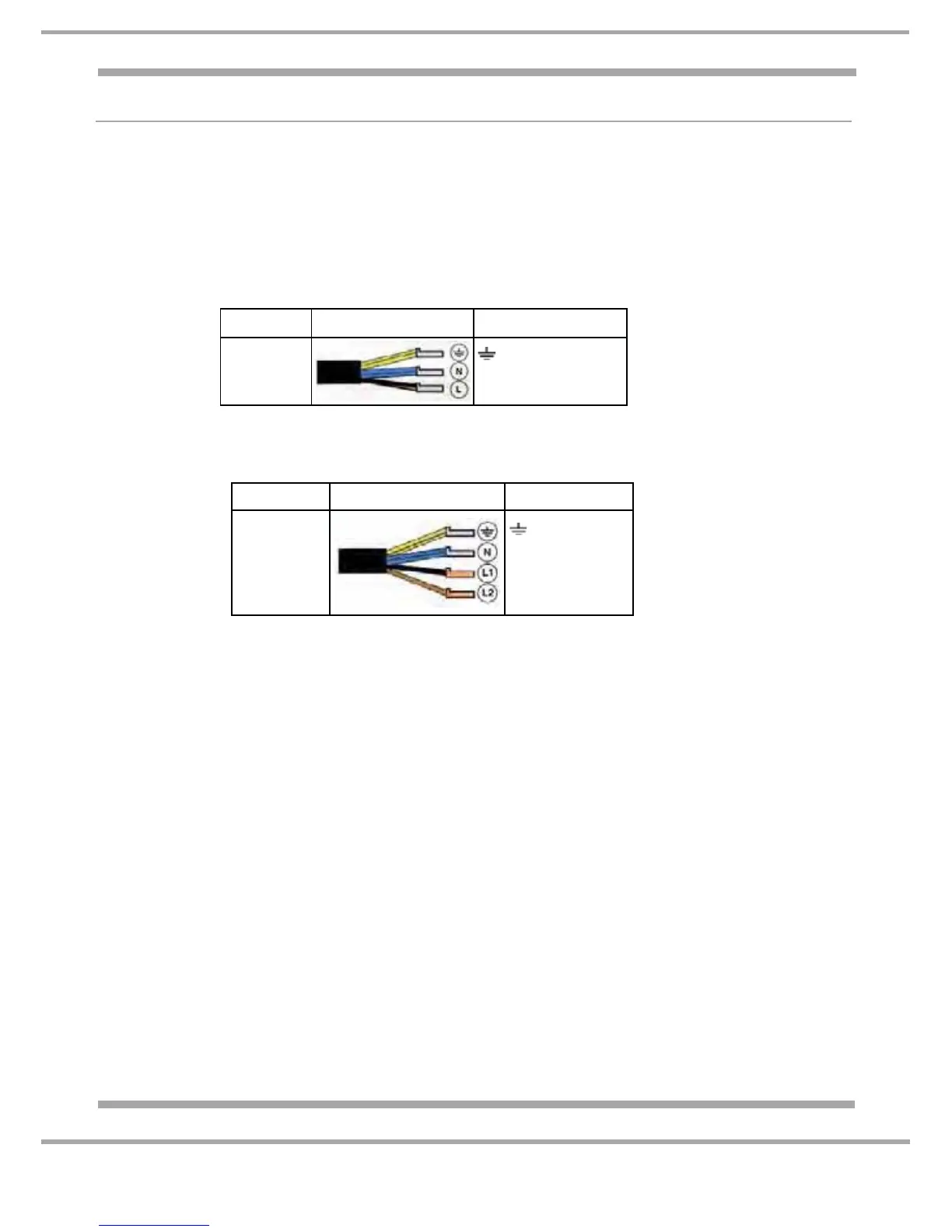

Connect the wires in accordance with the instructions given in the following table and diagrams:
Other Types of Connection
If the mains supply corresponds with one of the following:
Voltage and mains frequency
• 400V - 2+N ~ 50/60 Hz
• 220-240V 3 ~ 50/60 Hz
Separate the wires and connect them in accordance with the instructions given in the following table
and diagrams.
Connecting the Electricity Supply Cable to the Mains
If the appliance is being connected directly to the electricity mains an omnipolar switch must be
installed with a minimum opening of 3 mm between contacts.
The installer must ensure that the correct electrical connection has been made and that it is fully
compliant with safety regulations.
220-240V 1+N ~
50/60 Hz
: yellow/green
N: the two blue wires together
L: brown and black together
Voltage and
mains frequency
Electrical cable Wire connection
Voltage and
mains frequency
Electrical cable Wire connection
400V - 2+N ~
50/60 Hz
220-240V 3 ~
50/60 Hz
: yellow/green;
N: the two blue wires
together
L1: black
L2: brown
