Indmar Marine Engines
6-19
ELECTRICAL SYSTEM
All Indmar engines are equipped with a 40 A Maxi-Fuse
(1, Figure 6-14) to protect the engine electrical system
and components from overload. If the engine will not
crank with the battery switch in the ON position, locate
the fuse at the back of the engine. It is located under the
fuse block cover. Replace the 40 A Maxi-Fuse with the
spare from the fuse block (2, Figure 6-14). Start the
engine.

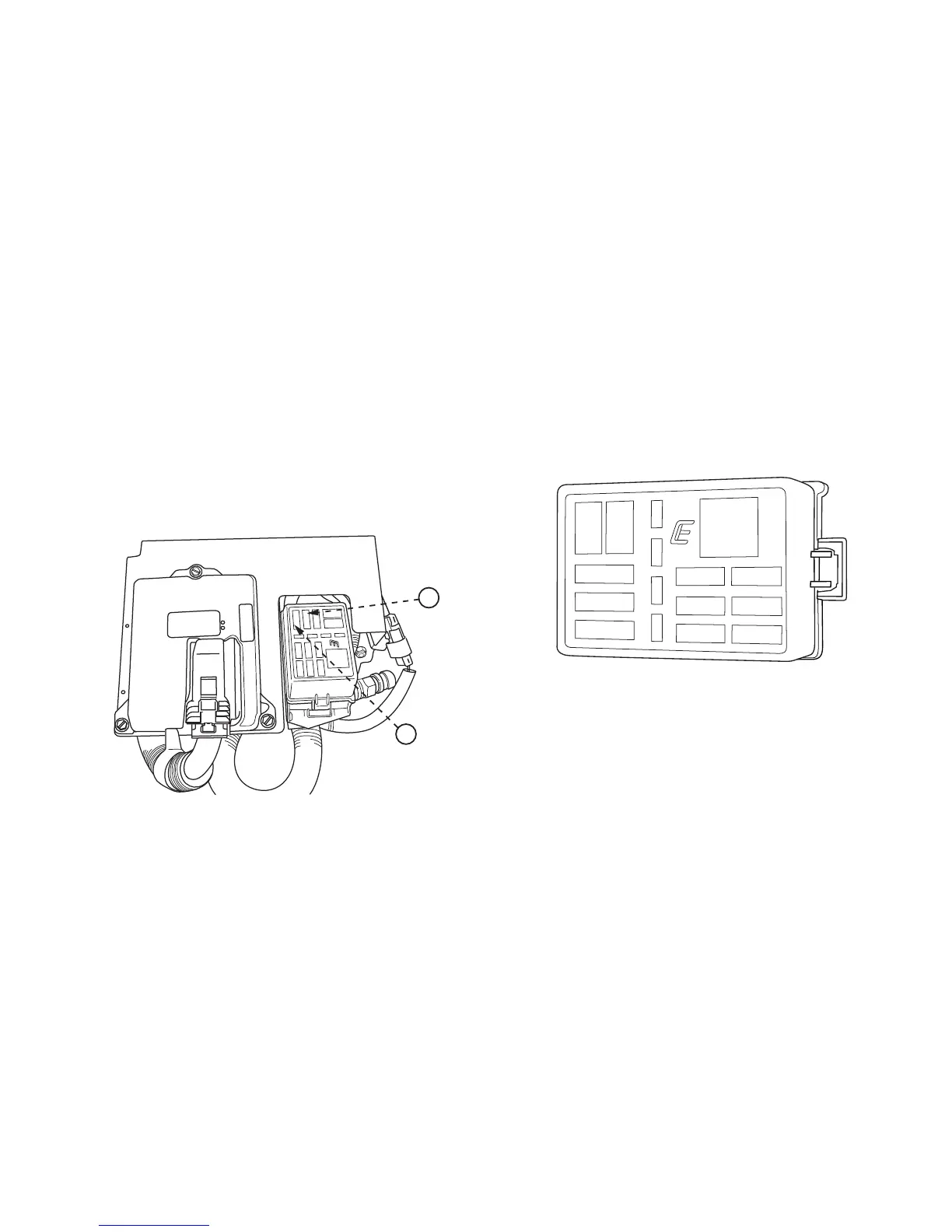

Figure 6.14 – 40 A Maxi-Fuse
If the fuse blows again, there is a problem with the elec-
trical system. Take your boat immediately to your Indmar
dealer for repair.
NOTICE
In addition to the 40 A fuse, EFI engines are equipped
with additional component overload protection.
Figure 6.15 – Fuse Block
EFI fuses are located in the holder (Figure 6-15)
attached by the ECM. To remove or inspect a fuse,
remove molded plastic cap from fuse holder. Inspect
fuse and replace if it is defective. Make sure to replace
the fuse block cover when finished.
MODEL #E-6123
P/N: E2321993
COMPLIES TO MARINE SAE J1171
SPARE
SPARE
SPARE
SPARE
SPARE
FUSES
UNDER
F9-EMPTY
20A
20A
20A
20A
20A
20A
5A
40A
F8-HELM
F7-MAIN BREAKER
F5-FUEL PUMP 2
F6-STARTER
F3-FUEL PUMP
F1-VSW
F2-ECM
STARTER
RELAY
F4-PTR
POWER
RELAY
FUEL PUMP
RELAY
COVER
INDM-0028
1
2
MODEL #E-6123
P/N: E2321993
COMPLIES TO MARINE SAE J1171
SPARE
SPARE
SPARE
SPARE
SPARE
FUSES
UNDER
F9-EMPTY
20A
20A
20A
20A
20A
20A
5A
40A
F8-HELM
F7-MAIN BREAKER
F5-FUEL PUMP 2
F6-STARTER
F3-FUEL PUMP
F1-VSW
F2-ECM
STARTER
RELAY
F4-PTR
POWER
RELAY
FUEL PUMP
RELAY
COVER
INDM-0002
OME0502-15 Body.qxp_OM0502-05 Body.qxd 5/20/14 12:45 PM Page 6-19
