7-6
Indmar Marine Engines
b. ZF Through-Shaft Ski-Vee. On these models,
you must remove the hose from the fitting that is
pointed toward the engine to drain the cooler.

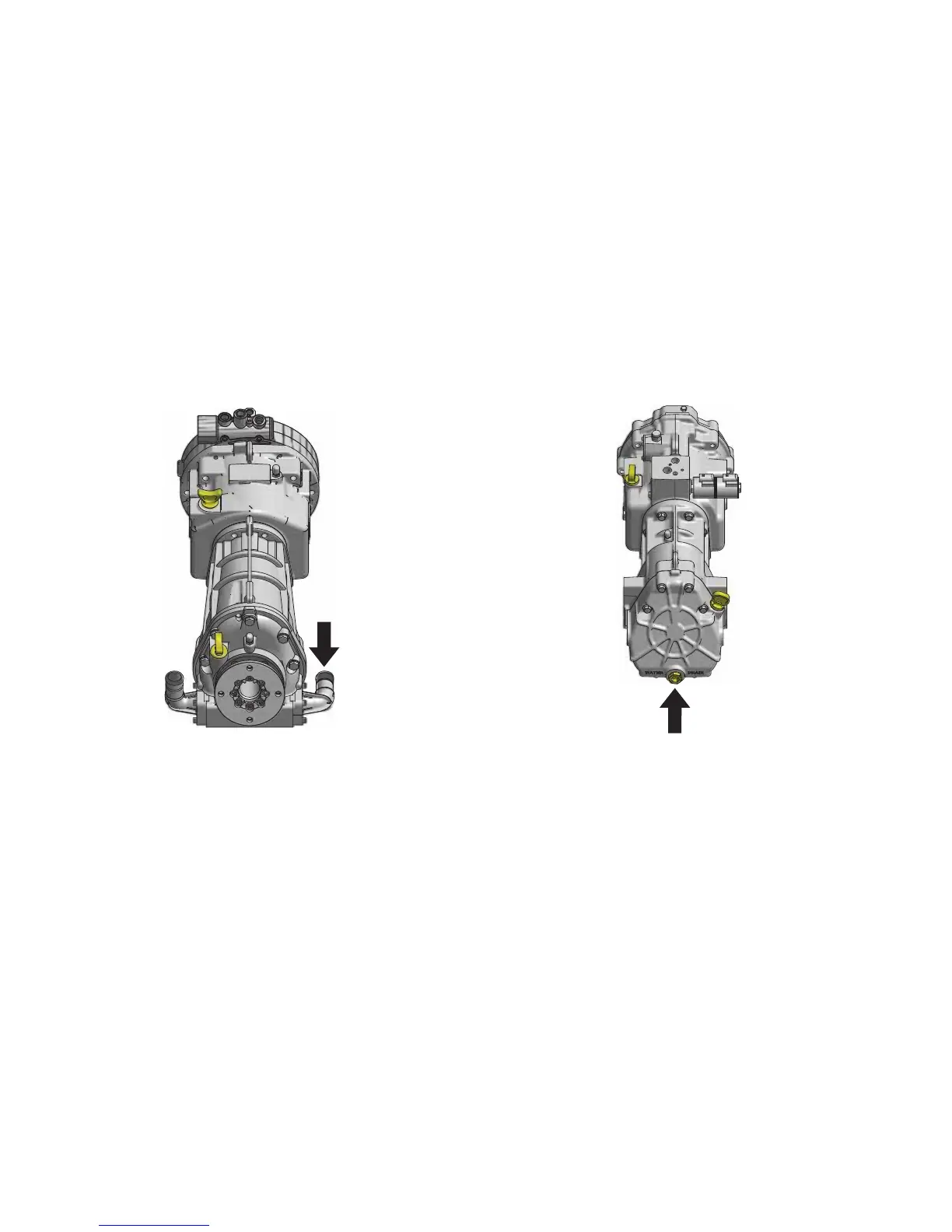

Figure 7.5 – ZF Through-Shaft Ski-Vee Water Drains
c. Indmar-Vee. On these models, you must remove
the plug from the rear of the V-drive to drain the
cooler.
Figure 7.6 – Indmar-Vee Drain Plug
INDM-0025a
INDM-0023
OME0502-15 Body.qxp_OM0502-05 Body.qxd 5/20/14 12:45 PM Page 7-6
