INDRA Smart Series - Smart LUX Tethered; General Description

5
Smart LUX™
SmartLUX™TetheredhasanIEC62196(Type2)tetheredchargingconnectortobeusedwith
Type2socketttedEVs.

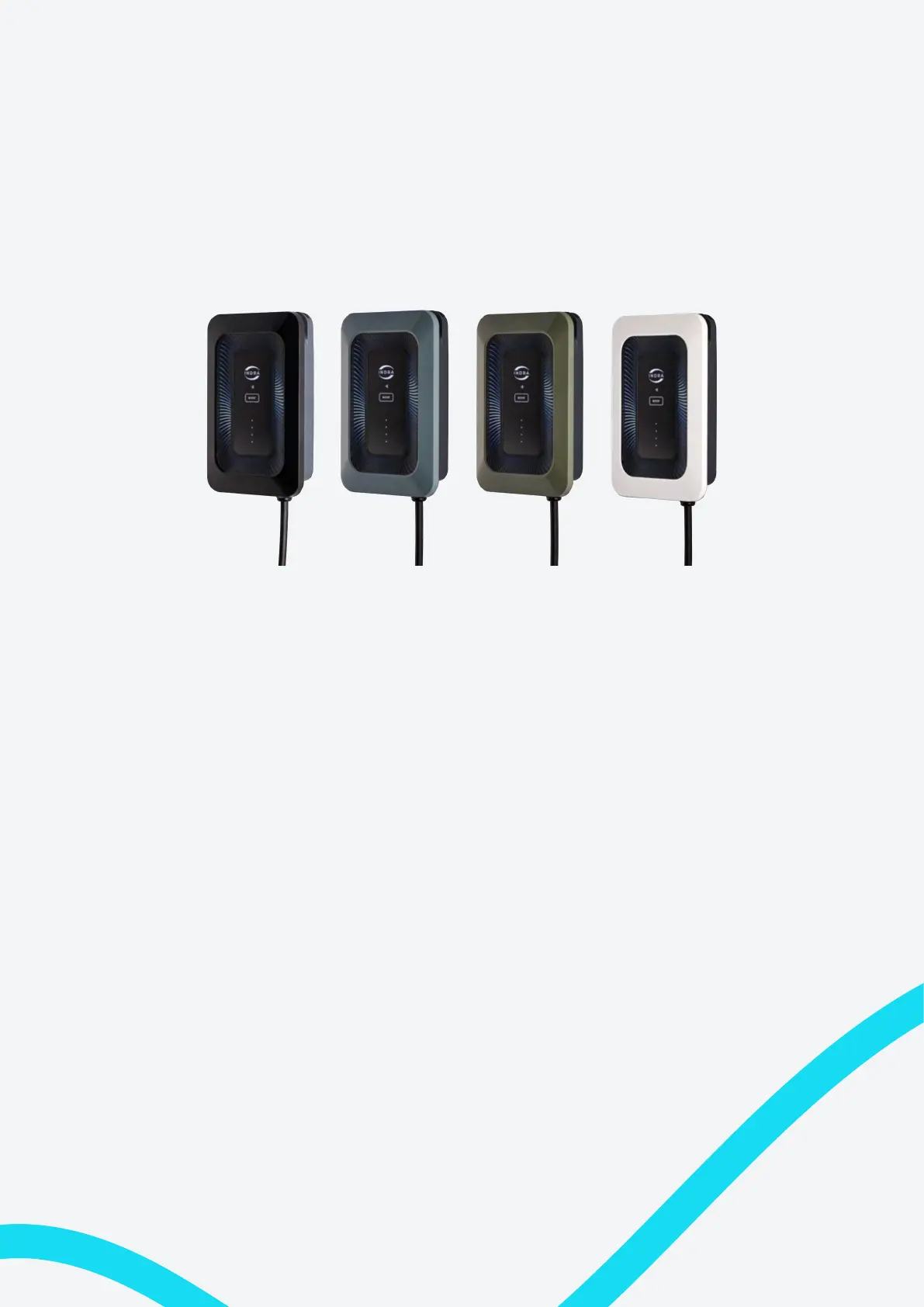

Itcomeswitheithera6mor10mtetheredleadandavarietyofcolouredfascias.
Symphony
Black
Elgar
Grey
Malvern
Stone
Indra
White
General Description
This manual describes the method of installation and hardware operation of the Indra Smart
Range, where the charger is a permanently installed electric vehicle charging solution for
resistivedomesticandcommercialloadsofatleast6Aandupto32Aat230V,50Hz.
Smart LUX™ Product Codes:
SMNFGT2WH401 Indra White, 6m
SMNFGT2WH402 Indra White, 10m
SMNFGT2BL401 Symphony Black, 6m
SMNFGT2BL402 Symphony Black , 10m
SMNFGT2GY401 Malvern Stone, 6m
SMNFGT2GY403 Malvern Stone, 10m
SMNFGT2GY402 Elgar Grey, 6m
SMNFGT2GY404 Elgar Grey, 10m
