CONVERTING TO INFANT SEAT
Figure 2
Adjuster
Upper Anchorage
Strap
Upper Anchorage
Strap Guide
Step 1:
Step 2:
Upper Anchorage
Strap

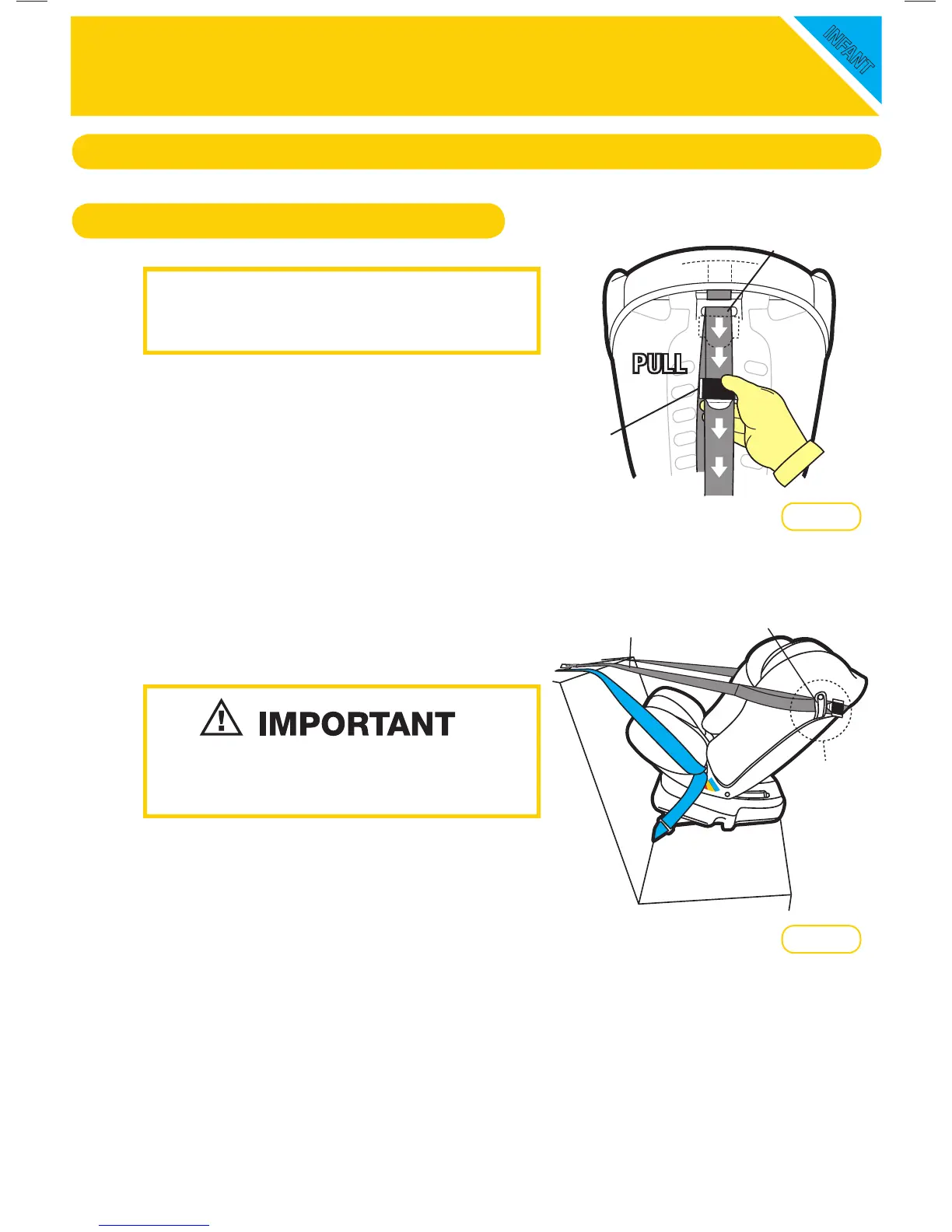

The location of the Upper Anchorage
Straps ‘Adjuster’ is adjustable for ease
of installation and ease of use.
Pull adjuster and strap to extend the location of the
adjuster assembly (see Figure 2).
Continue to extend until the adjuster has reached
the desired location at the side of the restraint
(see Figure 3).
Step 3:
Locate the adjuster at the side of the restraint and
secure using the Upper Anchorage Strap Guide.
EASE OF USE: It is recommended to position
the adjuster at the side of the restraint which is
towards the access door (rear passenger side).
ADJUSTER ASSEMBLY LOCATION
Rearward Facing (Type A)
Adjuster
location
Figure 3
REA
RWARD FA
CING
BEL
T PATH
FORW
ARD FACING
BELT
PATH
INFANT
WITH INBUILT HARNESS
SET UP
