BOOSTER
WITH LAP-SASH SEAT BELT
SET UP
INSTALLATION
CONVERTING TO BOOSTER SEAT
Refer to shoulder height marker
(As shown on pages 31 & 32).
IMPORTANT
!

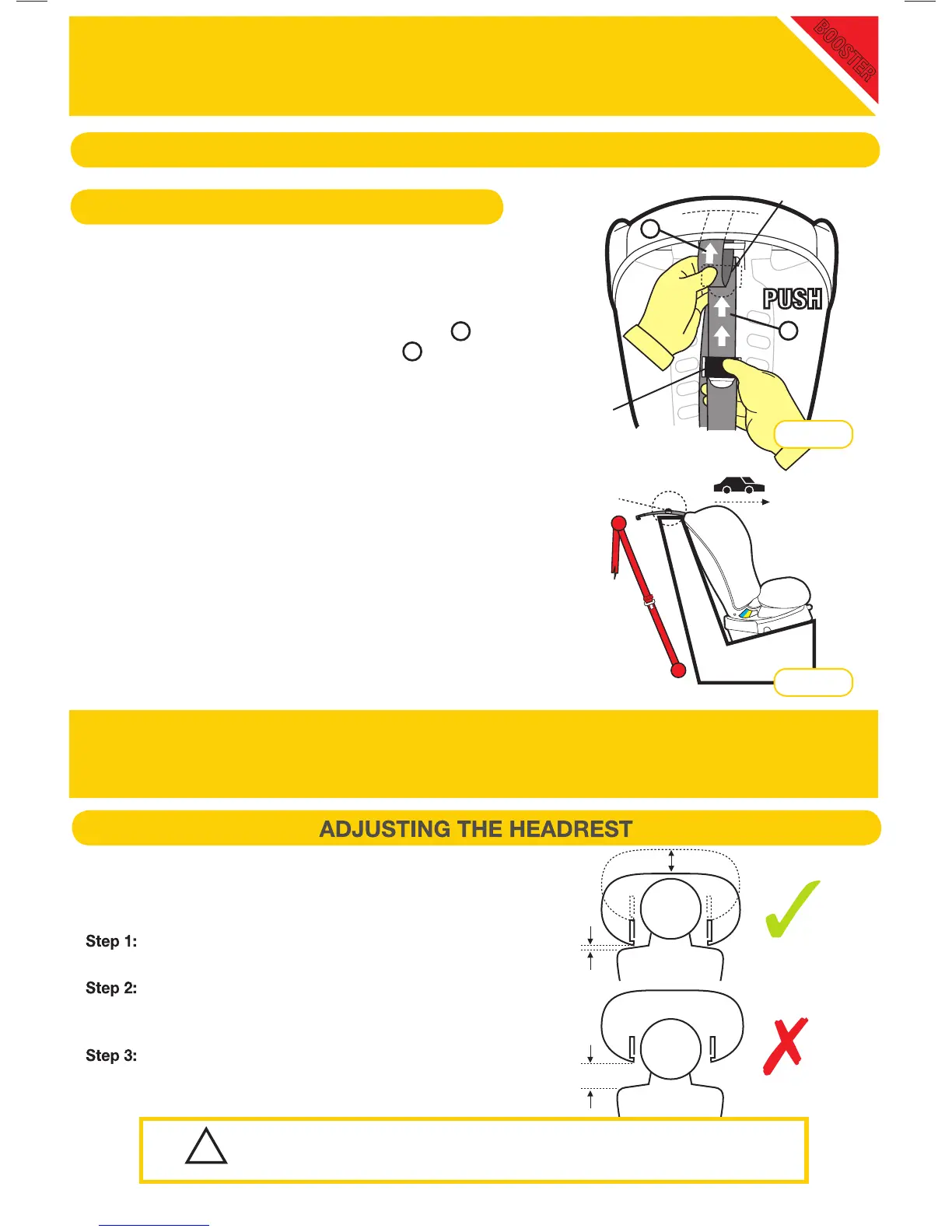

The headrest can be adjusted to different heights to
best suit your child. The headrest has a locking nut
on the rear of the restraint.
Undo the adjustment nut which is located at the back of
the headrest, to move the headrest either up or down.
Adjust the headrest height so that the bottom of the
sash guide is located level with or just above the
child’s shoulder.
Once the headrest is in the correct position tighten
the adjustment nut and check the headrest is locked
into place.
Adjuster
position
ADJUSTER ASSEMBLY LOCATION
PUSH
Pull excess strap through the top section
whilst feeding the adjuster section towards
the seat (see Figure 2).
Continue to shorten until you have reached the
desired position at the rear of the restraint (see
Figure 3).
Step 1:
Step 2:
Forward Facing (Type B)
Adjuster
1
1
2
2
Upper Anchorage Strap
Figure 2
Front
of Car
Figure 3
35
