INFANT
WITH INBUILT HARNESS
INSTALLATION
INSTALLING IN VEHICLE
IMPORTANT
!
The purchaser should check the
measurements between the front of the seat
back of the rear seat and all front seats in the
car in which the child restraint is intended to be
used, to ensure that the space is sufcient.
Care and attention should be given to
sufcient ventilation and shading of the baby.
FOLLOWING THE INSTALLATION OF THE
CHILD RESTRAINT A SMALL AMOUNT OF
MOVEMENT IS DEEMED ACCEPTABLE.
Recline Section must always be used in the
rearward facing mode (infant position) as
shown in Figure 2 (page 15).

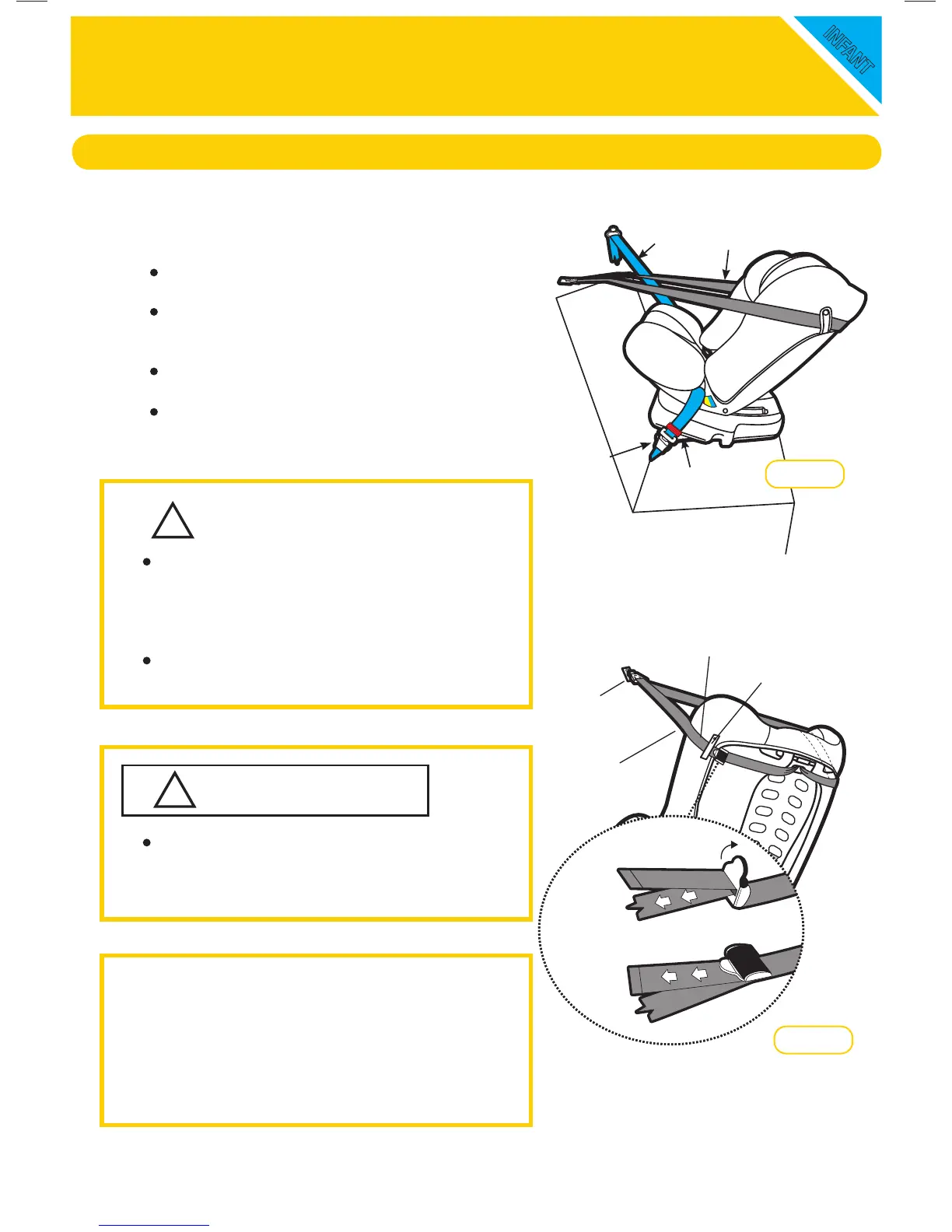

Upper
Anchorage
Strap Guide
Connect upper anchorage strap to anchorage tting
and adjust rmly.
Tighten till slack is removed.
In certain vehicles an extension strap may be
needed.
Do not overtighten upper anchorage strap.
Ensure upper anchorage strap is passed through
the Upper Anchorage Strap Guide.
Step 6:
Upper
Anchorage Strap
Anchorage
Point
Adjuster
Figure 7
WARNING
!
NOTE
Tilt
Pull to
Lengthen
Pull to
Tighten
Buckle &
Assembly
Upper
Anchorage
Strap
Safe Grip
(red belt clamp)
Seat
Belt
Figure 6
17
