INFILED Wallpaper Series - External Components

7
1. Product Overview

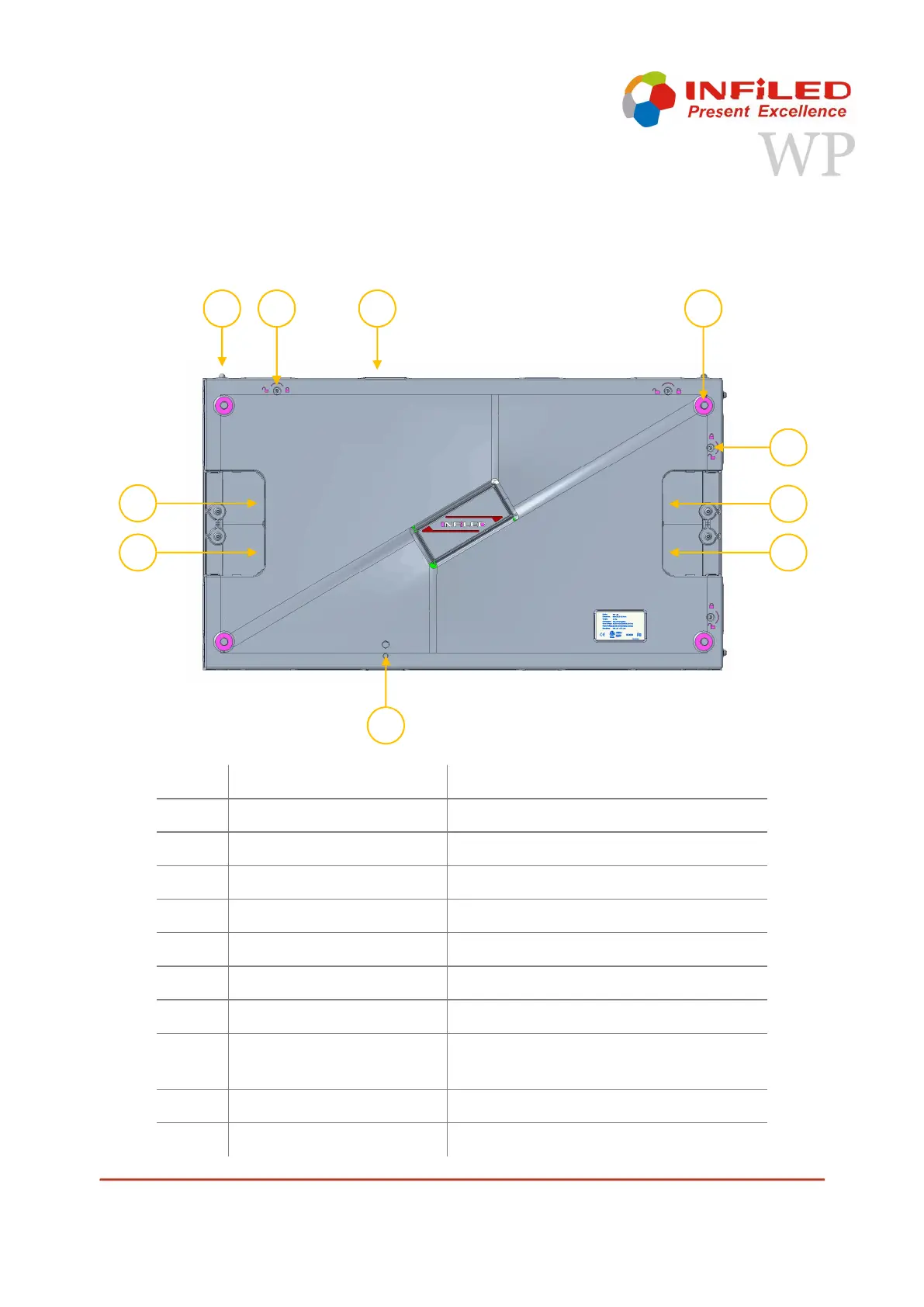

1.3 External Components
2019
INFiLED Wallpaper User’s manual
Pos. Name Note
1 Position pin Easy cabinet alignment
2 Vertical “Rolling”- Lock Mechanical connection to upper panel
3 Cable-free power socket Recessed power socket
4 Hanging pin Hanging point for fixed installation (4x)
5 Horizontal “Fast”- Lock Mechanical connection to lateral panel
6 Data socket Socket for data input
7 Power socket Socket for power supply
8
Cable-free power
connection
Recessed plug for power interlink
9 Power connection Additional power socket
10 Data connection Socket for data interlink
1 2 3 4
5
6
7
8
9
10
