XENSIV™ 60GHz BGT60TR13C Radar System on Module MCU4
2 Prerequisites
2.1 Hardware

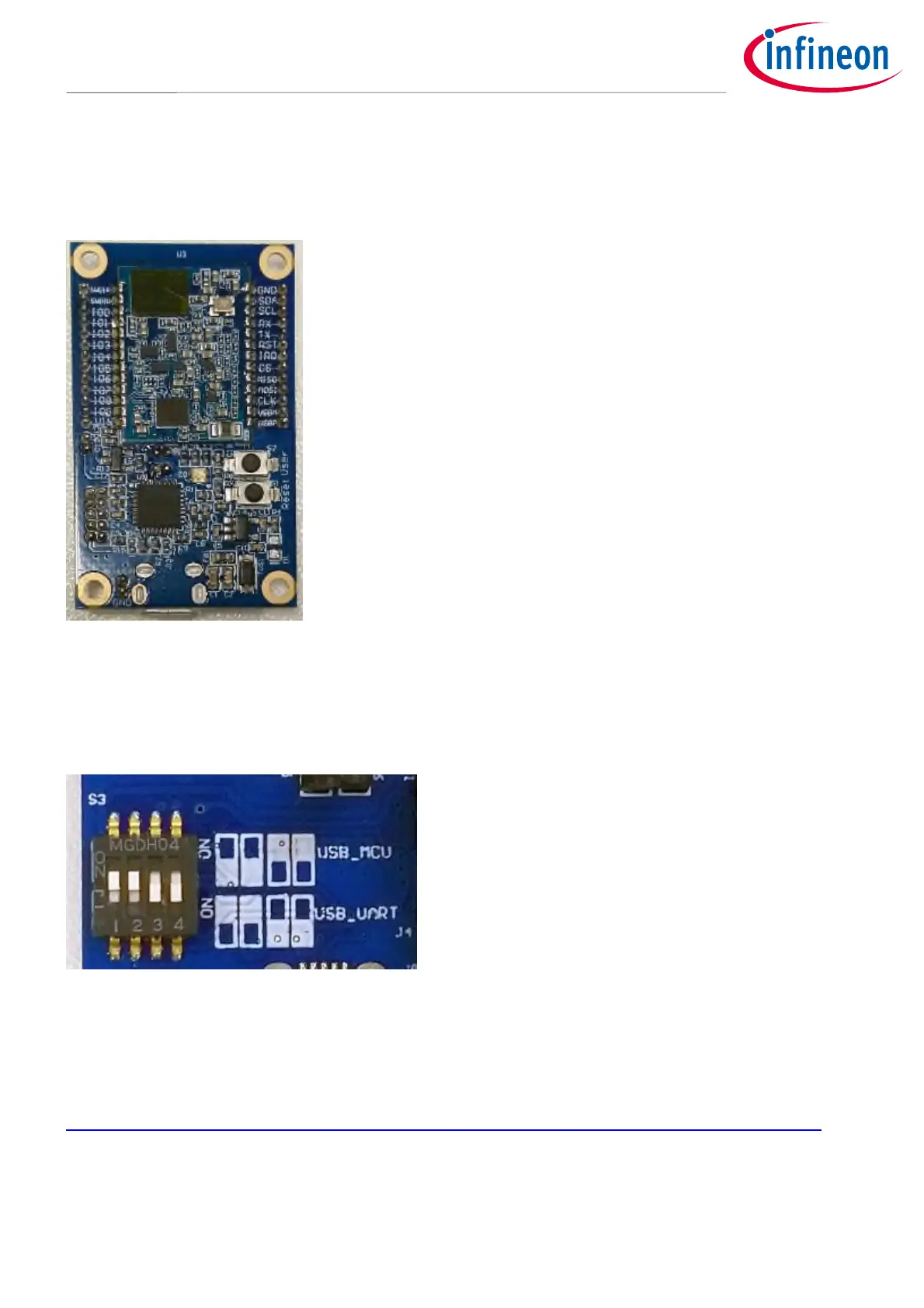

Figure 1 Reference hardware platform – XENSIV™ 60 GHz BGT60TR13C SoM board (mounted on
motherboard for development/evaluation purposes)
The module can be connected with a UART serial interface (baud rate 115200, 8N1) for command
communication. There is a converter chip on the motherboard to convert the UART interface to USB for PC
connection. Set the dip switch as follows to enable USB_UART connection.
Figure 2 USB_UART selection
The user must download and install the driver at the following link to ensure the USB- to- UART converter chip
can work at on a PC.
https://www.cypress.com/documentation/software-and-drivers/microsoft-certified-usb-uart-driver
