Using Infineon’s radar baseboard XMC4700 and BGT24LTR11 radar
shield with Arduino
Set-up guide
Introduction
1 Introduction
The radar baseboard XMC4700, which is part of Infineon’s 24 GHz radar system platform, is designed with
headers compatible with Arduino (Figure 1) to ease prototyping works and integration with other Arduino
shields in the market to form a compelling application.

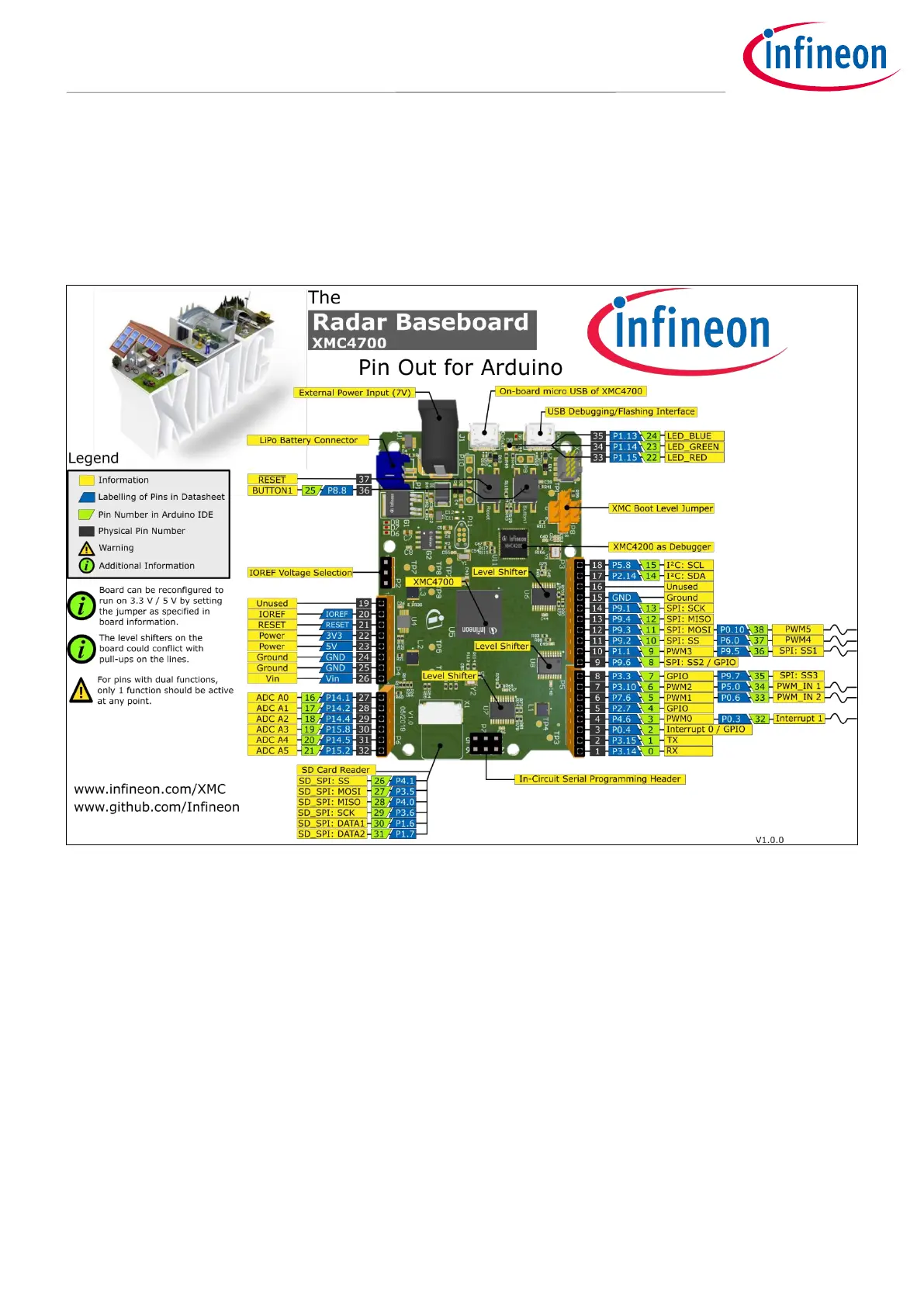

Figure 1 Radar baseboard XMC4700
Currently the 24 GHz radar system platform also offers a BGT24LTR11 radar shield (Figure 2), which is suitable
for various applications such as motion detection, presence sensing and proximity sensing.
