24 GHz radar tools and development environment
XENSIV™ 24 GHz radar demo boards
2 Running radar applications

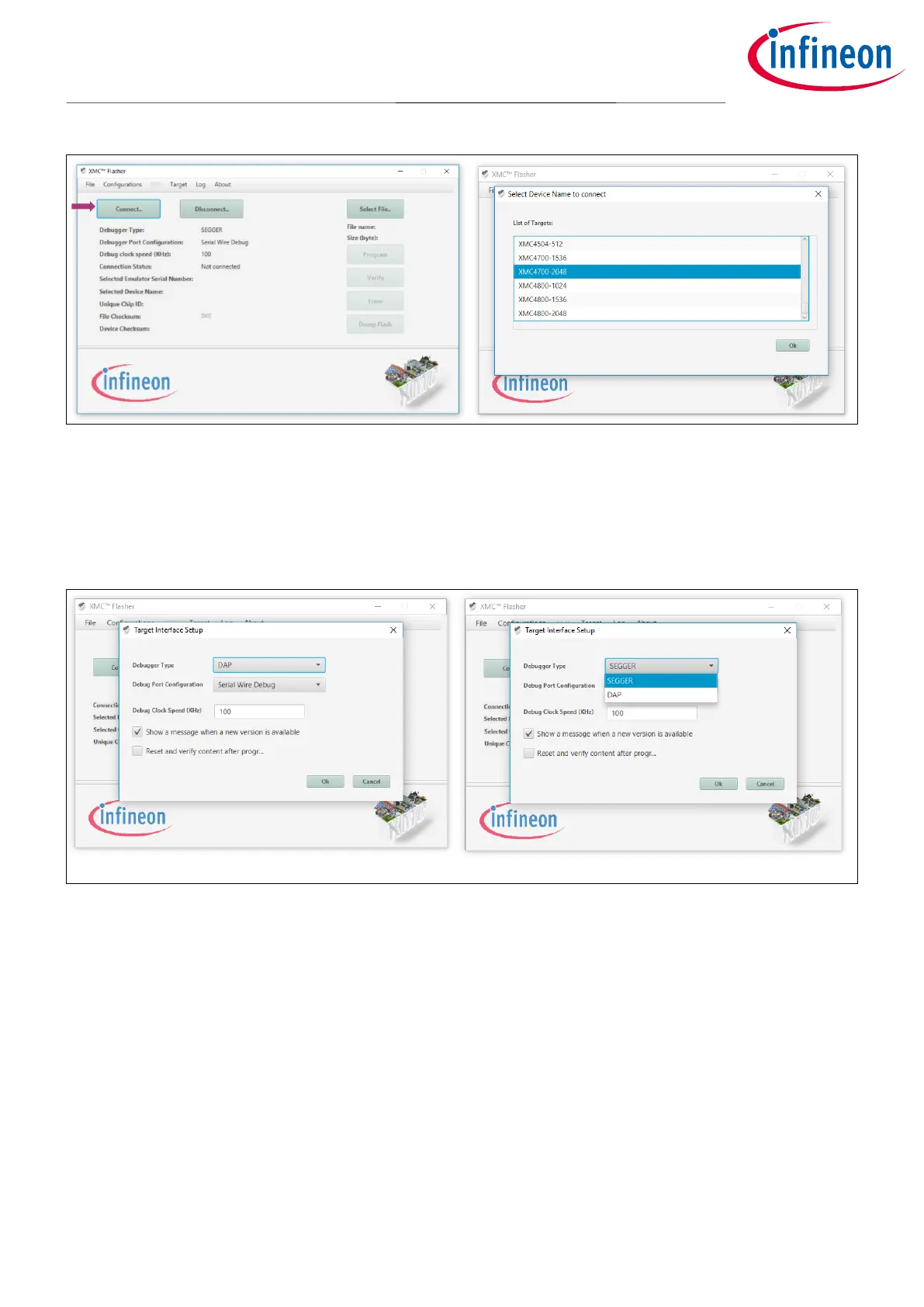

Figure 7 XMC™ Flasher device selection and connection
Note: Please ensure that SEGGER J-Link drivers are installed before using the XMC™ Flasher tool.
Otherwise, the default debugger type under XMC™ Flasher Target Interface Setup will be set to
DAP, as shown in Figure 8a. Once installed, the user must change the debugger type to SEGGER, as
shown in Figure 8b.
Figure 8 Change debugger type
− If the connection is established successfully, Connection Status turns to Connected. The Unique Chip ID
is displayed as well.
− After connection is established, select the (*.hex) file by clicking on the Select File… button.
