3.Installation steps
**Step 1: Open the packing box, take out the materials and lay the main frame flat on the ground.
**Warning:** When lifting the machine from the packaging, it is recommended that more than two
people do this to avoid accidents.

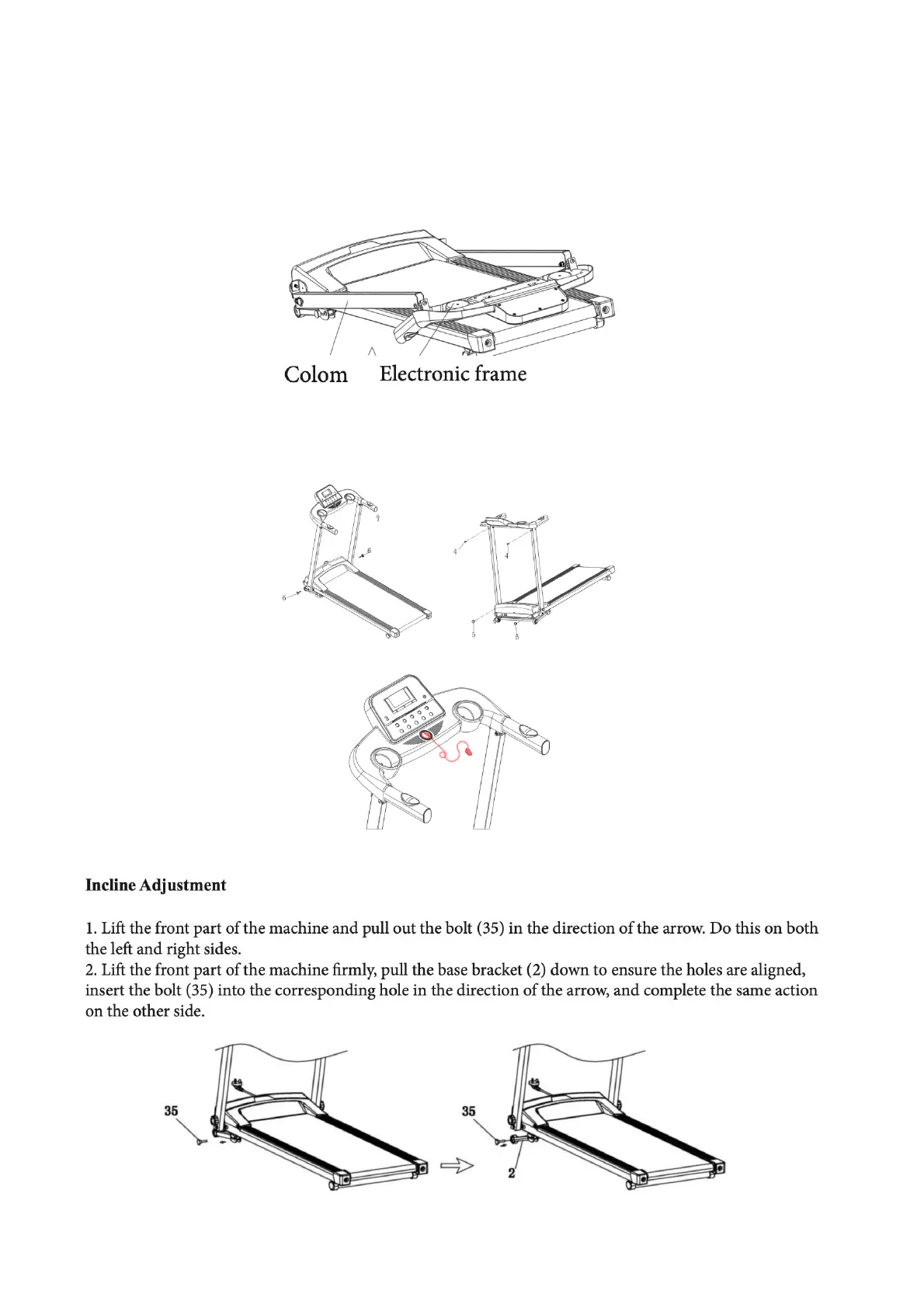

Step 2:As shown in the picture, lift the left and right columns according to the direction of the arrow and fix and lock
both sides with the large bolts (6). Then turn clockwise (2) to tighten (4) of the electronic frame and finally lock the
front ends of the lower left and right columns with (5). After installation, check that all components are completely
and correctly installed.
Step 3:** Plug in the plug and place (3) to start the treadmill as shown in the figure.
