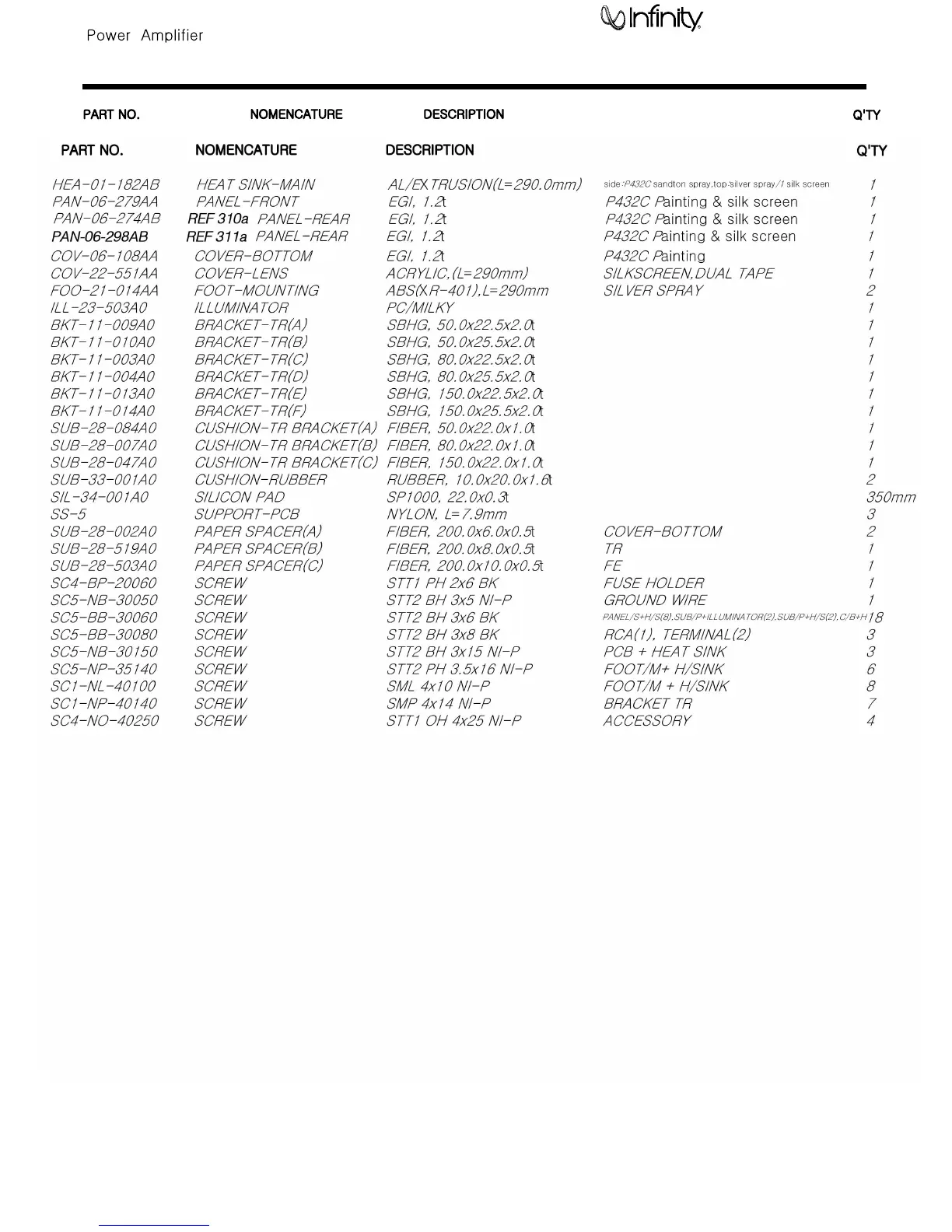

Infinity 310a - Mechanical Parts List

HEA-01-182AB HEAT SINK-MAIN AL/EXTRUSION(L=290.0mm)
side:P432C sandton spray,top:silver spray/1 silk screen
1
PAN-06-279AA PANEL-FRONT EGI, 1.2t P432C Painting & silk screen 1
PAN-06-274AB PANEL-REAR EGI, 1.2t P432C Painting & silk screen 1
COV-06-108AA COVER-BOTTOM EGI, 1.2t P432C Painting 1
COV-22-551AA COVER-LENS ACRYLIC,(L=290mm) SILKSCREEN,DUAL TAPE 1
FOO-21-014AA FOOT-MOUNTING ABS(XR-401),L=290mm SILVER SPRAY 2
ILL-23-503A0 ILLUMINATOR PC/MILKY 1
BKT-11-009A0 BRACKET-TR(A) SBHG, 50.0x22.5x2.0t 1
BKT-11-010A0 BRACKET-TR(B) SBHG, 50.0x25.5x2.0t 1
BKT-11-003A0 BRACKET-TR(C) SBHG, 80.0x22.5x2.0t 1
BKT-11-004A0 BRACKET-TR(D) SBHG, 80.0x25.5x2.0t 1
BKT-11-013A0 BRACKET-TR(E) SBHG, 150.0x22.5x2.0t 1
BKT-11-014A0 BRACKET-TR(F) SBHG, 150.0x25.5x2.0t 1
SUB-28-084A0 CUSHION-TR BRACKET(A) FIBER, 50.0x22.0x1.0t 1
SUB-28-007A0 CUSHION-TR BRACKET(B) FIBER, 80.0x22.0x1.0t 1
SUB-28-047A0 CUSHION-TR BRACKET(C) FIBER, 150.0x22.0x1.0t 1
SUB-33-001A0 CUSHION-RUBBER RUBBER, 10.0x20.0x1.6t 2
SIL-34-001A0 SILICON PAD SP1000, 22.0x0.3t 350mm
SS-5 SUPPORT-PCB NYLON, L=7.9mm 3
SUB-28-002A0 PAPER SPACER(A)
FIBER, 200.0x6.0x0.5t
COVER-BOTTOM 2
SUB-28-519A0 PAPER SPACER(B)
FIBER, 200.0x8.0x0.5t
TR 1
SUB-28-503A0 PAPER SPACER(C) FIBER, 200.0x10.0x0.5t FE 1
SC4-BP-20060 SCREW STT1 PH 2x6 BK FUSE HOLDER 1
SC5-NB-30050 SCREW STT2 BH 3x5 NI-P GROUND WIRE 1
SC5-BB-30060 SCREW STT2 BH 3x6 BK
PANEL/S+H/S(8),SUB/P+ILLUMINATOR(2),SUB/P+H/S(2),C/B+H
18
SC5-BB-30080 SCREW STT2 BH 3x8 BK RCA(1), TERMINAL(2) 3
SC5-NB-30150 SCREW STT2 BH 3x15 NI-P PCB + HEAT SINK 3
SC5-NP-35140 SCREW STT2 PH 3.5x16 NI-P FOOT/M+ H/SINK 6
SC1-NL-40100 SCREW SML 4x10 NI-P FOOT/M + H/SINK 8
SC1-NP-40140 SCREW SMP 4x14 NI-P BRACKET TR 7
SC4-NO-40250 SCREW STT1 OH 4x25 NI-P ACCESSORY 4
POL-31-044A0 POLY BAG(A) VINYL, 450.0x400.0x0.1t
SET
1
POL-31-007A0 POLY BAG(B) VINYL, 160.0x280.0x0.03t
MANUAL
1
POL-31-008A0 POLY BAG(C) VINYL, 80.0x100.0x0.03t ACCESSORY 1
INN-42-010A0 SNOW PAD EPS, 363.0x160.0x128.0 2
BOX-36-150AB BOX-GIFT SW#1(B), 440.0x368.0x133.0 1
BOX-39-161AA
MAN-01-0197A
BOX-CARTON DW#2, 455.0x286.0X393.0 1/2
MANUAL ART PAPER 1
SUB-00-001A0 SILICAGEL 3g 1
SUB-00-002A0 SCOTCH TAPE WIDTH 20mm 20cm
SUB-00-026A0 OPP TAPE WHITE 2.8m
CAR-WA-0038A WARRANTY CARD ART PAPER
1
LAB-MD-0001A STICKER WHITE/BLACK
1
LAB-QC-0001A QC STICKER GOLD/BLACK
1
LAB-CE-0004A CE STICKER BLACK/WHITE
1
LAB-00-0427A WINDOW STICKER "INFINITY" LOGO
1
LAB-SR-0065A SERIAL NO STICKER WHITE/BLACK "CODE 39" -> G/BOX, C/BOX
2
LAB-SR-0066A SERIAL NO STICKER WHITE/BLACK PANEL, H/SINK
2
LAB-00-0426A E-MARK STICKER WHITE/BLACK
1
CAR-00-0061A QUICK START GUIDE ART PAPER
1
10
Reference 310a/311a
Mechanical Parts List
