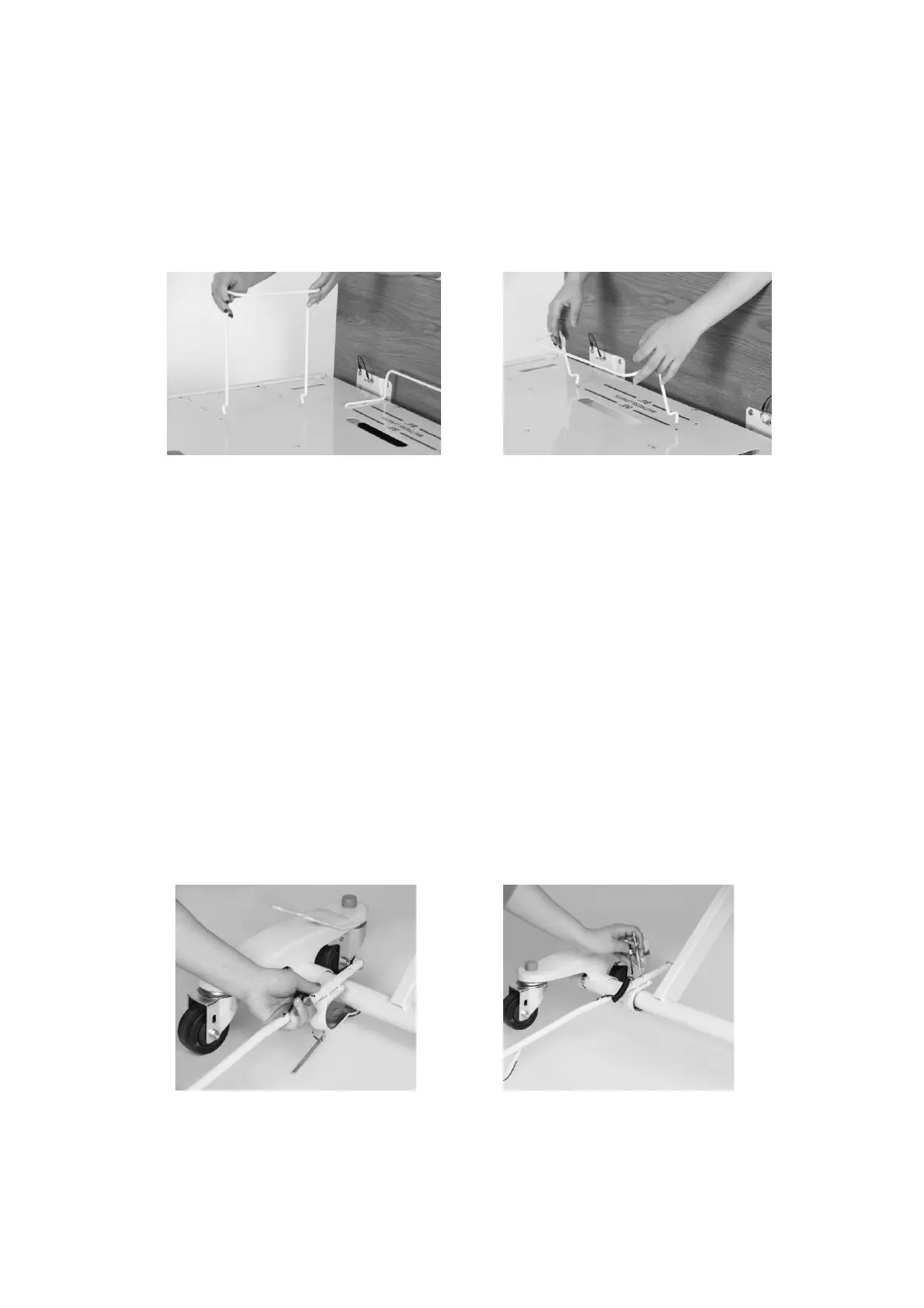

Installing the mattress retaining system
1. Locate the mounting holes for the mattress retainers in the bed deck. Align and
insert the mattress retaining wires through the pre-cast holes.
2. Repeat the procedure for all four side mattress retainers.
3. Insert the bed end mattress retainer in the foot side of the bed deck through the
precast holes.
4. Ensure that all mattress retainers are flat against the bed deck.
Certain bed models have multiple sets of holes for various bed widths and lengths.
Adjust the mounting position accordingly for different sized mattresses. The mounting
holes are labeled with the corresponding size. Ensure the mattress fits snugly within
the mattress retainers.
Installing the wall bumper bar
1. Clip the wall bumper bar assembly on to the caster support shaft at the head end
of the bed. Ensure the bumper bar foot stand is facing the floor.
2. Slide the bar to adjust the length. Insert the pin through the bar through the holes
on the bar to fix the length and lock the assembly in place.
