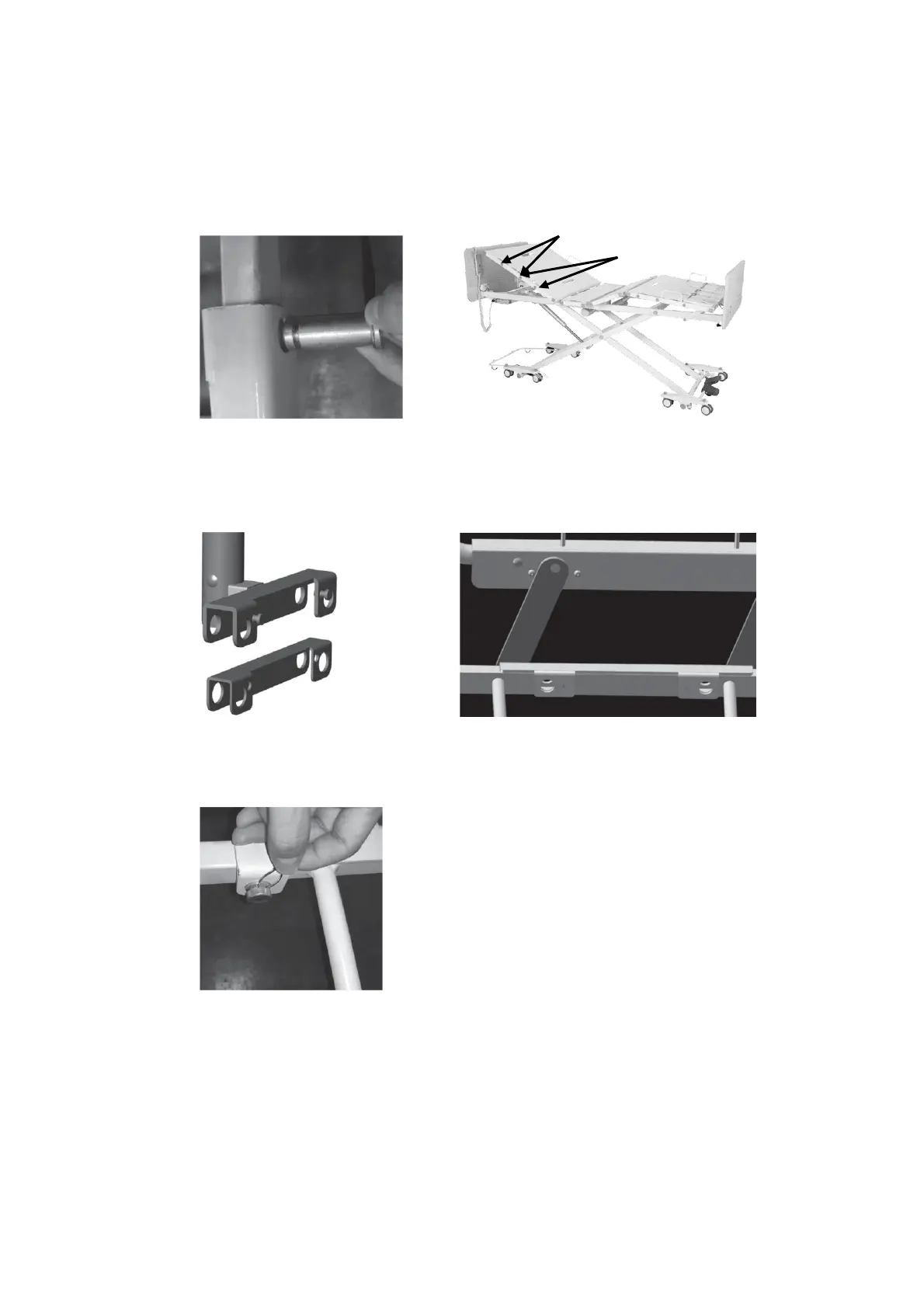

Installing the rails or assist bars
1. Before installing the rails or bars, the bed should be in a flat position.
2. Unclip the metal snap ring and remove the metal pins from the mounting
brackets.
3. Remove cover for the appropriate holes.
4. Slide the U-shaped insert into the assist bar bracket. Place the rail bracket onto
the edge of the bed decking. Align the rail bracket mounting holes with the bed
deck mounting holes.
5. Re-insert the metal pins from the outside edge of the bed through the mounting
holes and secure with snap rings on the inside edge of the bed. Make sure the
snap rings are positioned in the groove of the metal pins.
6. If the bed rail or bar has additional Allen screws, tighten the Allen screws next to
the metal pins.
7. Repeat the same procedure to install the other rail.
