Infinity Compositions Series User Manual

Overture 1
27

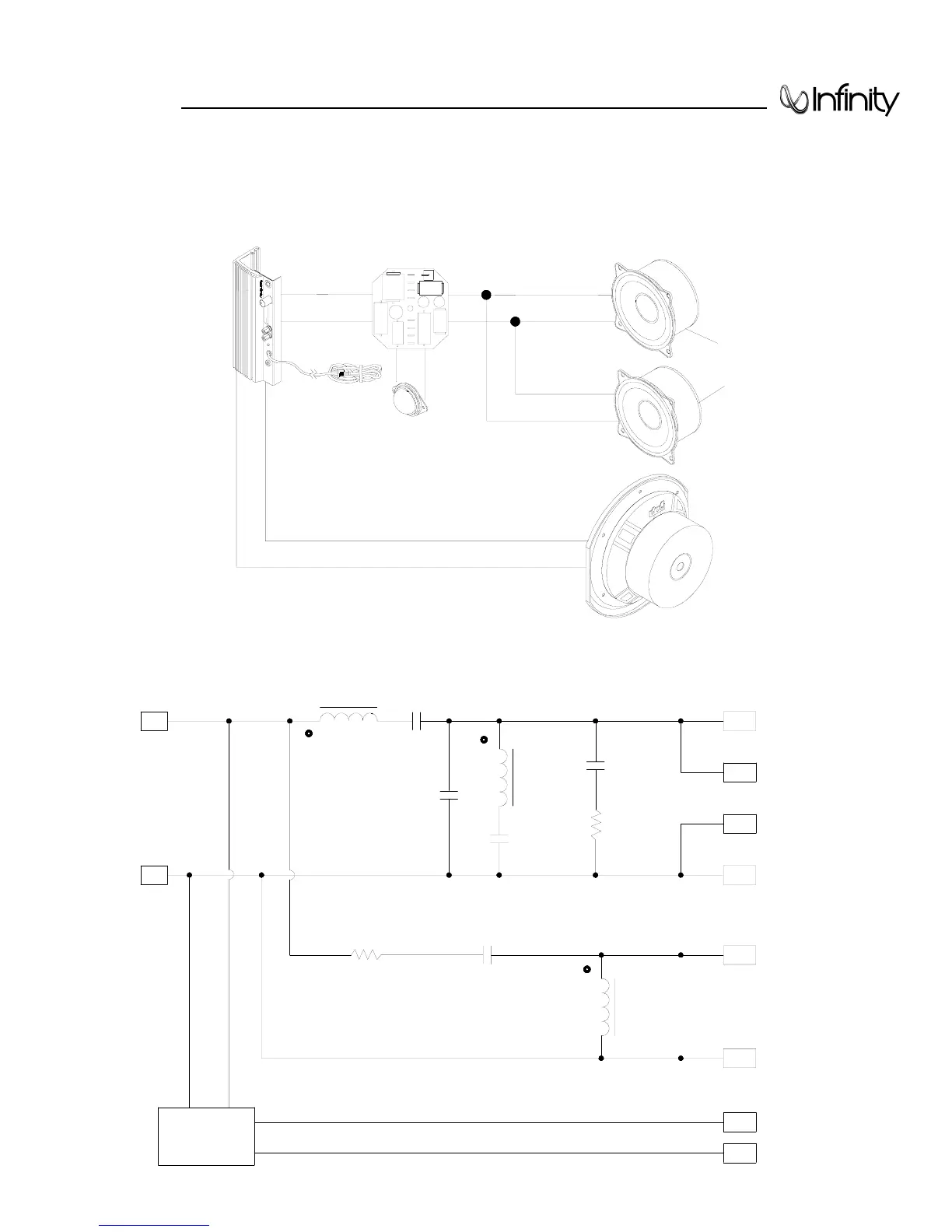

Wiring Diagram/Crossover Network Schematic
-IN
+IN
-MF
+MF
.250
.205
.205
.250
-HF
+HF
205
PCB
PCB
250
.250
.205
+MF
-MF
PCB
PCB
PCB
PCB
PCB
PCB
L1
0.51 mH
C1
120 uF
50V
C2
10 uF
100V
L2
4.5 mH
C3
150 uF
50V
C4
16 uF
100V
R1
5.6 ohms
5W
C5
4.7 uF
50V
L3
0.1 mH
R2
2 ohms
5W
00402
AMPLIFIER
.250
-LF
.205
+LF
YEL
YEL/BLK
NETWORK,
120V(331211-001)
240V (333580-001)
MIDRANGE
TRANSDUCERS (2)
(330638-001)
WOOFER,
120V (331663-001)
230V (333385-001)
TWEETER
(333232-001)
+
YEL/BLK
+
YEL
-
AMPLIFIER
GRN/BLK
GRN
-
GRN/BLK
+GRN
-
GRN/BLK
GRN
BLU/BLK
BLU
CROSSOVER NETWORK
SCHEMATIC
WIRING DIAGRAM
